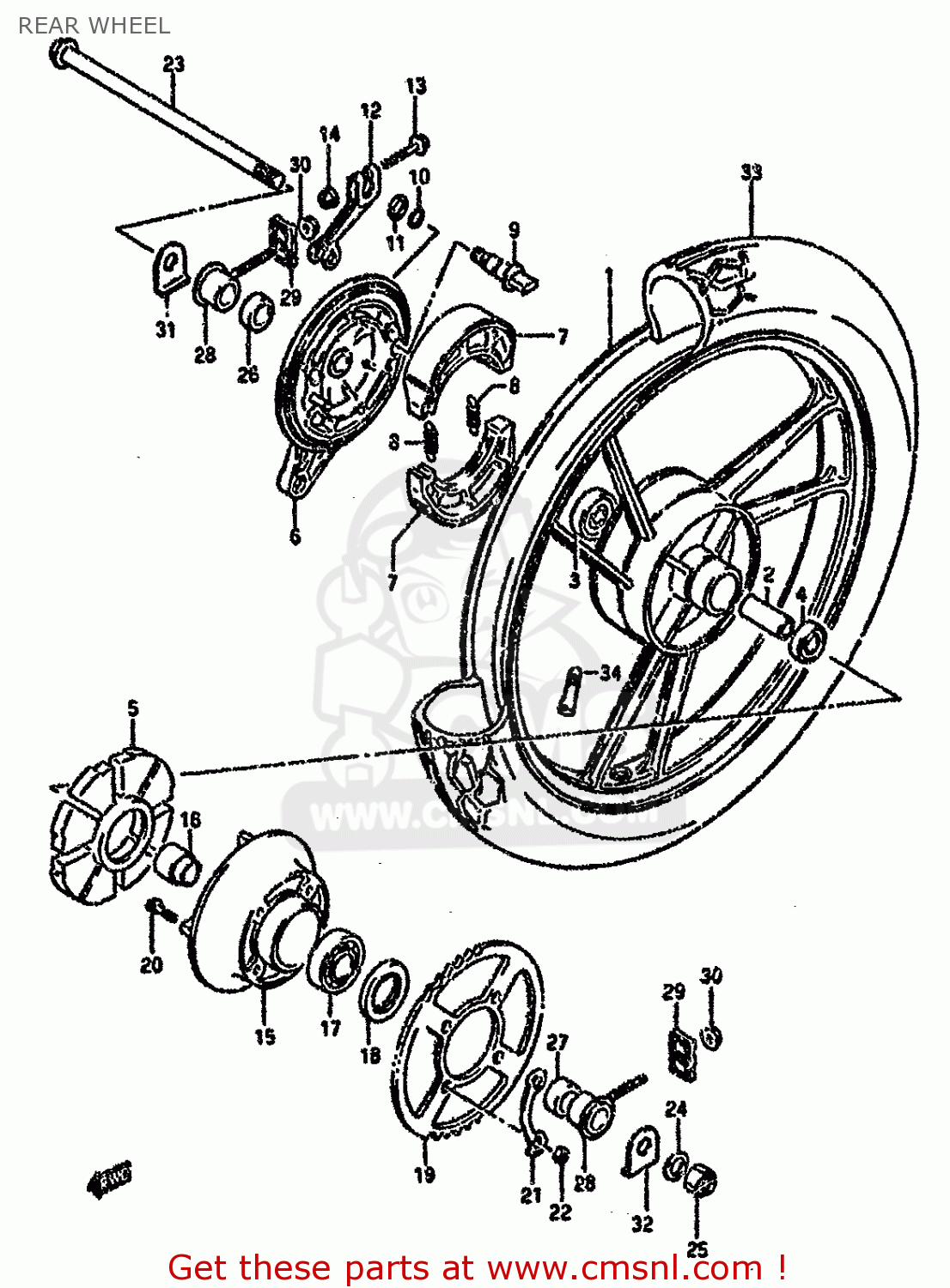

REAR WHEEL

ref

part #

description

quantity

1-1

6415036A01291
ref: 1-1
MODEL F

WHEEL, REAR, MT1.85*18 (BLACK)

€ 443.50

1-2

6415036A0128W
ref: 1-2
MODEL H/J MODEL M,FO

WHEEL, REAR, MT1.85*18 (WHITE)

€ 443.50

1-3

6415036A0112Z
ref: 1-3
MODEL M,FOR 3HZ,AG3,

WHEEL, REAR, MT1.85*18 (SILVER)

€ 281.00

2

0918015011
ref: 2

SPACER(15.3X21.7X63)

€ 7.50

3

0814463027
ref: 3

BEARING

€ 17.50

4

0814362027
ref: 4

BEARING

€ 12.50

5

6465138300
ref: 5

ABSORBER,RR HUB SHOCK

€ 20.00

6

6421039103
ref: 6

PANEL,REAR BRAKE ANCHOR

€ 165.50

7-1

5441037400
ref: 7-1
MODEL F/H E4-54400-3

SHOE,BRAKE (MCA)

€ 26.00

7-2

5441037410
ref: 7-2
MODEL J/M E4-54400-3

SHOE,BRAKE

€ 38.50

7-3

5441007003
ref: 7-3
MODEL F/H/J E22 MODE

SHOE,BRAKE

€ 35.00

7-4

5441037410
ref: 7-4
MODEL M E22 F.NO.108

SHOE,BRAKE

€ 38.50

8

0944307001
ref: 8

SPRING(L:34)

€ 2.50

9

5444129304
ref: 9

CAM,FRONT BRAKE

€ 13.00

10

0928014003
ref: 10

O-RING (D:2.4 ID:13.8)

€ 3.50

11

0916014001
ref: 11

WASHER (14.5X22X1.6)

€ 2.50

12

6445138210
ref: 12

CAM,LEVER

€ 32.50

13

0151706358
ref: 13

BOLT 6X35

€ 2.50

14

0915906017
ref: 14

NUT

€ 2.50

15

6461107000
ref: 15

DRUM,RR SPROCKET

€ 47.00

16

6473339100
ref: 16

RETAINER,RR SPROCKET MTG

€ 17.00

17

0926220069
ref: 17

BEARING(20X47X14)

€ 28.00

18

0928528001
ref: 18

SEAL,OIL(28X47X7)

€ 11.50

19-1

6451136010
ref: 19-1
E4

SPROCKET,REAR (NT:48)

€ 47.50

19-2

6451136700
ref: 19-2
E22

SPROCKET,REAR (NT:49)

€ 51.50

20-1

0911908052
ref: 20-1
E4

BOLT

€ 5.00

20-2

6454103500
ref: 20-2
E22

BOLT,RR SPROCKET

€ 3.50

20-3

0911908052
ref: 20-3
E22

BOLT

€ 5.00

21

0916908012
ref: 21

WASHER

€ 2.00

22

0831012088
ref: 22

NUT

€ 2.00

23

6471136A01
ref: 23

AXLE, REAR

€ 40.00

24

0832211148
ref: 24

WASHER

€ 2.00

25

0915914008
ref: 25

NUT

€ 5.00

26

6474136A01
ref: 26

SPACER,RR AXLE,R

€ 8.00

27

6475136A01
ref: 27

SPACER,RR AXLE,L

€ 8.00

28

6141036A00
ref: 28

ADJUSTER,CHAIN

€ 14.00

29

6142136A00
ref: 29

PLATE,CHAIN ADJUSTER GUIDE

€ 9.00

30

0831931086
ref: 30

NUT

€ 2.50

31

6471236A10
ref: 31

WASHER,CHAIN ADJUSTER,R

€ 3.50

32

6471236A00
ref: 32

WASHER,CHAIN ADJUSTER,R

€ 3.00

33

6510036A00
ref: 33

TIRE, T/L REAR (90/90-18 51P)

€ 0.00

34-1

4313075150
ref: 34-1
MODEL F/H/J MODEL M~

VALVE,TIRE

€ 14.50

34-2

4313024A11
ref: 34-2
MODEL M F.NO.106387~

VALVE ASSEMBLY,WHEEL,TR412

€ 7.00
