EXHAUST VALVE

RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

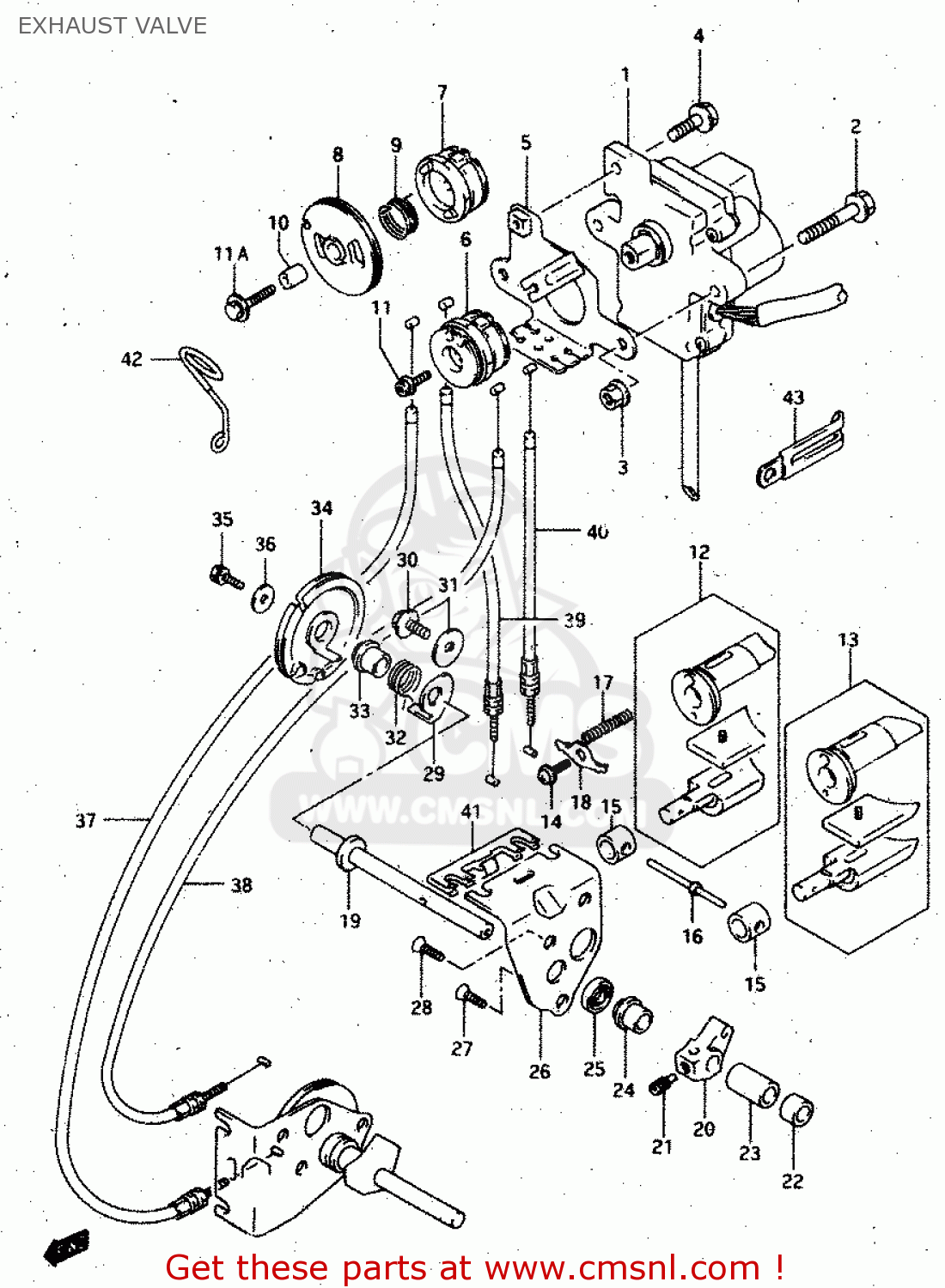

Exhaust valve diagram RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

EXHAUST VALVE RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)
EXHAUST VALVE RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)
EXHAUST VALVE RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
3397022X50
ref: 1
ACTUATOR ASSY
3397022X50
€ 373.00
2
0155006303
ref: 2
BOLT
0155006303
€ 2.50
3
0831610063
ref: 3
NUT
0831610063
€ 2.50
4
0154706163
ref: 4
BOLT
0154706163
€ 2.50
5
1128612C01
ref: 5
MODEL M
BRACKET, CABLE
€ 19.50
5
1128622D10
ref: 5
MODEL N/P/R/T
BRACKET,CABLE
€ 26.00
6
1126912C02
ref: 6
MODEL M
PULLEY, CONTROLLER
1126912C02
€ 20.00
7
1126922D00
ref: 7
MODEL N/P/R/T
PULLEY,CONTROLLER
1126922D00
€ 34.00
8
1661122D10
ref: 8
MODEL N/P/R/T
PULLEY,CONTROLLER NO.2
1661122D10
€ 48.00
9
1661322D00
ref: 9
MODEL N/P/R/T
SPRING
1661322D00
€ 7.50
10
0918005043
ref: 10
MODEL N/P/R/T
SPACER
€ 7.00
11
0712005168
ref: 11
MODEL M
BOLT
€ 1.50
11A
0911805004
ref: 11A
MODEL N/P/R/T
BOLT(5X30)
0911805004
€ 3.00
12
1125019810
ref: 12
MODEL M/N/P
VALVE SET,EXHAUST,R
1125019810
€ 234.50
12
1125019830
ref: 12
MODEL M/N/P E22
VALVE SET,EXHAUST,R
1125019830
€ 182.50
12
1120619D31
ref: 12
MODEL R/T
VALVE ASSY,EXHAUST,R
€ 228.50
13
1125019820
ref: 13
MODEL M/N/P
VALVE SET,EXHAUST,L
1125019820
€ 233.50
13
1125019840
ref: 13
MODEL M/N/P E22
VALVE SET,EXHAUST,L
1125019840
€ 173.50
13
1120719D31
ref: 13
MODEL R/T
VALVE ASSY,EXHAUST,L
€ 182.50
14
0214215127
ref: 14
MODEL M/N/P
SCREW
0214215127
€ 1.50
14
0214205123
ref: 14
MODEL R/T
SCREW 5X12
0214205123
€ 1.50
15
1126312C01
ref: 15
MODEL M/N/P
SPACER,EXHAUST VALVE
1126312C01
€ 29.50
15
1126308D11
ref: 15
MODEL R/T
SPACER,EXHAUST VALVE
1126308D11
€ 13.00
16
1125301B31
ref: 16
PIN,EXHAUST VALVE 48.5MM
1125301B31
€ 20.50
17
0944003010
ref: 17
SPRING
0944003010
€ 4.00
18
1127422D01
ref: 18
RETAINER,EXHAUST VALVE SPRING
1127422D01
€ 8.50
19
1125812C02
ref: 19
SHAFT,EXHAUST VALVE
1125812C02
€ 54.50
20
1126400B23
ref: 20
ARM,EXHAUST VALVE SHAFT
1126400B23
€ 17.00
21
0913406013
ref: 21
SCREW(6X10)
0913406013
€ 4.50
22
0930008016
ref: 22
INCLUDED CYLINDER
BUSH(8X12X7)
0930008016
€ 3.50
23
1128312C00
ref: 23
SPACER,EXHAUST VALVE SHAFT
1128312C00
€ 5.50
24
1126512C00
ref: 24
BUSH,EXHAUST VALVE NO.2
1126512C00
€ 8.50
25
0928208001
ref: 25
MODEL M/N/P
SEAL,OIL(8X16X5)
0928208001
€ 3.00
25
0928208004
ref: 25
MODEL R/T
SEAL,OIL(8X16X5)
0928208004
€ 7.50
26
1125922D01
ref: 26
RETAINER,OIL SEAL
1125922D01
€ 15.50
27
0212206127
ref: 27
MODEL M/N/P
SCREW
0212206127
€ 3.00
27
0212206123
ref: 27
MODEL R/T
SCREW
0212206123
€ 3.00
28
0912606011
ref: 28
SCREW(6X12)
0912606011
€ 2.00
29
1126712C02
ref: 29
LEVER,EXHAUST VALVE
1126712C02
€ 11.50
30
0912506058
ref: 30
SCREW (6X10)
0912506058
€ 5.50
31
0821106222
ref: 31
WASHER
0821106222
€ 2.00
32
1128522D00
ref: 32
SPRING,EXHAUST VALVE LEVER
1128522D00
€ 7.00
33
1126822D03
ref: 33
SPACER,EXHAUST VALVE PULLEY
1126822D03
€ 15.50
34
1126622D01
ref: 34
PULLEY,EXHAUST VALVE
1126622D01
€ 50.50
35
0113705128
ref: 35
MODEL M/N/P
BOLT
€ 2.00
35
0911805005
ref: 35
MODEL R/T
BOLT(5X12)
0911805005
€ 4.00
36
0916005005
ref: 36
WASHER (5.5X24X1.6)
0916005005
€ 2.00
37
1127612C02
ref: 37
L:573
CABLE,EXHAUST VALVE FR,R
1127612C02
€ 17.50
38
1127812C00
ref: 38
L:523
CABLE,EXHAUST VALVE FR,L
1127812C00
€ 17.50
39
1127722D01
ref: 39
L:211
CABLE,EXHAUST VALVE RR,R
1127722D01
€ 10.50
40
1127922D01
ref: 40
L:223
CABLE,EXHAUST VALVE RR,L
1127922D01
€ 12.00
41
1128412C00
ref: 41
STOPPER,CABLE
1128412C00
€ 8.50
42
1127522D01
ref: 42
GUIDE,EXHAUST VALVE CABLE
1127522D01
€ 7.50
43
0940406403
ref: 43
MODEL M
CLAMP
€ 2.50
