MUFFLER

RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

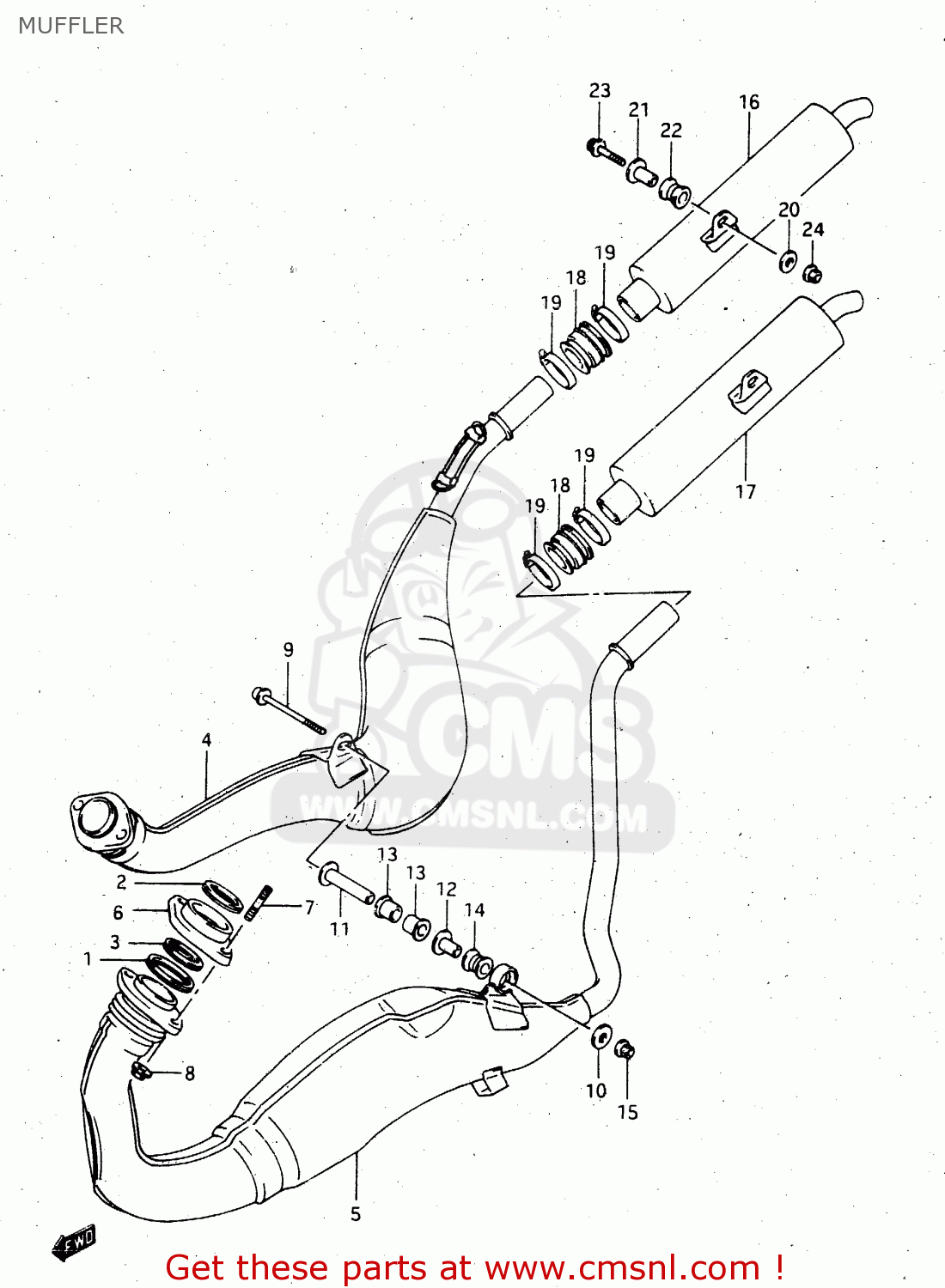

Muffler diagram RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

MUFFLER RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)
MUFFLER RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)
MUFFLER RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
1418113A01
ref: 1
GASKET,EXHAUST PIPE (NAS)
1418113A01
€ 10.00
2
1418101D00
ref: 2
GASKET,EXHAUST PIPE (NAS)
1418101D00
€ 8.00
3
1418122D01
ref: 3
GASKET,EXHAUST PIPE (NAS)
1418122D01
€ 9.00
4
1431022D10
ref: 4
MODEL M
BODY, MUFFLER 1ST RH
€ 611.50
4
1431022D11
ref: 4
MODEL N/P/R/T
BODY, MUFFLER 1ST RH
€ 611.50
4
1431022D20
ref: 4
MODEL M E22
BODY, MUFFLER 1ST RH
€ 0.00
4
1431022D30
ref: 4
MODEL N/P E22
BODY, MUFFLER 1ST RH
€ 0.00
5
1434022D10
ref: 5
MODEL M
BODY, MUFFLER 1ST LH
€ 486.50
5
1434022D11
ref: 5
MODEL N
BODY ,MUFFLER,
€ 486.50
5
1434022D12
ref: 5
MODEL P/R/T
BODY, MUFFLER 1ST LH
€ 486.50
5
1434022D20
ref: 5
MODEL M E22
BODY, MUFFLER 1ST LH
€ 0.00
5
1434022D30
ref: 5
MODEL N E22
BODY, MUFFLER 1ST LH
€ 0.00
5
1434022D31
ref: 5
MODEL P E22
BODY, MUFFLER 1ST LH
€ 0.00
6
1419522D00
ref: 6
FLANGE,EXHAUST FITING
1419522D00
€ 54.50
7
0910808142
ref: 7
BOLT,STUD
0910808142
€ 3.00
8
0831931085
ref: 8
NUT
€ 2.50
9
0910308133
ref: 9
BOLT(8X105)
0910308133
€ 4.50
10
0916008067
ref: 10
MODEL M/N/P
WASHER
€ 2.00
10
0916008085
ref: 10
MODEL R/T
WASHER (8.2X26X1.6)
€ 2.00
11
1447022D00
ref: 11
SPACER,SUPPORT
1447022D00
€ 7.50
12
0918008151
ref: 12
SPACER(8.6X12X17.5)
0918008151
€ 6.00
13
0932012021
ref: 13
CUSHION
0932012021
€ 3.50
14
0932012043
ref: 14
MODEL N/M/P/R
CUSHION
0932012043
€ 8.00
14
0932012033
ref: 14
MODEL T
CUSHION
0932012033
€ 52.00
15
0831931085
ref: 15
NUT
€ 2.50
16
1433022D00
ref: 16
MODEL M
BODY, MUFFLER 2ND UPPER
€ 262.00
16
1433022D10
ref: 16
MODEL M E2, E4, E21,
BODY, MUFFLER 2ND UPPER
€ 208.50
16
1433022D12
ref: 16
MODEL N/P/R/T
BODY, MUFFLER 2ND UPPER
€ 208.50
16
1433022D21
ref: 16
E22
BODY, MUFFLER 2ND UPPER
€ 0.00
17
1435022D00
ref: 17
MODEL M
BODY, MUFFLER 2ND LOWER
€ 0.00
17
1435022D10
ref: 17
MODEL M E2, E4, E21,
BODY, MUFFLER 2ND LOWER
1435022D10
€ 261.50
17
1435022D12
ref: 17
MODEL N/P/R/T
BODY, MUFFLER 2ND LOWER
€ 261.50
17
1435022D21
ref: 17
E22
BODY, MUFFLER 2ND LOWER
€ 0.00
18
1477103D00
ref: 18
CONNECTOR,2ND MUFFLER
1477103D00
€ 26.00
19
0940246511
ref: 19
CLAMP
0940246511
€ 6.50
20
0916008067
ref: 20
MODEL M/N/P
WASHER
€ 2.00
20
0916008085
ref: 20
MODEL R/T
WASHER (8.2X26X1.6)
€ 2.00
21
0918008151
ref: 21
SPACER(8.6X12X17.5)
0918008151
€ 6.00
22
0932012043
ref: 22
MODEL M/N/P/R
CUSHION
0932012043
€ 8.00
22
0932012033
ref: 22
MODEL T
CUSHION
0932012033
€ 52.00
23
0712008357
ref: 23
BOLT
0712008357
€ 3.50
24
0831931085
ref: 24
NUT
€ 2.50
