FUEL TANK (MODEL M)

RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

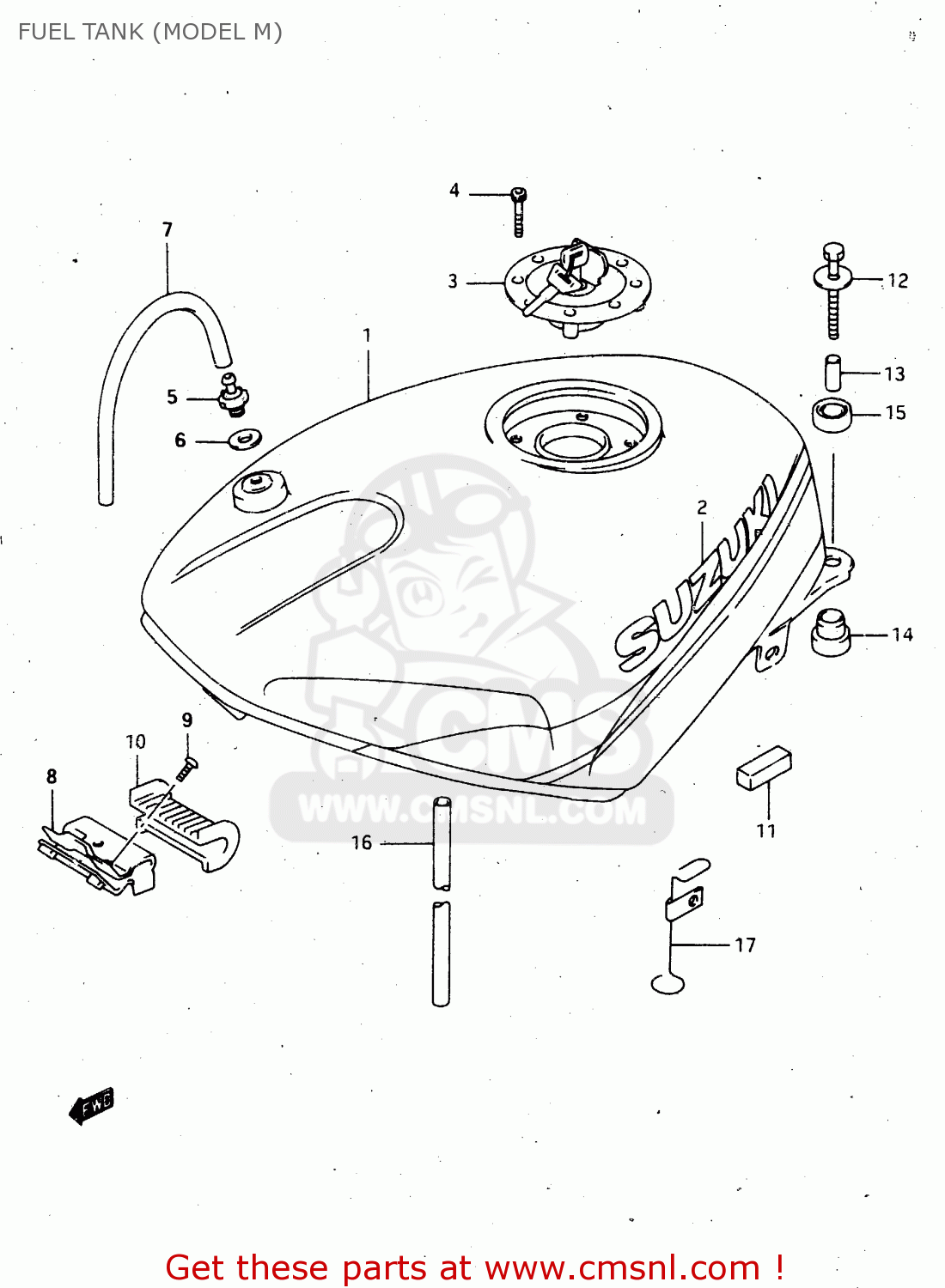

Fuel tank (model m) diagram RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

FUEL TANK (MODEL M) RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

FUEL TANK (MODEL M) RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

4410022D0033J
ref: 1

TANK ASSY, FUEL (BLACK)

€ 543.00

1

4410022D003SH
ref: 1

TANK ASSY, FUEL

€ 963.50

1

4410022D2033J
ref: 1
E22

TANK ASSY, FUEL (BLACK)

€ 543.00

1

4410022D203SH
ref: 1
E22

TANK ASSY, FUEL

€ 963.50

2

68111434000FP
ref: 2
FOR 33J

EMBLEM (SILVER)

€ 7.50

2

68111434000JW
ref: 2
FOR 3SH

EMBLEM,FUEL TANK(WHITE)

€ 13.00

3

4420101851
ref: 3

CAP SET,FUEL TANK

€ 166.50

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

4424006B10
ref: 5

PLUG,FUEL TANK BREATHER

€ 36.00

6

0916812012
ref: 6

GASKET(12.5X20X2.5) (NAS)

€ 2.00

7

0935250823600
ref: 7
L:600->240

HOSE(5X8.2X600)

€ 13.00

8

4452132C00
ref: 8

BRACKET,FUEL TANK

€ 10.50

9

0214206167
ref: 9

SCREW

€ 2.00

10

4451132C00
ref: 10

CUSHION,FUEL TANK,FRONT

€ 15.50

11

4454520A00
ref: 11

CUSHION,FUEL TANK SIDE

€ 5.50

12

0155006307
ref: 12

BOLT

€ 2.00

13

0918006072
ref: 13

SPACER

€ 2.00

14

0932010020
ref: 14

CUSHION

€ 4.00

15

0932014013
ref: 15

CUSHION

€ 3.00

16

093525082300B
ref: 16
L:2000->800

HOSE(5X8.2X2000)

€ 13.00

17

4448022D00
ref: 17

GUIDE, DRAIN HOSE

€ 10.00
