SEAT (MODEL M/N/P)

RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

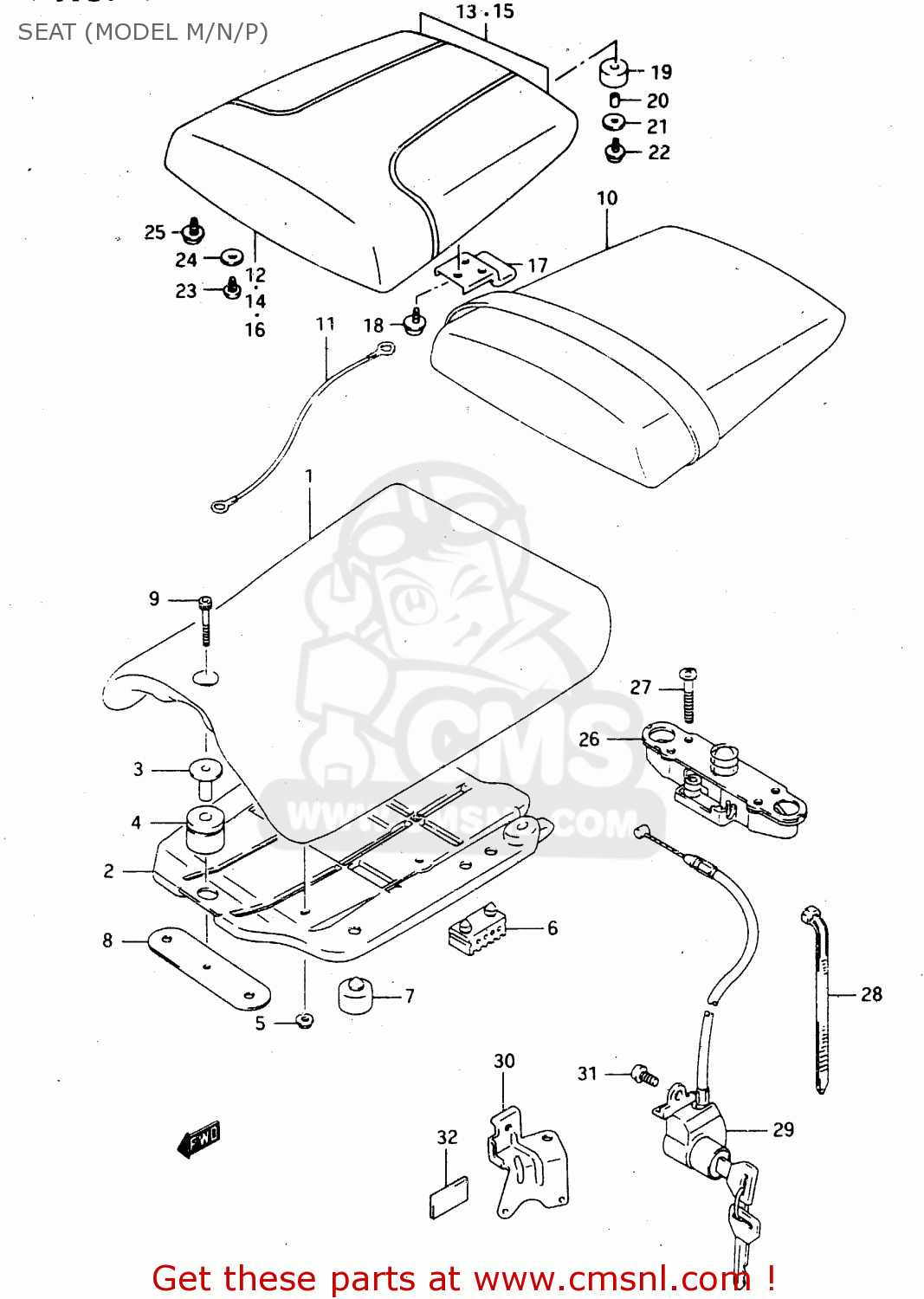

Seat (model m/n/p) diagram RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

SEAT (MODEL M/N/P) RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)
SEAT (MODEL M/N/P) RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)
SEAT (MODEL M/N/P) RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
4510022D0158R
ref: 1
SEAT ASSY
4510022D0158R
€ 247.00
2
4511122D00
ref: 2
FRAME, SEAT BOTTOM
€ 40.50
3
4521922D00
ref: 3
COLLAR,FR
4521922D00
€ 6.00
4
4514922D00
ref: 4
CUSHION,SEAT
4514922D00
€ 5.00
5
0831626046
ref: 5
NUT
€ 2.50
6
4514931300
ref: 6
CUSHION,SEAT(40X20X15)
4514931300
€ 2.00
7
0932110011
ref: 7
CUSHION
0932110011
€ 3.00
8
4511922D00
ref: 8
PLATE,SEAT FR
4511922D00
€ 23.50
9
0910606065
ref: 9
MODEL M
BOLT
€ 3.50
9
0713006355
ref: 9
MODEL N/P
BOLT
€ 3.50
10
4530022D0058R
ref: 10
MODEL M
SEAT ASSY, PILLION (BLACK)
€ 158.50
10
4530033C106BY
ref: 10
MODEL N/P
SEAT ASSY, PILLION (BLACK)
€ 172.50
11
4528012C10
ref: 11
MODEL M
CABLE, PILLION SEAT
€ 10.00
11
4528022D00
ref: 11
MODEL N/P
CABLE,SEAT LOCK
€ 20.50
12
4550022D300JW
ref: 12
MODEL M E22
BOX, SEAT TAIL (WHITE)
€ 227.00
13
6816022D400NE
ref: 13
MODEL M E22
TAPE SET
€ 41.50
14
4550022D0033J
ref: 14
MODEL M E22
BOX, SEAT TAIL (BLACK)
€ 0.00
15
6816022D30M26
ref: 15
MODEL M E22
TAPE SET
€ 36.00
16
4550022D200JW
ref: 16
MODEL N/P E22
BOX, SEAT TAIL (WHITE)
4550022D200JW
€ 208.50
16
4550022D2013Z
ref: 16
MODEL N E22
BOX, SEAT TAIL (BLACK)
€ 208.50
16
4550022D2033J
ref: 16
MODEL P E22
BOX, SEAT TAIL (BLACK)
€ 208.50
17
4556122D00
ref: 17
MODEL P E22
BRACKET
4556122D00
€ 5.50
18
0354115126
ref: 18
MODEL P E22
SCREW
€ 2.50
19
0932006003
ref: 19
MODEL P E22
CUSHION
0932006003
€ 2.00
20
0918004009
ref: 20
MODEL P E22
SPACER (4.5X6.5X5)
€ 0.00
21
0916004018
ref: 21
MODEL P E22
WASHER(4.3X20X1.4)
0916004018
€ 2.00
22
0354114126
ref: 22
MODEL P E22
SCREW
€ 2.00
23
0354105126
ref: 23
MODEL P E22
SCREW
€ 2.00
24
0916005011
ref: 24
MODEL P E22
WASHER (5.5X20X1.2)
€ 2.00
25
0354115126
ref: 25
MODEL P E22
SCREW
€ 2.50
26
4522013601
ref: 26
LOCK ASSY,SEAT STRIKER
4522013601
€ 47.00
27
0211206356
ref: 27
SCREW
€ 2.50
28
0940718403
ref: 28
CLAMP L:165
€ 2.50
29
9570006840
ref: 29
MODEL M
LOCK SET, SEAT
€ 98.50
29
9570012851
ref: 29
MODEL N/P
LOCK SET,SEAT
€ 110.50
30
4528522D10
ref: 30
BRACKET, SEAT LOCK
€ 8.50
31
0913906048
ref: 31
MODEL M/N
SCREW(6X20)
0913906048
€ 2.00
31
0913906064
ref: 31
MODEL P
SCREW
€ 2.50
32
6341135B00
ref: 32
MUD GUARD,REAR FENDER
6341135B00
€ 2.50
