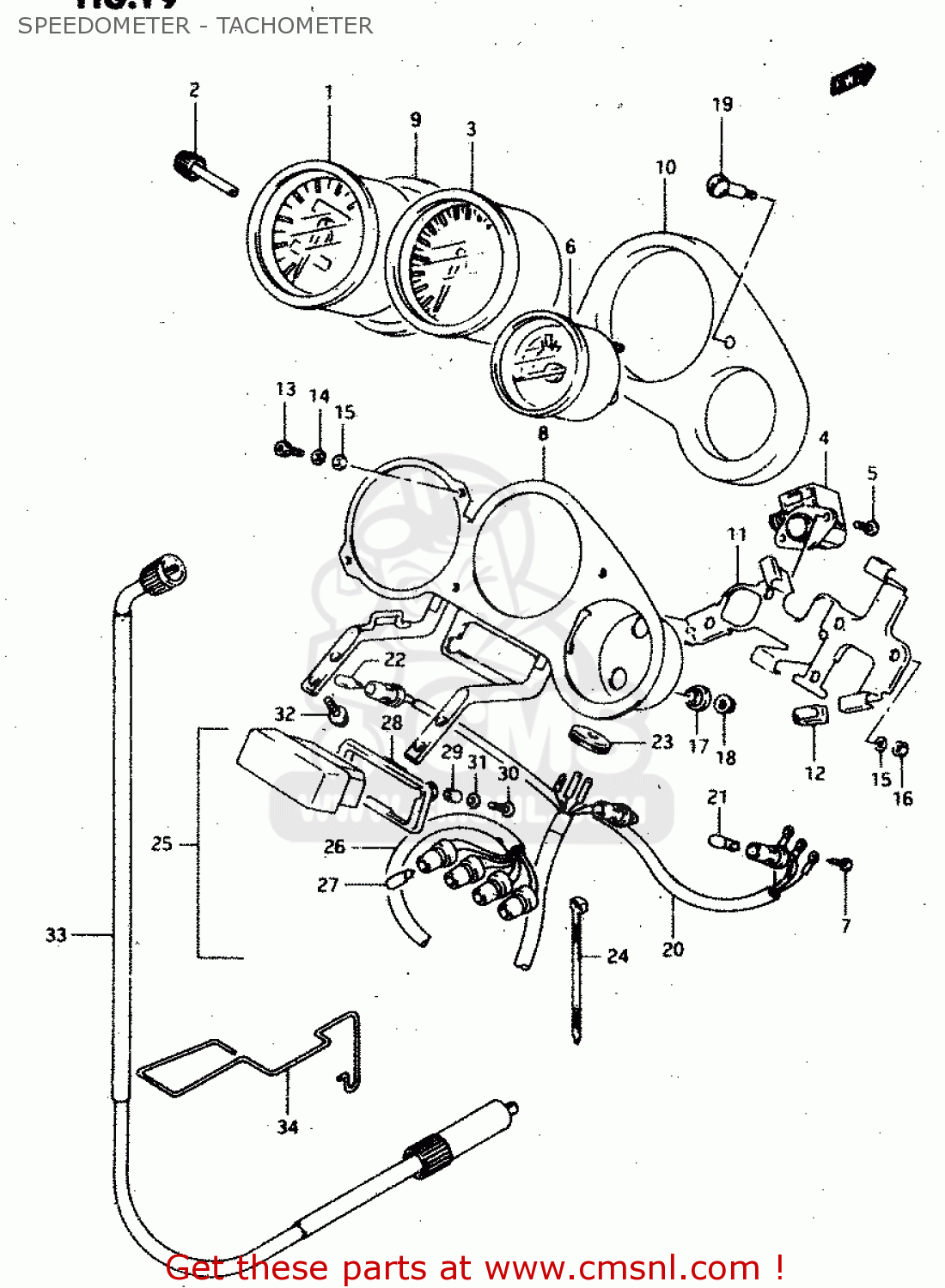

SPEEDOMETER - TACHOMETER - RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

ref

part #

description

quantity

1

3411022D10
ref: 1

SPEEDOMETER (KILO)

€ 293.00

1

3411022D30
ref: 1
E2

SPEEDOMETER (MILE/KILO)

€ 286.00

2

3412427A00
ref: 2

KNOB,TRIP

€ 7.50

3

3421022D01
ref: 3

TACHOMETER

€ 503.50

4

3413127A00
ref: 4

BOX,METER GEAR

€ 116.50

5

0211234103
ref: 5

SCREW

€ 2.00

6

3442012C10
ref: 6

METER, TEMPERATURE

€ 114.00

7

3438327A00
ref: 7

SCREW

€ 2.00

8

3495022D02
ref: 8

BRACKET,SPEEDOMETER

€ 107.50

9

3428822D00
ref: 9

CUSHION,SPEEDOMETER

€ 14.50

10

3425722D00
ref: 10

CUSHION

€ 46.00

11

3411122D00
ref: 11

BRACKET,SPEEDOMETER

€ 28.00

12

3418927A00
ref: 12

CUSHION

€ 6.00

13

3419922D00
ref: 13

SCREW

€ 3.00

14

3418122D00
ref: 14

LOCK WASHER

€ 2.50

15

0832101043
ref: 15
<-34181-27A00

WASHER,LOCK

€ 2.00

16

0831021035
ref: 16

NUT

€ 1.50

17

3418912C10
ref: 17

CUSHION

€ 4.00

18

3418514A00
ref: 18

NUT

€ 5.50

19

3429922D00
ref: 19

SCREW

€ 3.00

20

3417022D00
ref: 20

SOCKET

€ 79.50

21

0947112100
ref: 21

BULB(12V1.7W,WB372,T7)

€ 2.00

22

0947112085
ref: 22

BULB(12V3W,WB371,T7)

€ 3.00

23

3441416700
ref: 23

GROMMET

€ 2.00

24

0940410404
ref: 24
<-34954-16730

CLAMP

€ 2.50

25

3638022D00
ref: 25

BOX ASSY, PILOT LAMP

€ 90.50

25

3638022D10
ref: 25
E4, E21, E22, E24, E

BOX ASSY, PILOT LAMP

€ 93.00

26

3639422D00
ref: 26

SOCKET

€ 58.50

27

0947112118
ref: 27

BULB(13.5V,2W,A7427)

€ 2.00

28

3638222D00
ref: 28

HOLDER, PILOT BOX

€ 7.50

29

0918004017
ref: 29

SPACER(4.5X6.5X9)

€ 2.50

30

0913203008
ref: 30

SCREW(3X16)

€ 1.50

31

0832221045
ref: 31
MODEL M/N/P

WASHER

€ 5.00

31

0832201043
ref: 31
MODEL R/T

WASHER

€ 5.00

32

0151706125
ref: 32
MODEL M/N/P

BOLT 6X12

€ 2.50

32

0155006123
ref: 32
MODEL R/T

BOLT

€ 2.50

33

3491022D00
ref: 33

CABLE ASSY,SPEEDOMETER

€ 32.50

34

3493822D20
ref: 34

GUIDE, SPEEDOMETER CABLE

€ 10.00
