SEAT (MODEL R/T)

RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

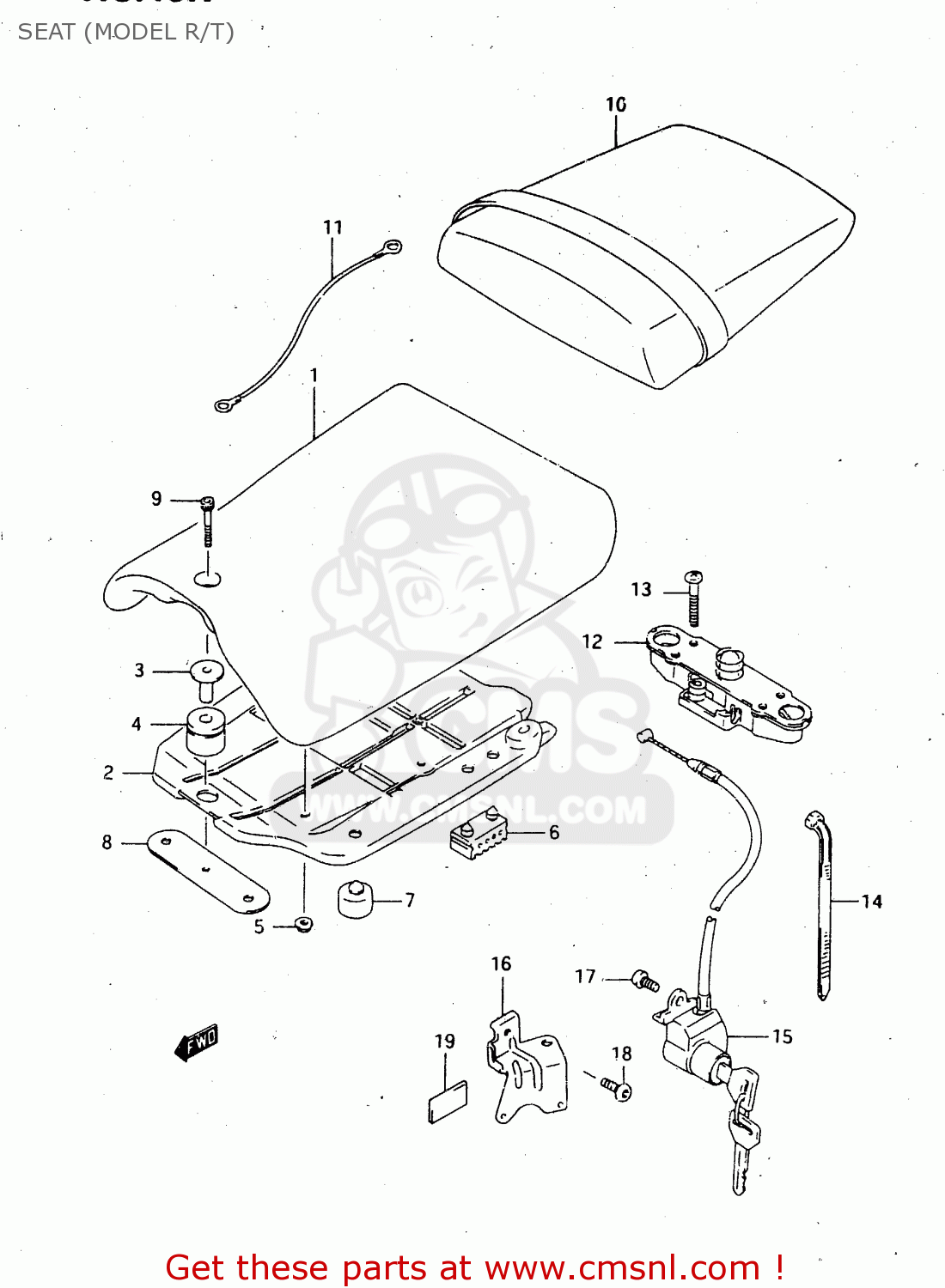

Seat (model r/t) diagram RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

SEAT (MODEL R/T) RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

SEAT (MODEL R/T) RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

4510022D0158R
ref: 1

SEAT ASSY

€ 247.00

2

4511122D00
ref: 2

FRAME, SEAT BOTTOM

€ 40.50

3

4521922D00
ref: 3

COLLAR,FR

€ 6.00

4

4514922D00
ref: 4

CUSHION,SEAT

€ 5.00

5

0831620043
ref: 5

NUT

€ 2.50

6

4514931300
ref: 6

CUSHION,SEAT(40X20X15)

€ 2.00

7

0932110011
ref: 7

CUSHION

€ 3.00

8

4511922D00
ref: 8

PLATE,SEAT FR

€ 23.50

9

0713006355
ref: 9

BOLT

€ 3.50

10

4530033C105FM
ref: 10
FOR M18

SEAT ASSY,PILLION

€ 0.00

10

4530033C106BY
ref: 10
FOR 3CG

SEAT ASSY, PILLION (BLACK)

€ 172.50

11

4528022D00
ref: 11
MODEL R

CABLE,SEAT LOCK

€ 20.50

11

4528022D00
ref: 11
MODEL T

CABLE,SEAT LOCK

€ 20.50

12

4522013601
ref: 12

LOCK ASSY,SEAT STRIKER

€ 47.00

13

0211206353
ref: 13

SCREW

€ 2.50

14

0940718403
ref: 14

CLAMP L:165

€ 2.50

15

9570012852
ref: 15

LOCK SET,SEAT

€ 110.50

16

4528522D10
ref: 16

BRACKET, SEAT LOCK

€ 8.50

17

0913906075
ref: 17

SCREW(6X12)

€ 3.00

18

0913906064
ref: 18

SCREW

€ 2.50

19

5182712E00
ref: 19
MODEL R

CUSHION,HEADLAMP COVER

€ 2.50
