FRONT CALIPER

RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

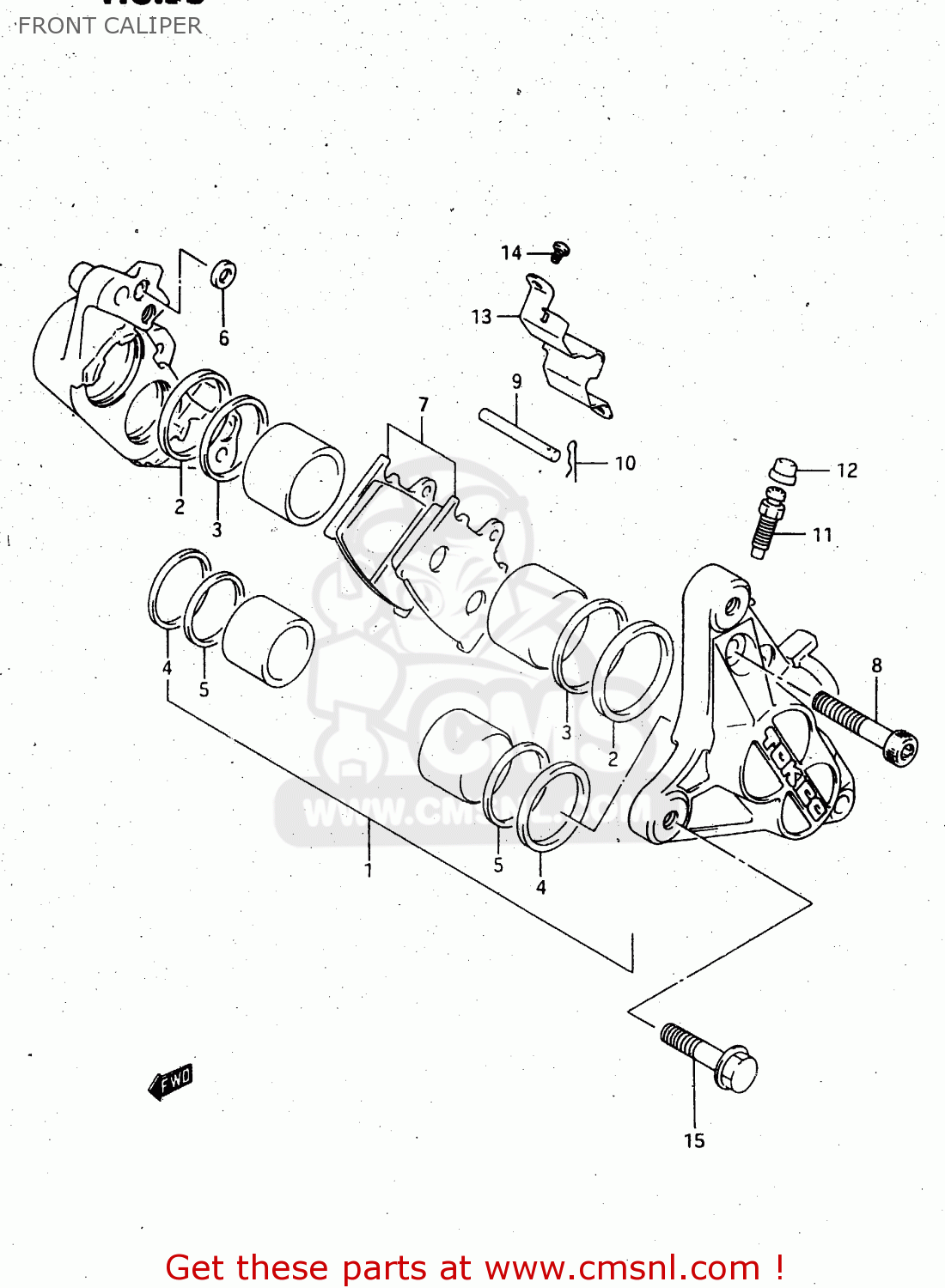

Front caliper diagram RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

FRONT CALIPER RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)
FRONT CALIPER RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)
FRONT CALIPER RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
0
5910006C70
ref: 0
MODEL M/N
CALIPER ASSY,R
€ 447.50
0
5930006C70
ref: 0
MODEL M/N
CALIPER ASSY,L
€ 574.50
0
5910006C71
ref: 0
MODEL P/R/T
CALIPER ASSY, RH
€ 447.50
0
5930006C71
ref: 0
MODEL P/R/T
CALIPER ASSY,FR,L
€ 574.50
1
5910032811
ref: 1
PISTON SET,BRK
5910032811
€ 293.00
2
5910739100
ref: 2
SEAL,PISTON
5910739100
€ 18.00
3
5910836A00
ref: 3
SEAL,WIPER
5910836A00
€ 14.50
4
5910703A00
ref: 4
SEAL
5910703A00
€ 9.00
5
5910832C00
ref: 5
SEAL,WIPER
5910832C00
€ 16.00
6
6910734200
ref: 6
SEAL,JOINT
6910734200
€ 12.00
7
5910022810
ref: 7
<-59130-22D00
PAD SET
€ 47.00
8
5914500A00
ref: 8
BOLT,CALIPER
5914500A00
€ 18.00
9
6914145000
ref: 9
PIN,PAD
6914145000
€ 6.50
10
6914245000
ref: 10
CLIP,PAD PIN
6914245000
€ 4.50
11
5912118410
ref: 11
BLEEDER
5912118410
€ 8.00
12
5515666310
ref: 12
CAP,BLEEDER PLUG
5515666310
€ 6.00
13
5915222D00
ref: 13
COVER,DUST,R.
€ 15.00
13
5915122D01
ref: 13
COVER,CALIPER DUST,L
5915122D01
€ 15.00
14
5915322D00
ref: 14
SCREW
5915322D00
€ 4.50
15
0151710308
ref: 15
MODEL M/N/P
BOLT
0151710308
€ 3.50
15
0155010307
ref: 15
MODEL R/T
BOLT
0155010307
€ 3.50
