WATER PUMP

RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

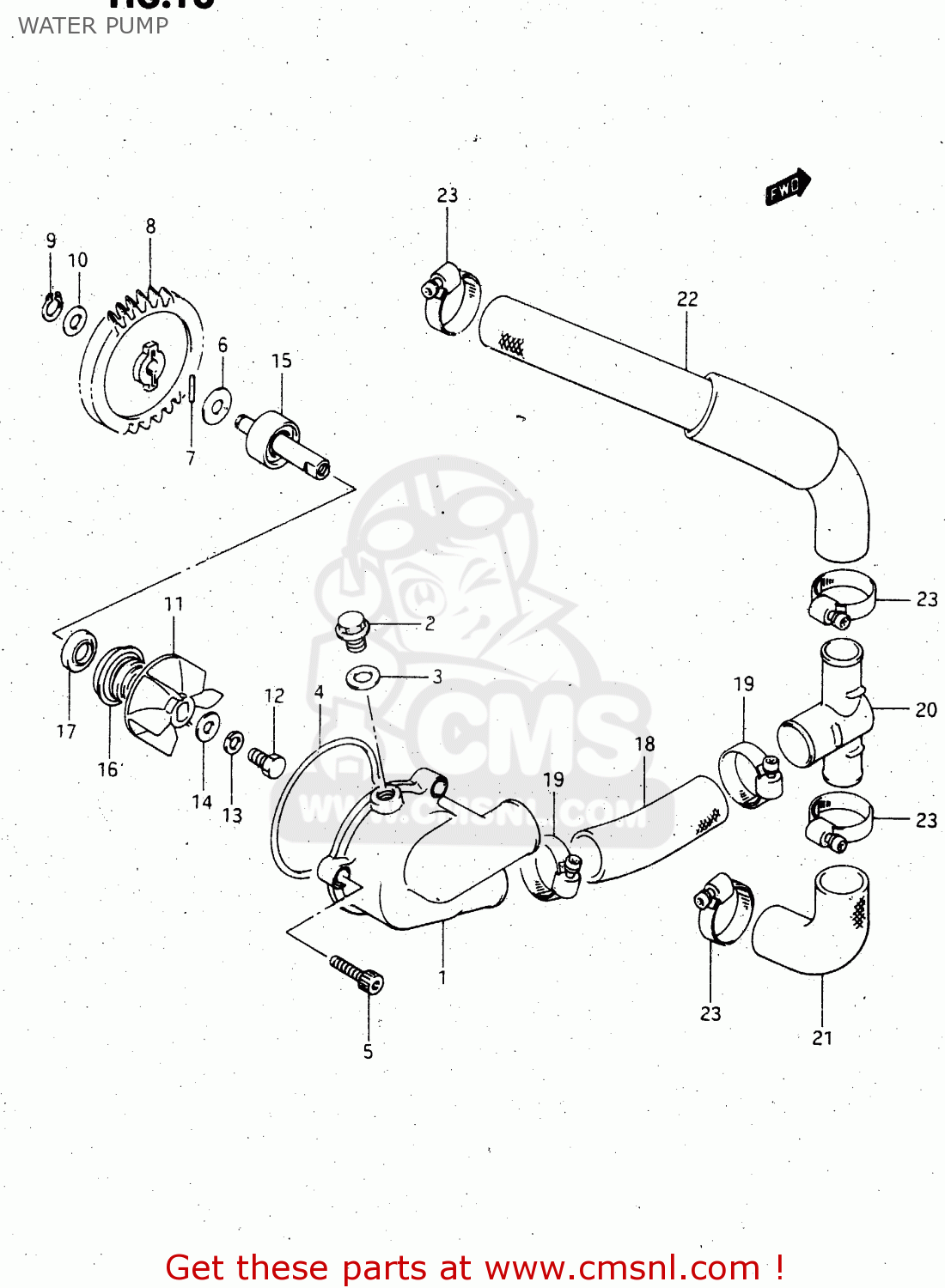

Water pump diagram RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)

WATER PUMP RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)
WATER PUMP RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)
WATER PUMP RGV250 1991 (M) (E01 E02 E04 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
1741012C02
ref: 1
CASE,WATER PUMP
1741012C02
€ 73.50
2
1741520920
ref: 2
BOLT,DRAIN
1741520920
€ 5.00
3
0916808008
ref: 3
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
4
1743512C00
ref: 4
O RING,WATER PUMP CASE
1743512C00
€ 6.00
5
0711006208
ref: 5
MODEL M/N/P
BOLT ,6X20
0711006208
€ 3.50
5
0713006203
ref: 5
MODEL R/T
BOLT,CRKCASE,R
0713006203
€ 3.00
6
0821108201
ref: 6
WASHER
0821108201
€ 2.00
7
0926102001
ref: 7
PIN(2.5X19.8)
0926102001
€ 1.50
8
1746112C00
ref: 8
GEAR,WATER PUMP DRIVE(NT:31)
1746112C00
€ 31.00
9
0833131086
ref: 9
CIRCLIP
0833131086
€ 2.00
10
0916408018
ref: 10
WASHER
0916408018
€ 3.50
11
1749112C00
ref: 11
IMPELLER,WATER PUMP
1749112C00
€ 11.50
12
0910006099
ref: 12
BOLT(6X13)
0910006099
€ 2.00
13
0916406006
ref: 13
WASHER
0916406006
€ 2.50
14
0916806025
ref: 14
GASKET(6X15X2.2) (NAS)
0916806025
€ 3.00
15
1751022D00
ref: 15
SHAFT,WATER PUMP
€ 122.00
16
1747046A00
ref: 16
SEAL,MECHANICAL
1747046A00
€ 21.50
17
0928310005
ref: 17
SEAL,OIL(10X20X5)
0928310005
€ 4.50
18
1785712C00
ref: 18
HOSE,WTR PUMP OUTLET
1785712C00
€ 12.50
19
0940230502
ref: 19
MODEL M/N/P
CLAMP
€ 11.50
19
0940232511
ref: 19
MODEL R/T
CLAMP
0940232511
€ 11.50
20
1789112C00
ref: 20
UNION,WTR HOSE THREE WAY
1789112C00
€ 10.50
21
1785812C00
ref: 21
HOSE,CYLINDER INLET NO.1
1785812C00
€ 12.50
22
1785912C01
ref: 22
HOSE,CYLINDER INLET NO.2
1785912C01
€ 23.50
23
0940228511
ref: 23
CLAMP
0940228511
€ 8.50
