Buy Suzuki RGV Parts Online


CRANKCASE COVER

RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

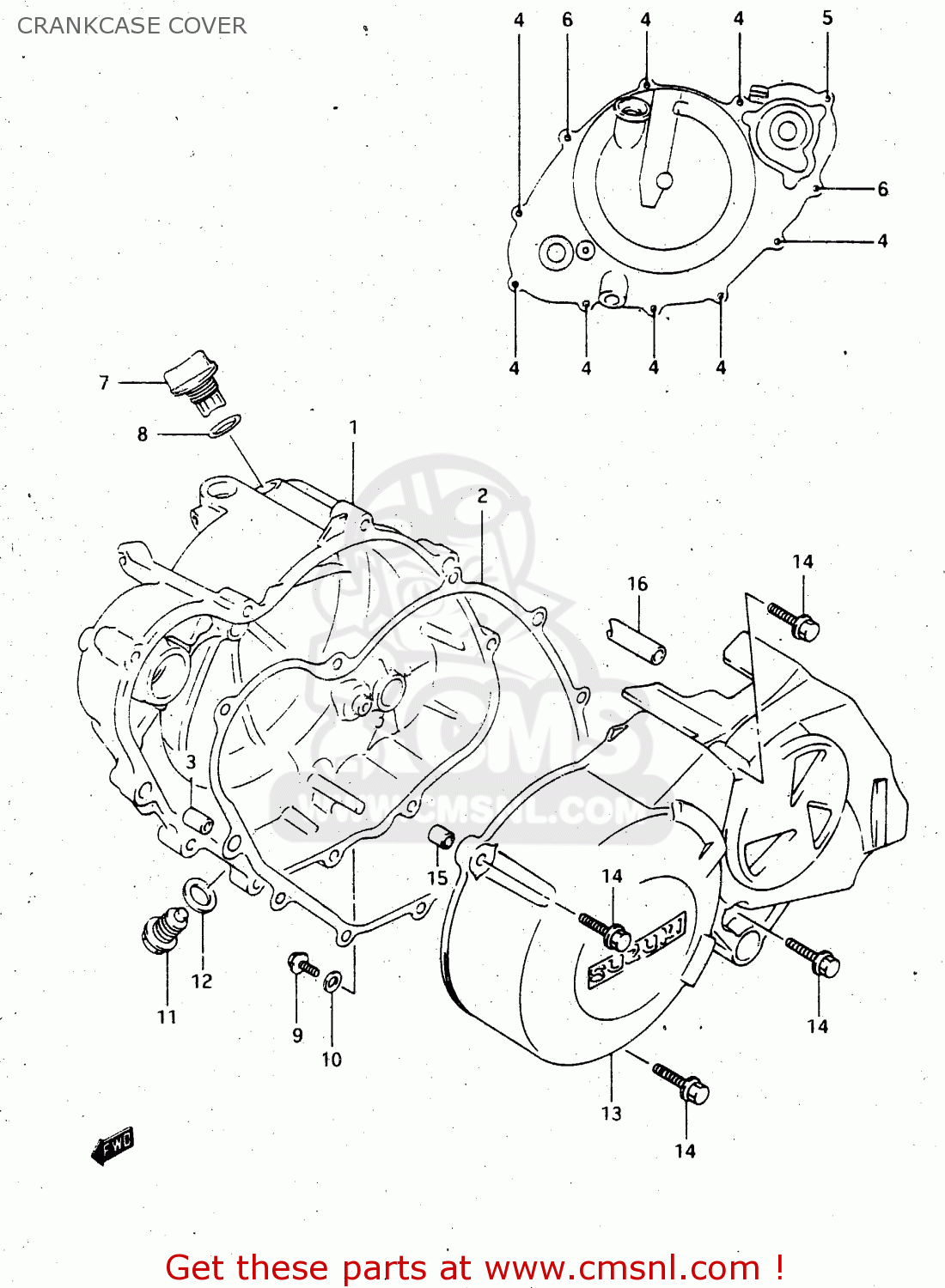

Crankcase cover diagram RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

CRANKCASE COVER RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)
CRANKCASE COVER RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)
CRANKCASE COVER RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
1134112C01
ref: 1
COVER,CLUTCH
1134112C01
€ 209.50
2
1148222D00
ref: 2
GASKET,CLUTCH COVER (NAS)
1148222D00
€ 35.50
3
0920609009
ref: 3
PIN
0920609009
€ 12.50
4
0711006307
ref: 4
MODEL M/N/P
BOLT
0711006307
€ 3.00
4
0713006303
ref: 4
MODEL R/T
BOLT
0713006303
€ 3.00
5
0711006357
ref: 5
MODEL M/N/P
BOLT
€ 3.50
5
0713006353
ref: 5
MODEL R/T
BOLT
€ 3.50
6
0711006408
ref: 6
MODEL M/N/P
BOLT
€ 2.50
6
0713006403
ref: 6
MODEL R/T
BOLT
0713006403
€ 3.50
7
1197112C51
ref: 7
PLUG,OIL FILLER
1197112C51
€ 7.00
8
0928017003
ref: 8
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
9
0912806043
ref: 9
SCREW (6X10)
0912806043
€ 2.00
10
0916806004
ref: 10
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
11
0924714035
ref: 11
PLUG
0924714035
€ 6.50
12
0916814002
ref: 12
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
13
1135122D00
ref: 13
COVER,MAGNETO
€ 205.00
14
0151706458
ref: 14
MODEL M/N/P
BOLT,UNDER
0151706458
€ 2.50
14
0155006453
ref: 14
MODEL R/T
BOLT (6X45)
€ 2.50
15
0421109129
ref: 15
PIN
0421109129
€ 2.00
16
1139112B00
ref: 16
CUSHION,MAGNETO COVER
€ 4.00
