CRANKSHAFT

RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

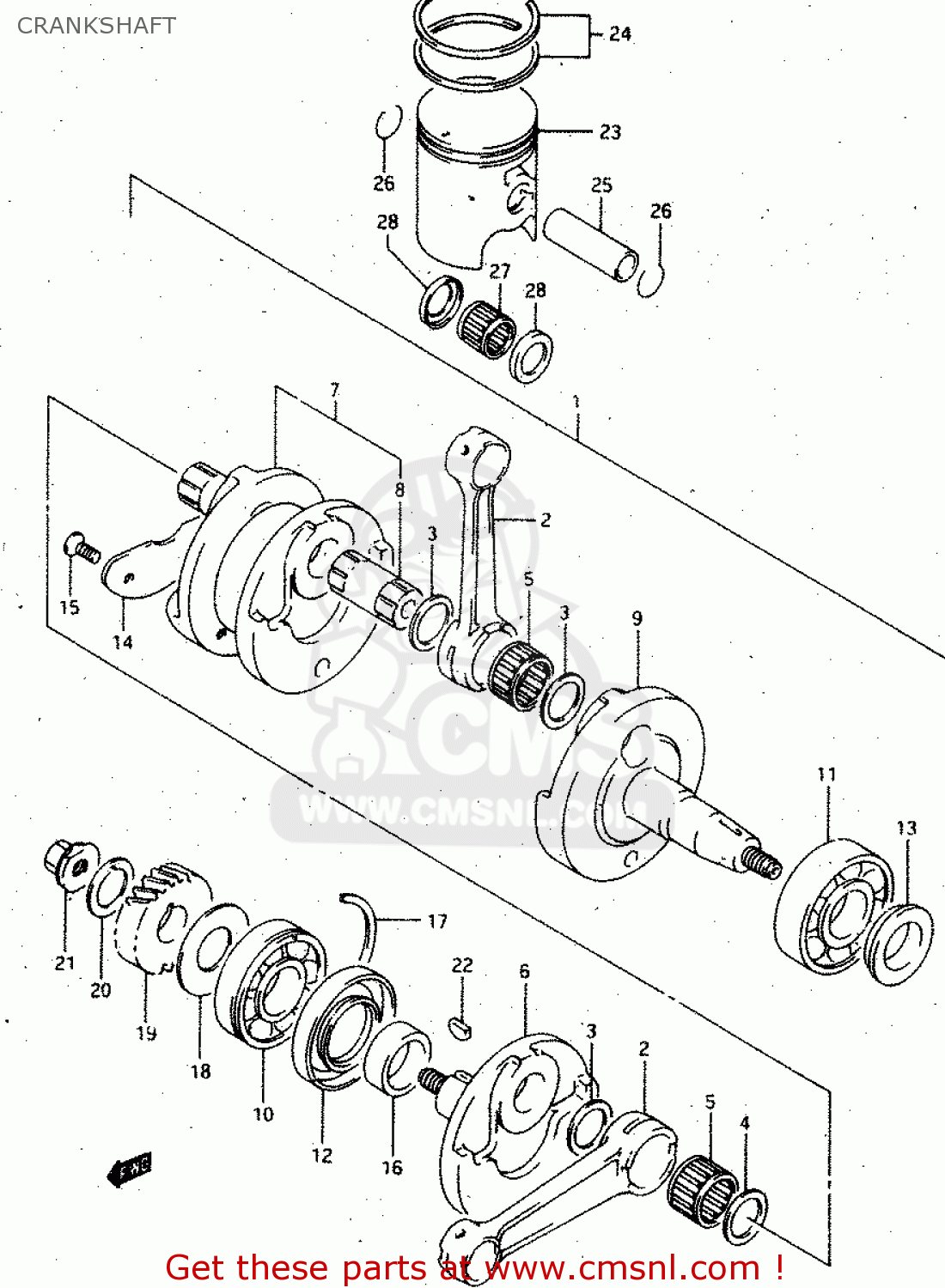

Crankshaft diagram RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

CRANKSHAFT RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)
CRANKSHAFT RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)
CRANKSHAFT RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
1220022D11
ref: 1
<-12200-22D00
CRANKSHAFT ASSY
1220022D11
€ 1,249.50
2
1216112C060D0
ref: 2
ROD,CONNECTING
1216112C060D0
€ 100.00
3
0916022070
ref: 3
WASHER(22X27.5X1.5)
0916022070
€ 9.50
4
0916022071
ref: 4
WASHER(22X27.5X2)
0916022071
€ 9.50
5
09263220470C0
ref: 5
ROLLER BEARING (22X28X1
09263220470C0
€ 64.00
6
1222122D01
ref: 6
CRANKSHAFT,R
1222122D01
€ 162.50
7
1224022D01
ref: 7
CRANKSHAFT,MIDDLE
1224022D01
€ 372.00
8
1221112C020A0
ref: 8
PIN,CRANK
1221112C020A0
€ 36.00
9
1226122D10
ref: 9
<-12261-22D01
CRANKSHAFT,L
€ 171.00
10
0926225097
ref: 10
BEARING(25X62X17)
0926225097
€ 41.50
11
0926225098
ref: 11
BEARING(25X62X17)
0926225098
€ 55.00
12
0928932005
ref: 12
SEAL,OIL(32X62X6X7.5)
0928932005
€ 23.50
13
0928325091
ref: 13
SEAL,OIL(25X36X6)
0928325091
€ 32.50
14
1227112C04
ref: 14
BALANCER,CRANKSHAFT
1227112C04
€ 11.00
15
0212206167
ref: 15
MODEL M/N/P
SCREW
0212206167
€ 2.00
15
0212206163
ref: 15
MODEL R/T
SCREW ,6X16
0212206163
€ 2.00
16
0918025089
ref: 16
SPACER(25.2X32X9)
0918025089
€ 12.00
17
0939062009
ref: 17
C RING
0939062009
€ 5.00
18
0918120059
ref: 18
SHIM(20X48X0.5)
0918120059
€ 3.00
19
2111112C02
ref: 19
GEAR,PRIMARY DRIVE
2111112C02
€ 52.50
20
0916612002
ref: 20
WASHER
0916612002
€ 2.00
21
0915912103
ref: 21
NUT
0915912103
€ 9.00
22
0942005008
ref: 22
KEY
0942005008
€ 69.00
23
1211022D010F0
ref: 23
PISTON
1211022D010F0
€ 74.00
24
1214022D30
ref: 24
RING SET,PISTON
1214022D30
€ 46.50
25
1215122D00
ref: 25
PIN,PISTON
1215122D00
€ 12.00
26
0938116001
ref: 26
RING,SNAP 16MM
0938116001
€ 1.50
27
0926316028
ref: 27
BEARING(16X20X17.8)
0926316028
€ 13.00
28
0916916007
ref: 28
WASHER
0916916007
€ 6.50
