TRANSMISSION

RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

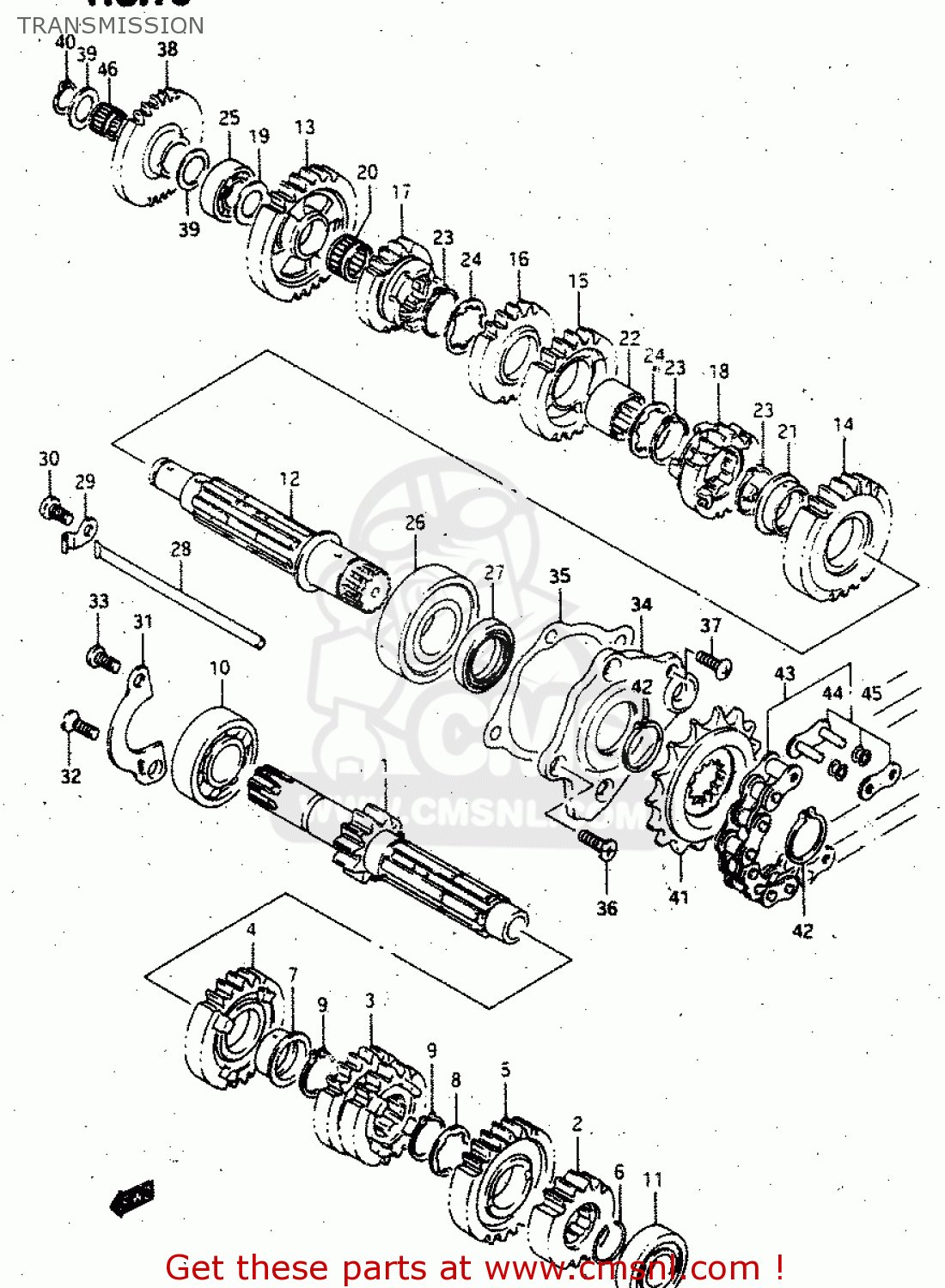

Transmission diagram RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

TRANSMISSION RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)
TRANSMISSION RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)
TRANSMISSION RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
2412122D01
ref: 1
SHAFT,COUNTER(NT:11)
€ 168.00
2
2422112C00
ref: 2
GEAR,2ND DRIVE(NT:16)
2422112C00
€ 74.50
3
2423112C01
ref: 3
GEAR,3RD & 4TH DRIVE(NT:17/22)
2423112C01
€ 110.50
4
2425112C02
ref: 4
GEAR,5TH DRIVE(NT:24)
2425112C02
€ 87.50
5
2426112C01
ref: 5
GEAR,6TH DRIVE(NT:25)
2426112C01
€ 83.00
6
0938022009
ref: 6
CIRCLIP
0938022009
€ 2.50
7
0930122003
ref: 7
BUSH
0930122003
€ 17.50
8
0916722011
ref: 8
WASHER,LOCK
0916722011
€ 3.00
9
0833131226
ref: 9
CIRCLIP
0833131226
€ 2.00
10
0926220065
ref: 10
MODEL M/N/P
BEARING
€ 24.00
10
0926220116
ref: 10
MODEL R/T
BEARING 20X52X15
0926220116
€ 24.00
11
0926217027
ref: 11
MODEL M/N/P, <-09262
BEARING(17X40X12)
0926217027
€ 25.00
11
0926217018
ref: 11
MODEL R/T
BEARING
0926217018
€ 25.00
12
2413022D00
ref: 12
SHAFT,DRIVE
2413022D00
€ 142.00
13
2431112C02
ref: 13
GEAR,1ST DRIVEN(NT:27)
2431112C02
€ 86.00
14
2432116701
ref: 14
GEAR,2ND DRIVE
€ 108.00
15
2433112C01
ref: 15
GEAR,3RD DRIVEN(NT:21)
2433112C01
€ 81.50
16
2434112C02
ref: 16
GEAR,4TH DRIVEN(NT:23)
2434112C02
€ 87.50
17
2435112C02
ref: 17
GEAR,5TH DRIVEN(NT:22)
2435112C02
€ 87.50
18
2436112C10
ref: 18
~F.NO.100177
GEAR,6TH DRIVEN(NT:21)
2436112C10
€ 87.50
18
2436112C11
ref: 18
F.NO.100178~
GEAR,6TH DRIVEN
2436112C11
€ 96.00
19
0821115263
ref: 19
WASHER
0821115263
€ 3.50
20
0926318029
ref: 20
BEARING(18X22X12.8)
0926318029
€ 15.50
21
0930125002
ref: 21
BUSH
0930125002
€ 10.50
22
2433212C00
ref: 22
BUSH,3RD & 4TH DRIVEN GEAR
2433212C00
€ 32.50
23
0938025003
ref: 23
RING,SNAP
0938025003
€ 3.00
24
0916725023
ref: 24
WASHER,LOCK
0916725023
€ 5.00
25
0811062020
ref: 25
MODEL M/N/P/R
BALL BEARING
€ 14.50
25
0811362020
ref: 25
MODEL T
BEARING, RH
0811362020
€ 14.50
26
0926225083
ref: 26
MODEL M
BALL BEARING 25X62X17
0926225083
€ 49.00
26
0926225107
ref: 26
MODEL N/P/R
BEARING
€ 49.00
26
0926225083
ref: 26
MODEL T
BALL BEARING 25X62X17
0926225083
€ 49.00
27
0928325086
ref: 27
SEAL,OIL(25X38X6)
0928325086
€ 33.00
28
2488112C02
ref: 28
GUIDE,TRANSMISSION OIL
2488112C02
€ 6.50
29
2488512C00
ref: 29
RTNR,OIL GUIDE
€ 2.50
30
0211206103
ref: 30
SCREW
0211206103
€ 1.50
31
2474122D00
ref: 31
RETAINER
€ 6.00
32
0211206163
ref: 32
SCREW 6X16
0211206163
€ 2.00
33
0212206163
ref: 33
SCREW ,6X16
0212206163
€ 2.00
34
2475112C03
ref: 34
RETAINER,DRIVE SHAFT BEARING
2475112C03
€ 24.50
35
2475222D00
ref: 35
GASKET,BRG RTNR (NAS)
2475222D00
€ 17.00
36
0212206163
ref: 36
<-09120-06002
SCREW ,6X16
0212206163
€ 2.00
37
0912506083
ref: 37
SCREW(6X16)
0912506083
€ 3.00
38
2626112C04
ref: 38
GEAR,KICK IDLE
2626112C04
€ 56.50
39
0821115241
ref: 39
WASHER,THRUST
€ 4.00
40
0833131156
ref: 40
CIRCLIP
0833131156
€ 2.00
41
2751038C00
ref: 41
SPROCKET,ENGINE(NT:14)
2751038C00
€ 48.50
42
0833131246
ref: 42
CIRCLIP
0833131246
€ 2.50
43
2760006C20114
ref: 43
<-27600-22D10-114
CHAIN,DRIVE
2760006C20114
€ 125.00
44
2762006C20
ref: 44
JOINT,CHAIN
€ 14.00
45
2762022D10
ref: 45
JOINT (DID)
€ 15.00
46
0926315028
ref: 46
BEARING(15X19X13)
0926315028
€ 13.00
up

all assemblies
