TURN SIGNAL LAMP (E1)

RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

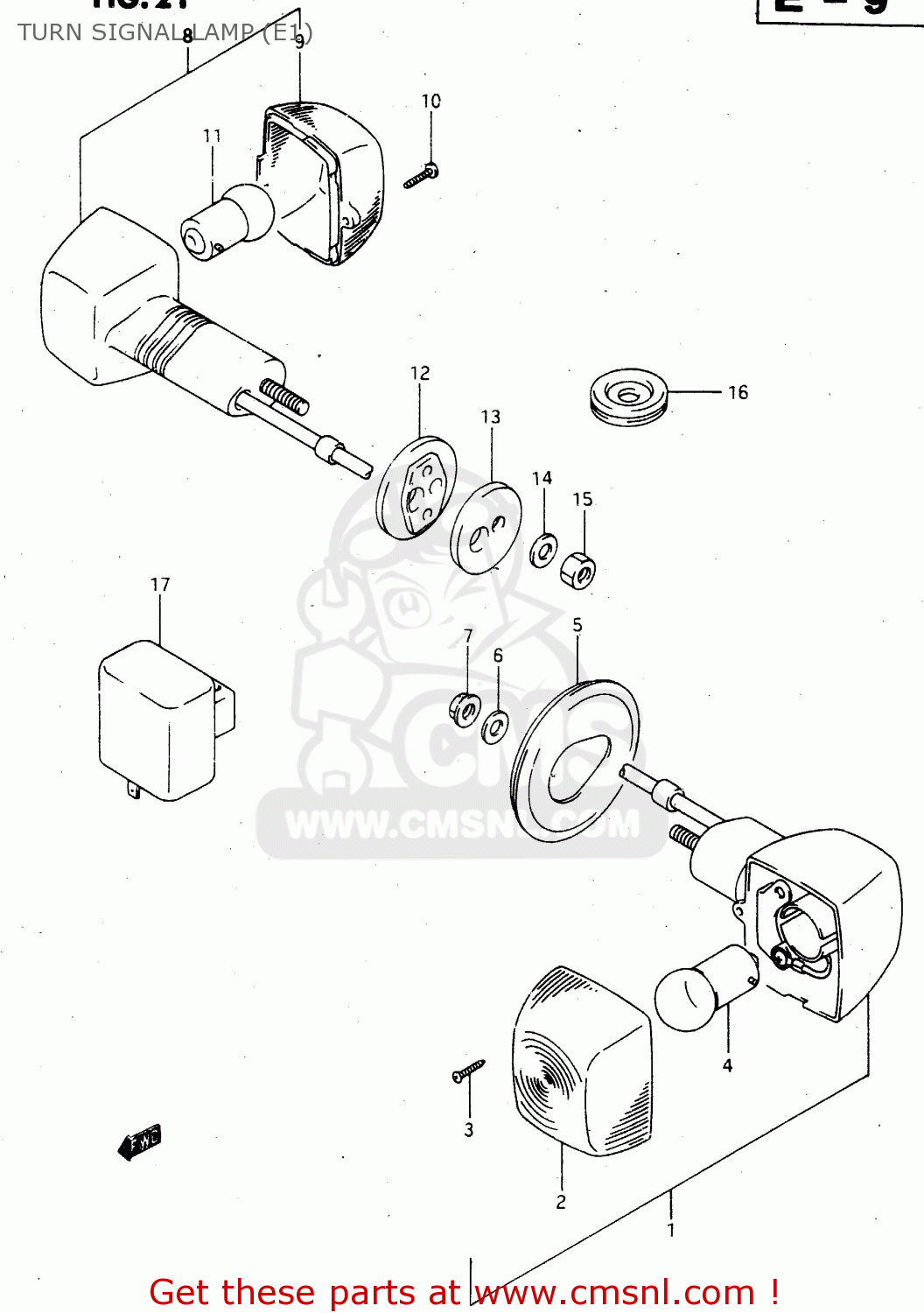

Turn signal lamp (e1) diagram RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

TURN SIGNAL LAMP (E1) RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

TURN SIGNAL LAMP (E1) RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

3560122D00
ref: 1

LAMP ASSY, FRONT TURN RH

€ 51.50

1

3560222D00
ref: 1

LAMP ASSY, FRONT TURN LH

€ 73.50

2

3565206C00
ref: 2

LENS

€ 7.00

3

3562501A00
ref: 3

SCREW

€ 1.50

4

0947112162
ref: 4

BULB(12V15W)

€ 13.00

5

3567407D00
ref: 5

GROMMET,TURNSIGNAL LAMP

€ 24.00

6

0916006093
ref: 6

WASHER (6.2X14X2)

€ 2.00

7

0831620063
ref: 7

NUT

€ 2.00

8

3560307D00
ref: 8

LAMP ASSY,RR TURNSIGNAL,R

€ 56.50

8

3560407D00
ref: 8

LAMP ASSY,RR TURNSIGNAL,L

€ 64.50

9

3565206C00
ref: 9

LENS

€ 7.00

10

3562501A00
ref: 10

SCREW

€ 1.50

11

0947112162
ref: 11

BULB(12V15W)

€ 13.00

12

3569507D00
ref: 12

SPACER,RR TURN

€ 5.00

13

3569507D10
ref: 13

SPACER,RR TURNSIGNAL

€ 5.00

14

0832201063
ref: 14

WASHER

€ 2.00

15

0831000063
ref: 15

NUT 6MM

€ 2.00

16

0930807013
ref: 16

GROMMET

€ 3.50

17

3861010D00
ref: 17

RELAY ASSY,TURNSIGNAL

€ 51.00
