Buy Suzuki RGV Parts Online


KICK STARTER

RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

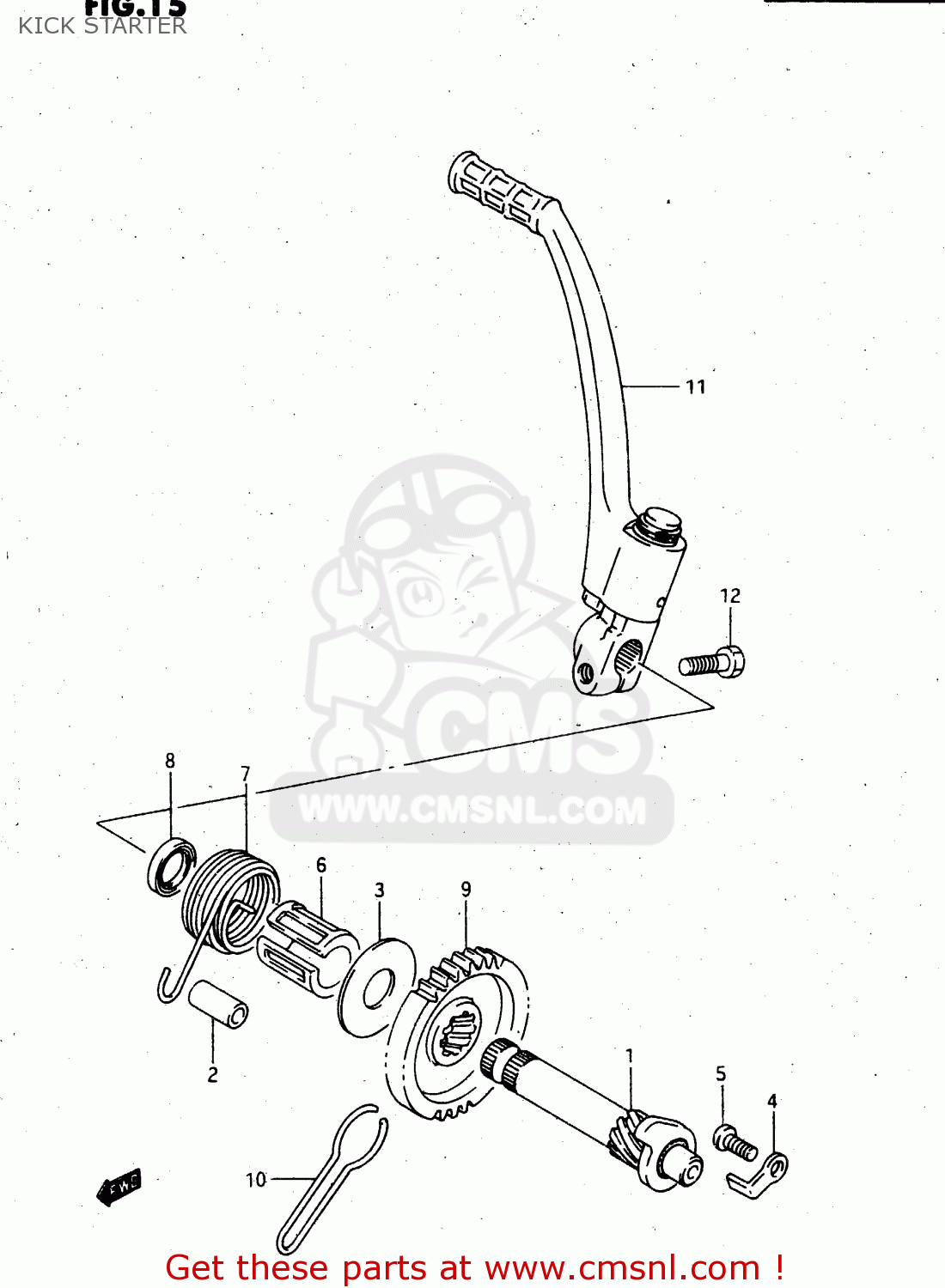

Kick starter diagram RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

KICK STARTER RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)
KICK STARTER RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)
KICK STARTER RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
2621012C02
ref: 1
SHAFT,KICK STARTER
2621012C02
€ 112.00
2
0918006067
ref: 2
SPACER(6.5X10.5X22.5)
0918006067
€ 2.50
3
0821117422
ref: 3
WASHER
0821117422
€ 4.50
4
2623312C10
ref: 4
MODEL M/N/P
STOPPER, KICK STARTER
€ 5.00
4
2623312C11
ref: 4
MODEL R/T
STOPPER,KICK STARTER
2623312C11
€ 5.00
5
0211206103
ref: 5
SCREW
0211206103
€ 1.50
6
2622123030
ref: 6
GUIDE,KICK STARTER SFT SPRING
2622123030
€ 7.50
7
0944843002
ref: 7
SPRING
0944843002
€ 13.00
8
0928516003
ref: 8
SEAL,OIL(16X24X5)
0928516003
€ 3.00
9
2624112C00
ref: 9
GEAR,KICK DRIV
€ 96.50
10
2623412C01
ref: 10
SPRING,KICK STARTER RETAINER
2623412C01
€ 6.00
11
2630022D10
ref: 11
LEVER ASSY,KICK STARTER
2630022D10
€ 100.00
12
0110708258
ref: 12
MODEL M/N/P
BOLT
0110708258
€ 2.50
12
0150008253
ref: 12
MODEL R/T
BOLT
0150008253
€ 2.50
