FRONT BRAKE HOSE

RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

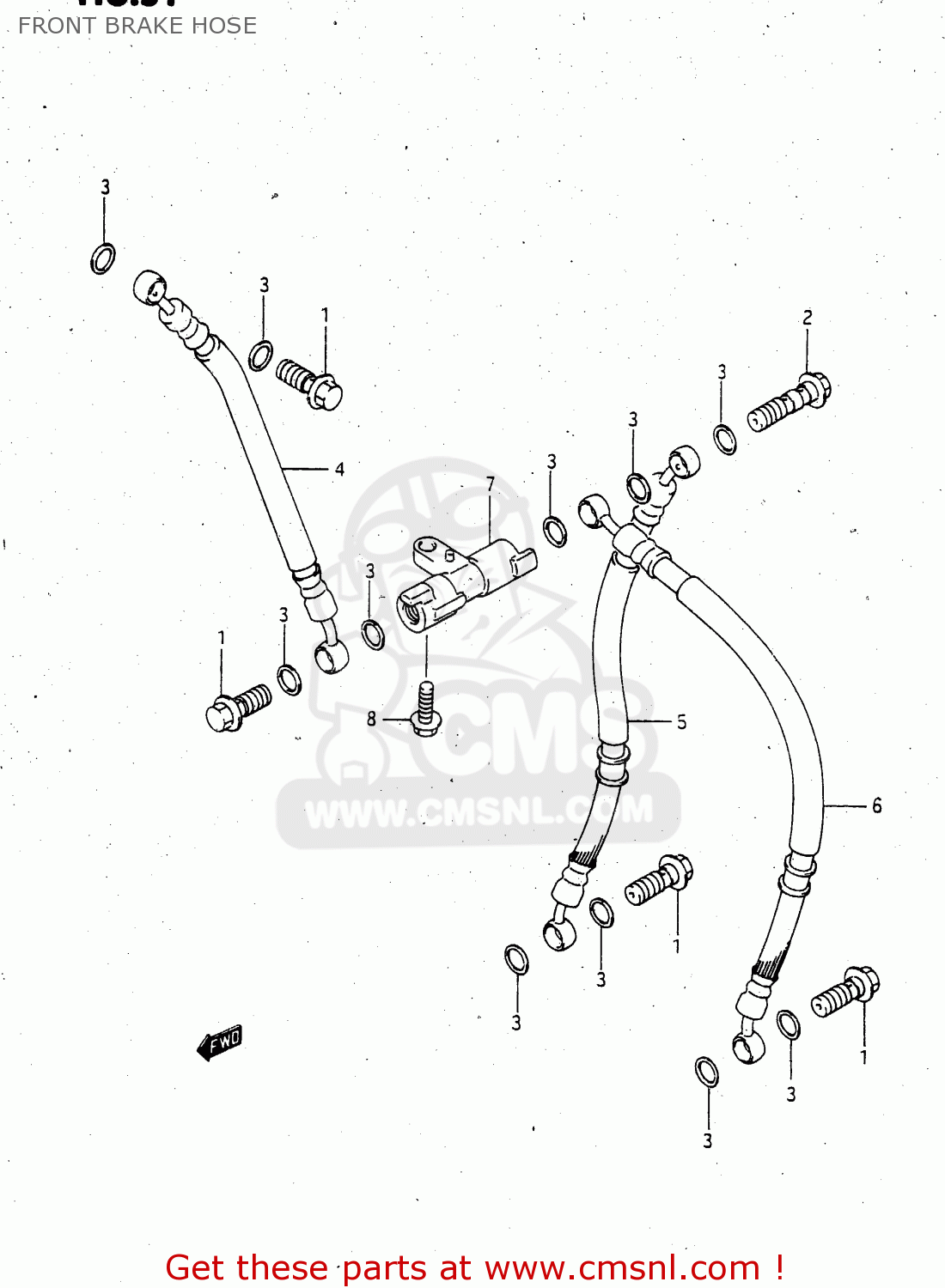

Front brake hose diagram RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

0936010017
ref: 1
MODEL M/N/P

BOLT UNION

€ 6.50

0936010039
ref: 1
MODEL R/T

BOLT UNION

€ 6.50

0936010018
ref: 2

BOLT UNION

€ 7.00

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

5948022D10
ref: 4

HOSE,FR BRAKE NO.1

€ 61.00

5924022D00
ref: 5

HOSE,FR BRAKE NO.2,R

€ 69.50

5944022D00
ref: 6

HOSE,FR BRAKE NO.2,L

€ 69.50

5949112C00
ref: 7

JOINT,BRAKE HOSE

€ 25.50

0151706167
ref: 8
MODEL M/N/P

BOLT 6X16

€ 1.50

0155006163
ref: 8
MODEL R/T

BOLT

€ 2.50
