FOOTREST
RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

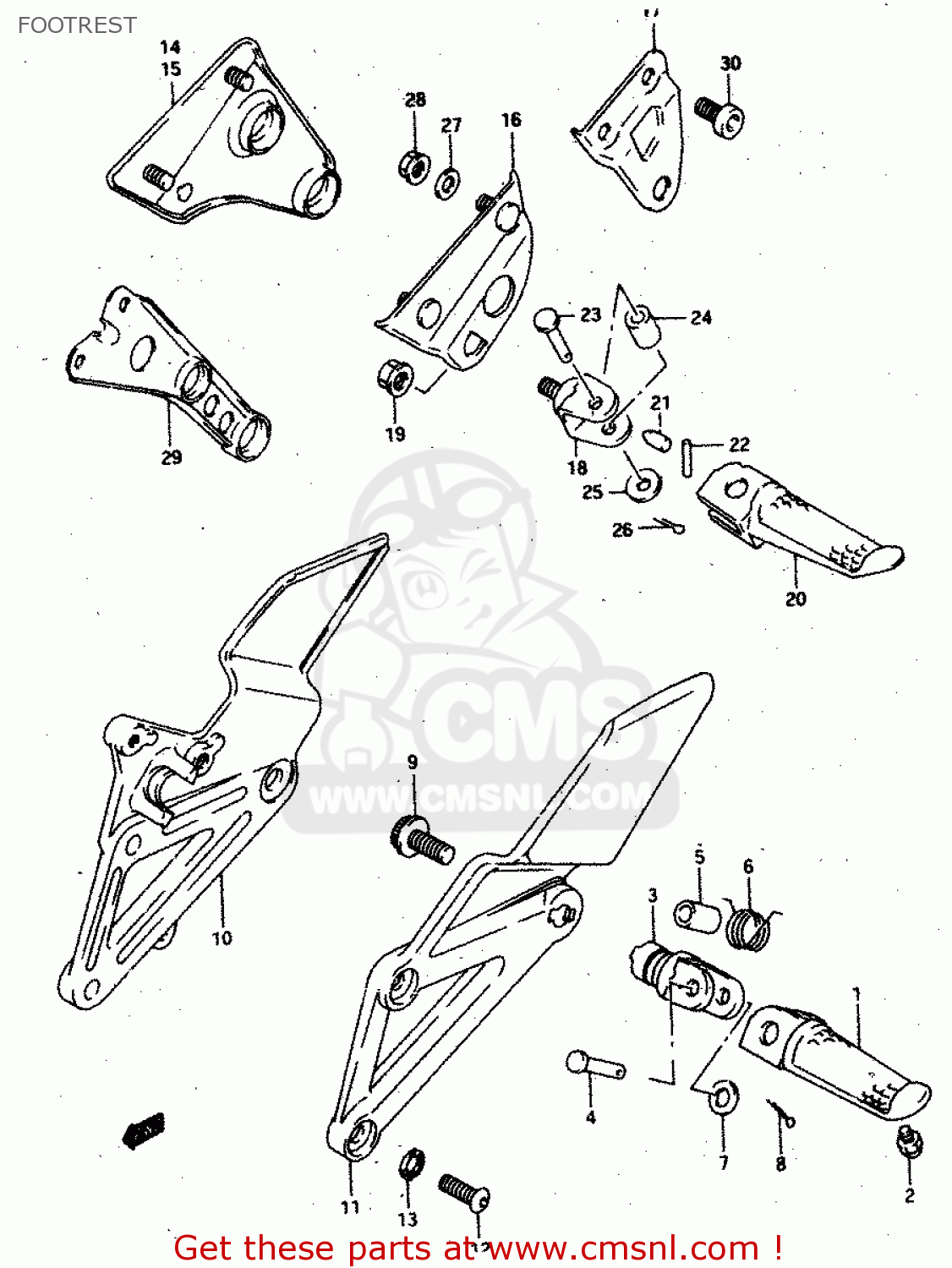

Footrest diagram RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)
FOOTREST RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
1
4351132C00
ref: 1
BAR,FR FOOTREST,R
€ 42.00
1
4352132C00
ref: 1
BAR,FR FOOTREST,L
€ 42.00
2
0910406006
ref: 2
BOLT(6X6)
€ 3.50
3
4353006C01
ref: 3
HOLDER,FOOTREST
€ 32.00
4
0920008067
ref: 4
PIN
€ 5.50
5
0918008149
ref: 5
SPACER(8.1X12X22)
€ 7.00
6
0944819020
ref: 6
MODEL M/N/P/R
SPRING
€ 3.50
6
0944818022
ref: 6
MODEL T
SPRING
€ 3.50
7
0832201087
ref: 7
WASHER
€ 2.00
8
0411125158
ref: 8
PIN 20X15
€ 1.50
9
0910610052
ref: 9
MODEL M/N/P/R
BOLT(10X24)
€ 6.00
9
0155010253
ref: 9
MODEL T
BOLT
€ 3.00
10
4381122D00
ref: 10
MODEL M/N
BRACKET, FRONT FOOTREST RH
€ 140.00
10
4381122D02
ref: 10
MODEL P/R/T
BRACKET,FR FOOTREST,R
€ 140.00
11
4382122D00
ref: 11
MODEL M/N
BRACKET,FR FTR
€ 120.00
11
4382122D02
ref: 11
MODEL P/R/T
BRACKET,FR FOOTREST,L
€ 120.00
12
0910608058
ref: 12
BOLT(8X20)
€ 8.50
13
0916408015
ref: 13
WASHER
€ 3.00
14
4360022D00
ref: 14
MODEL M
FOOTREST ASSY, PILLION RH
€ 144.00
15
4360022D10
ref: 15
MODEL N/P/R/T
FOOTREST,PILL.ION
€ 154.00
16
4370022D00
ref: 16
MODEL M
FOOTREST ASSY, PILLION LH
€ 144.00
17
4370022D10
ref: 17
MODEL N/P/R/T
FOOTREST ASSY,PILLION,L
€ 132.00
18
4361032C02
ref: 18
HOLDER,PILLION FOOTREST
€ 29.50
19
0831931105
ref: 19
NUT 10MM
€ 3.00
20
4361132C00
ref: 20
BAR,PILLION FOOTREST R
€ 31.00
20
4362132C00
ref: 20
BAR,PILLION FOOTREST L
€ 31.00
21
4369117C00
ref: 21
CUSHION,FOOTREST HOLDER
€ 6.00
22
4361217D00
ref: 22
ROLLER,FOOTREST HOLDER
€ 2.50
23
0920008067
ref: 23
PIN
€ 5.50
24
0918008149
ref: 24
SPACER(8.1X12X22)
€ 7.00
25
0832201087
ref: 25
WASHER
€ 2.00
26
0411125158
ref: 26
PIN 20X15
€ 1.50
27
0916408015
ref: 27
WASHER
€ 3.00
28
0831620083
ref: 28
NUT
€ 1.50
29
4382022D10
ref: 29
MODEL N/P/R/T
BRACKET,MUFFLER 2ND
€ 48.00
30
0155008207
ref: 30
MODEL N/P
BOLT
€ 3.00
30
0155008203
ref: 30
MODEL R/T
BOLT
€ 3.00
