ELECTRICAL

RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

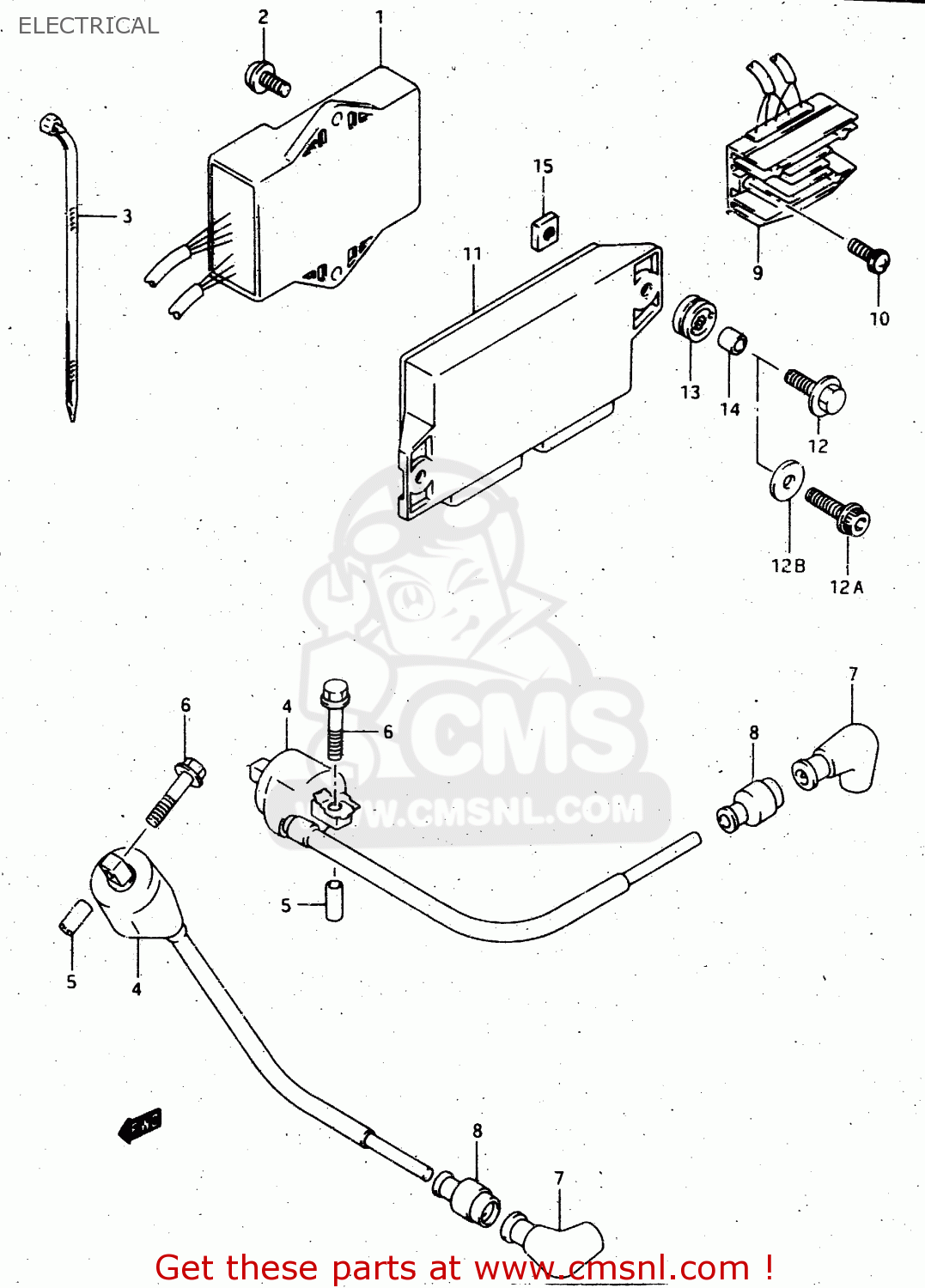

Electrical diagram RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

ELECTRICAL RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

ELECTRICAL RGV250 1992 (N) (E02 E04 E21 E22 E24 E34)

prices are in EUR

ref

part #

description

quantity

1

3290022D01
ref: 1
<-32900-12C10

CDI UNIT

€ 504.00

2

0211216166
ref: 2
MODEL M/N/P

SCREW

€ 2.50

2

0214206163
ref: 2
MODEL R/T

SCREW

€ 2.50

3

0940718402
ref: 3

CLAMP(L:165)

€ 2.50

4

3341012C00
ref: 4

COIL ASSY,IGNITION NO.1

€ 123.00

5

0918006190
ref: 5

SPACER

€ 4.50

6

0151706458
ref: 6
MODEL M/N/P

BOLT,UNDER

€ 2.50

6

0155006457
ref: 6
MODEL R/T

BOLT

€ 2.50

7

3351020A00
ref: 7

CAP,SPARK PLUG

€ 23.00

8

3354238B00
ref: 8

SEAL,HIGH TENSION CORD

€ 4.50

9

3280022D00
ref: 9

RECTIFIER ASSY

€ 368.00

10

0211236256
ref: 10
MODEL M/N/P

SCREW

€ 2.50

10

0214206253
ref: 10
MODEL R/T

SCREW

€ 1.50

11

3291022D10
ref: 11

CONTROL UNIT

€ 498.00

11

3291022D30
ref: 11
E2, E4, E21, E24, E3

CONTROL UNIT

€ 674.50

11

3291023D00
ref: 11
MODEL M E22

CONTROL UNIT

€ 989.00

11

3291022D90
ref: 11
MODEL N/P E22

CONTROL UNIT

€ 809.50

12

0911606087
ref: 12

BOLT 6X25

€ 2.00

12A

0712006257
ref: 12A
MODEL N E22, MODEL P

BOLT

€ 3.00

12B

0916006027
ref: 12B
MODEL N E22, MODEL P

WASHER (6.5X20X1.2)

€ 2.00

13

0932009009
ref: 13

CUSHION

€ 5.00

14

0918006152
ref: 14

SPACER

€ 3.00

15

0915206023
ref: 15

NUT

€ 2.50
