CRANKCASE (MODEL G)

RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

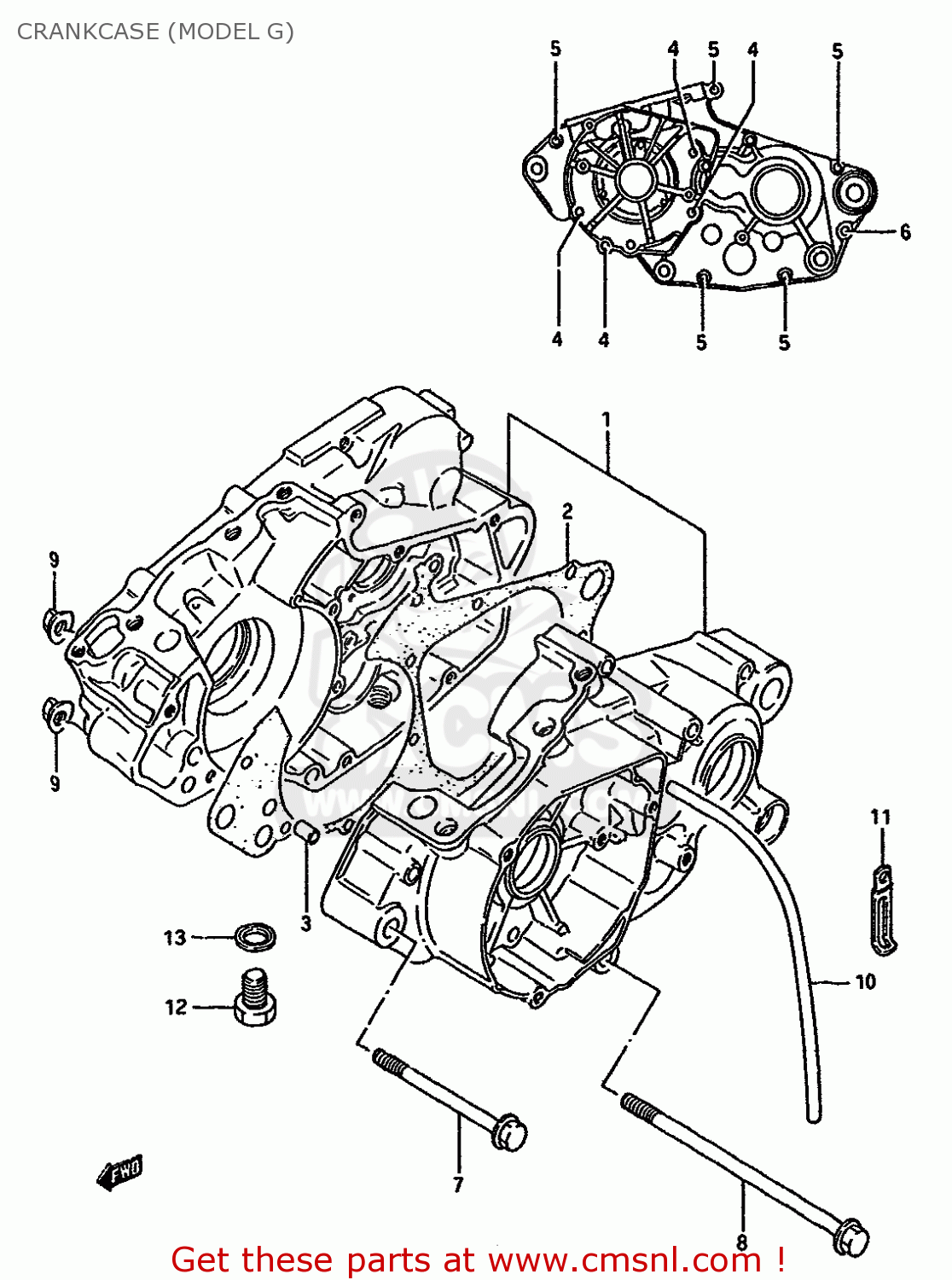

Crankcase (model g) diagram RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

CRANKCASE (MODEL G) RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

CRANKCASE (MODEL G) RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

prices are in EUR

ref

part #

description

quantity

1

1130001810
ref: 1

CRANKCASE SET

€ 237.00

2

1148101B00
ref: 2

GASKET,CRANKCASE (MCA)

€ 10.50

3

0421109129
ref: 3

PIN

€ 2.00

4

0211206457
ref: 4

SCREW

€ 2.00

5

0211206508
ref: 5

SCREW

€ 2.50

6

0211206608
ref: 6

SCREW 6X60

€ 2.50

7

0910308183
ref: 7

BOLT(8X95)

€ 4.50

8

0910308113
ref: 8

BOLT(8X150)

€ 64.00

9

0915908067
ref: 9

NUT

€ 5.50

10

0934304104
ref: 10
L:600 250

HOSE

€ 3.00

11

0940406402
ref: 11

CLAMP

€ 2.50

12

0924714025
ref: 12

PLUG

€ 3.50

13

0916814004
ref: 13

GASKET(14X19.2X2) (NAS)

€ 2.50
