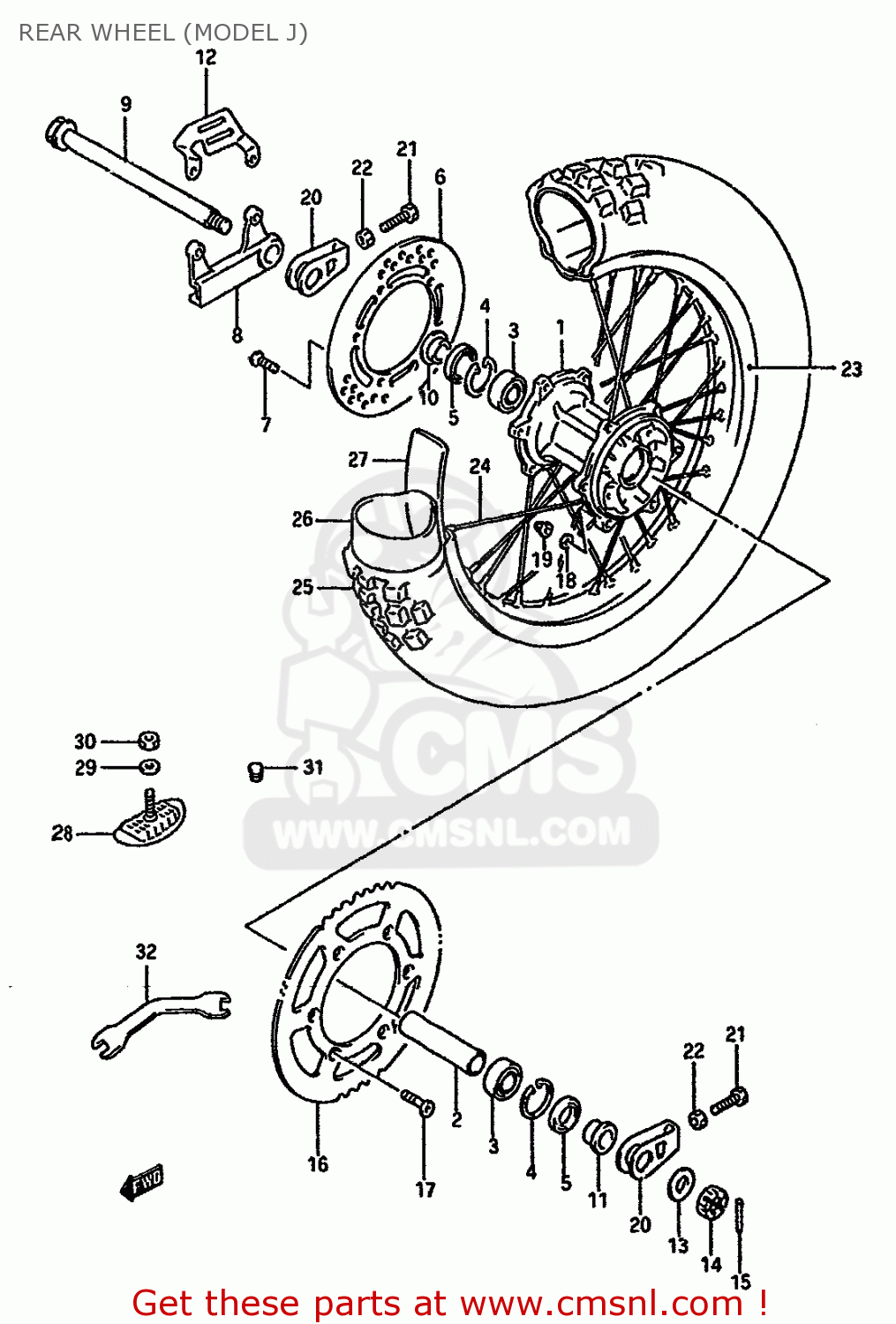

REAR WHEEL (MODEL J)

ref

part #

description

quantity

1

6411000B22
ref: 1

HUB,REAR WHEEL

€ 265.00

2

6473100B22
ref: 2

SPACER,RR HUB BEARING

€ 18.00

3

0812362047
ref: 3

BEARING

€ 17.00

4

0833141478
ref: 4

CIRCLIP,14MM

€ 2.50

5

0928426003
ref: 5

OIL SEAL

€ 9.50

6

6921100B20
ref: 6

DISC,REAR BRAKE

€ 237.00

7

0212206167
ref: 7

SCREW

€ 2.00

8

6972100B30
ref: 8

BRACKET,REAR CALIPER

€ 99.00

9

6471101B30
ref: 9

AXLE,RR

€ 46.50

10

6474100B21
ref: 10

SPACER,RR AXLE,R

€ 12.50

11

6475100B30
ref: 11

SPACER,REAR AXLE,LEFT

€ 15.50

12

6972526C01
ref: 12

GUARD,REAR CALIPER

€ 14.00

13

0916019010
ref: 13

WASHER (19X32X3.2)

€ 5.00

14

0831441188
ref: 14

NUT 18MM

€ 6.00

15

0411140308
ref: 15

PIN,COTTER

€ 1.50

16-1

6451140261
ref: 16-1

SPROCKET,RR(NT:51 AL)

€ 87.50

16-2

6451140271
ref: 16-2
OPT ALUMINIUM

SPROCKET,REAR

€ 99.00

16-3

6451140266
ref: 16-3
OPT ALUMINIUM

SPROCKET,REAR (NT:52)(AL)

€ 118.50

16-4

6451100B11
ref: 16-4
OPT STEEL

SPROCKET,REAR

€ 86.00

16-5

6451100B21
ref: 16-5
OPT STEEL

SPROCKET,RR(NT:51)

€ 66.00

16-6

6451100B31
ref: 16-6
OPT STEEL

SPROCKET,REAR (NT:52,F)

€ 63.00

17

0912008004
ref: 17

SCREW(8X33.5)

€ 3.00

18

0916408011
ref: 18

WASHER

€ 3.50

19

0831931087
ref: 19

NUT

€ 2.50

20

6141000B30
ref: 20

ADJUSTER COMP,CHAIN

€ 21.00

21

0910008271
ref: 21

BOLT L:50

€ 0.00

22

0831012088
ref: 22

NUT

€ 2.00

23

6531101B20
ref: 23

RIM,REAR WHEEL (1.85X18)(A

€ 295.00

24

6532001B20
ref: 24

SPOKE SET,REAR WHEEL

€ 94.00

25-1

6510001B10
ref: 25-1
E4,E24

TIRE

€ 106.50

25-2

6510001B20
ref: 25-2
E2

TIRE,REAR (100/100-18) DUNLOP

€ 106.50

26

6520014540
ref: 26

TUBE ASSEMBLY,WHEEL,INNER

€ 34.00

27

6526114540
ref: 27

PROTECTOR

€ 5.50

28

6527046910
ref: 28

STOPPER,BEAD

€ 30.50

29

0832211088
ref: 29

WASHER

€ 2.00

30

0831022088
ref: 30

NUT 8MM

€ 2.00

31

0925008013
ref: 31

CAP(OD:12)

€ 2.00

32

0981300039
ref: 32

SPANNER,OPEN

€ 8.00

all assemblies
