Buy Suzuki RM Parts Online


REAR CALIPERS (MODEL J)

RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

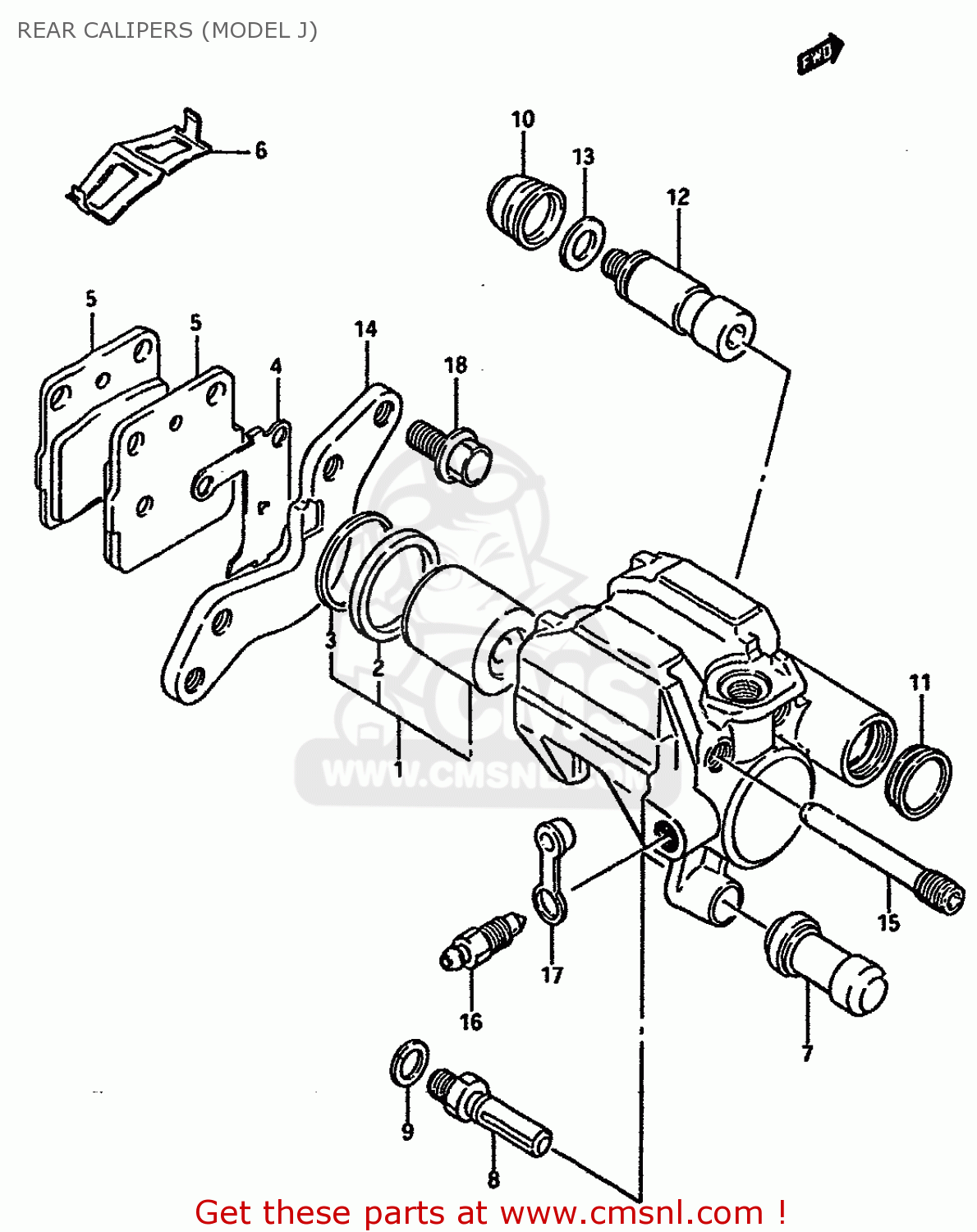

Rear calipers (model j) diagram RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

REAR CALIPERS (MODEL J) RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)
REAR CALIPERS (MODEL J) RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)
REAR CALIPERS (MODEL J) RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)
prices are in EUR
ref
part #
description
quantity
0
6910026C00
ref: 0
CALIPER ASSEMBLY,REAR
€ 322.00
1
6910000820
ref: 1
PISTON SET
€ 30.50
2
5910700B20
ref: 2
SEAL,PISTON
5910700B20
€ 13.00
3
5910800B20
ref: 3
SEAL,DUST
5910800B20
€ 10.50
4
6937200B20
ref: 4
SHIM
6937200B20
€ 7.50
5
6914026C00
ref: 5
PAD (NAS)
6914026C00
€ 49.00
6
5931513A00
ref: 6
SPRING,PAD
5931513A00
€ 4.50
7
5938613A00
ref: 7
BOOT
5938613A00
€ 6.50
8
5938213A00
ref: 8
BOLT,PIN
5938213A00
€ 6.50
9
5931413A00
ref: 9
WASHER,WAVE
5931413A00
€ 2.00
10
5930313A00
ref: 10
BOOT,PIN
5930313A00
€ 5.00
11
5938413A00
ref: 11
DUST SEAL
5938413A00
€ 5.00
12
5930513A01
ref: 12
PIN,SLIDE
5930513A01
€ 10.50
13
5930613A00
ref: 13
SPRING,FRICTION
5930613A00
€ 2.50
14
6935100B20
ref: 14
BRACKET
6935100B20
€ 50.00
15
6934500B20
ref: 15
PIN
6934500B20
€ 9.50
16
5912101A00
ref: 16
BLEEDER
5912101A00
€ 8.50
17
5912201A00
ref: 17
CAP,BLEEDER
5912201A00
€ 4.50
18
0910308238
ref: 18
BOLT L:21
€ 4.50
