MAGNETO (MODEL H/J)

RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

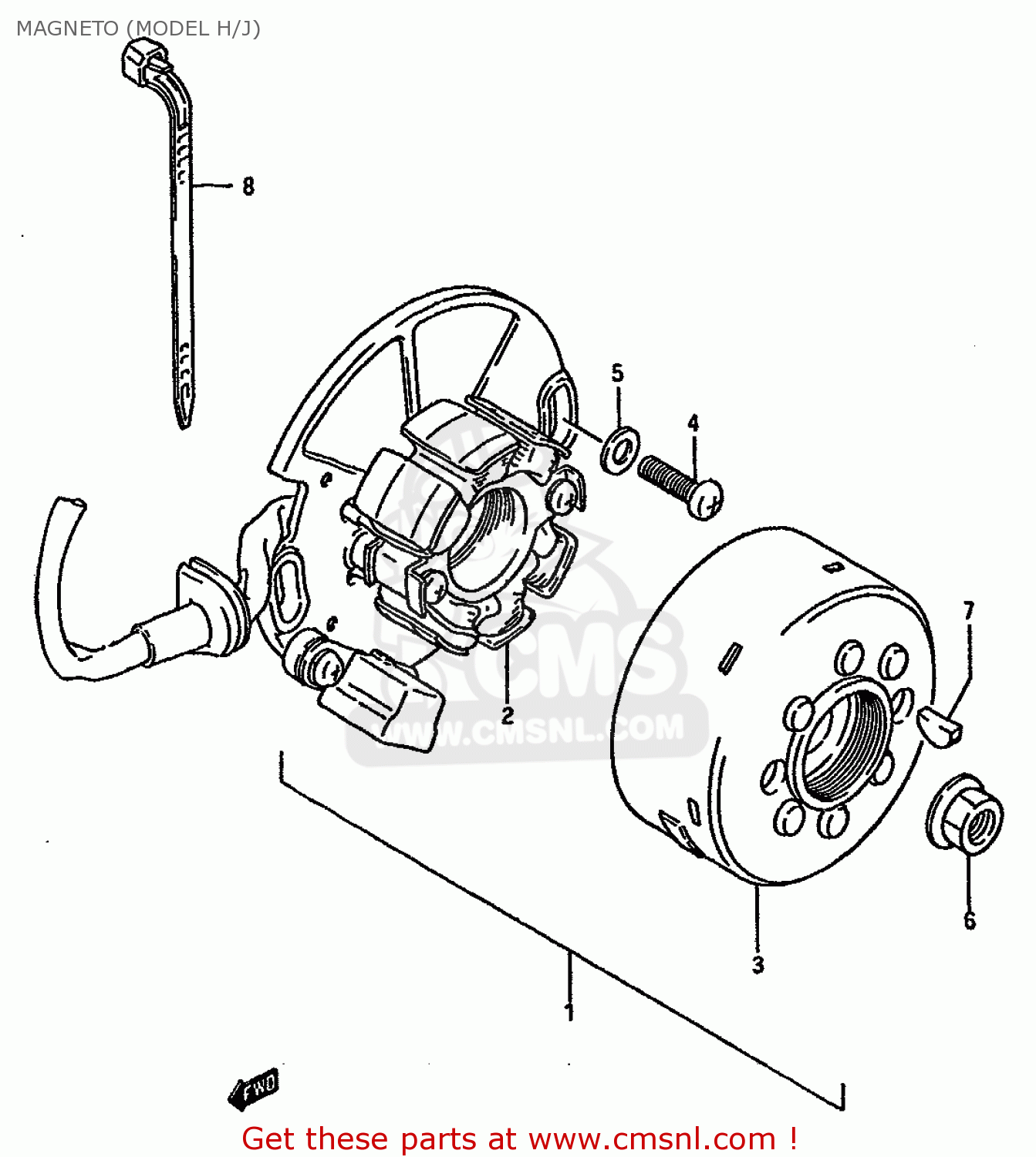

Magneto (model h/j) diagram RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

MAGNETO (MODEL H/J) RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

MAGNETO (MODEL H/J) RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

prices are in EUR

ref

part #

description

quantity

1-1

3210001B30
ref: 1-1
MODEL H

MAGNETO ASSEMBLY

€ 611.50

1-2

3210001B31
ref: 1-2
MODEL J

MAGNETO ASSEMBLY

€ 611.50

2-1

3210101B30
ref: 2-1
MODEL H

STATOR ASSEMBLY

€ 395.00

2-2

3210101B31
ref: 2-2
MODEL J

STATOR ASSEMBLY

€ 395.00

3-1

3210201B30
ref: 3-1
MODEL H

ROTOR ASSEMBLY

€ 253.50

3-2

3210201B31
ref: 3-2
MODEL J

ROTOR

€ 253.50

4

0211206208
ref: 4

SCREW

€ 2.00

5

0832221067
ref: 5

WASHER

€ 2.00

6

0831616108
ref: 6

NUT

€ 2.00

7

0834131049
ref: 7

KEY 4MM

€ 3.50

8-1

0940714403
ref: 8-1

CLAMP(L:125)

€ 2.50

8-2

0940725401
ref: 8-2

CLAMP(L:235)

€ 4.00
