GEAR SHIFTING

RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

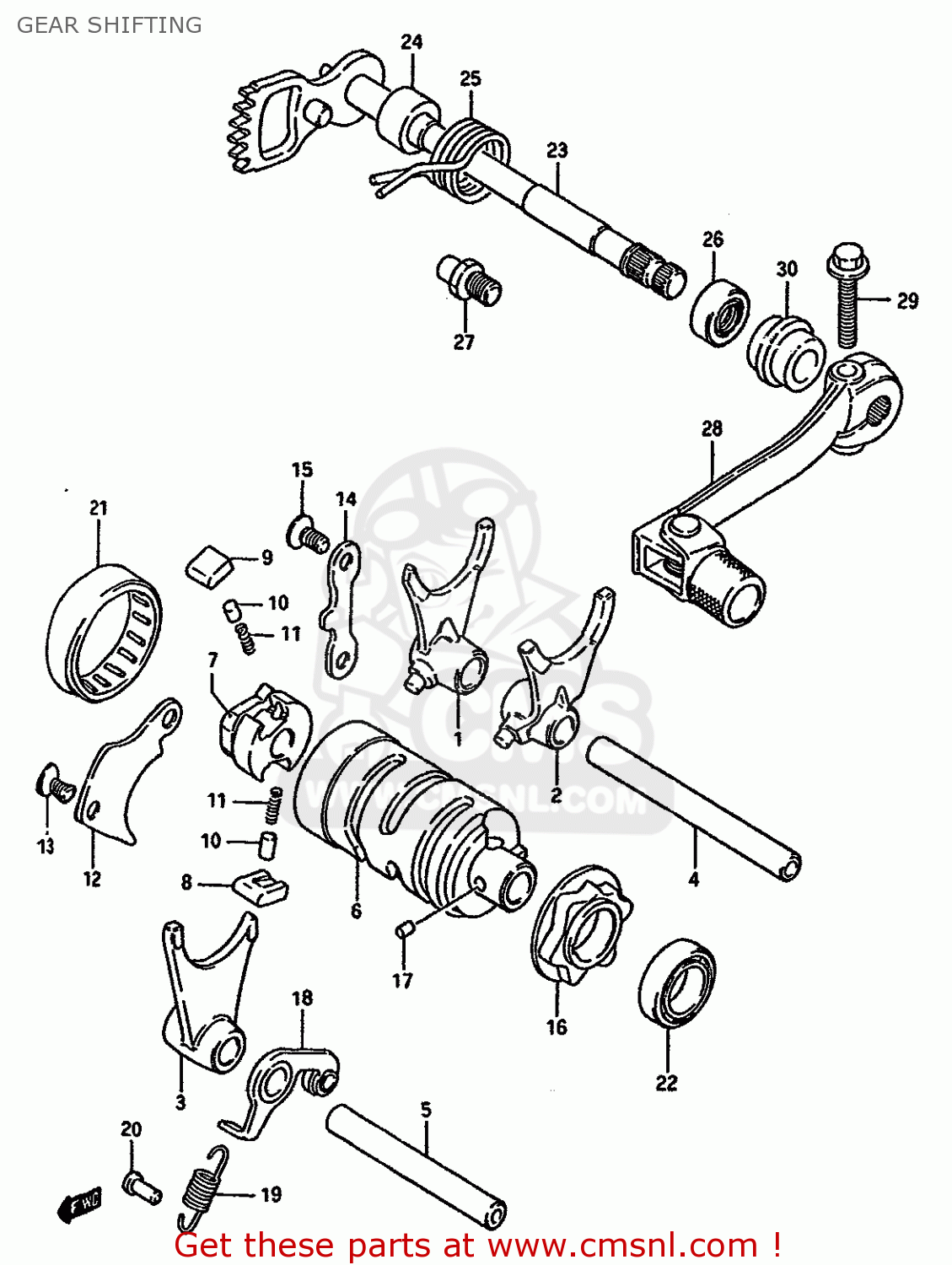

Gear shifting diagram RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

GEAR SHIFTING RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)
GEAR SHIFTING RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)
GEAR SHIFTING RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
2521141301
ref: 1
FORK,GEAR SHIFT NO.1
2521141301
€ 71.50
2-1
2522114500
ref: 2-1
MODEL G/H
FORK,GEAR SHIFT NO.2
€ 65.00
2-2
2522114501
ref: 2-2
MODEL J
FORK,GEAR SHIFT NO.2
2522114501
€ 65.00
3-1
2523114500
ref: 3-1
MODEL G/H
FORK,GEAR SHIFT NO.3
2523114500
€ 23.50
3-2
2523114501
ref: 3-2
MODEL J
FORK,GEAR SHIFT NO.3
2523114501
€ 23.50
4
2541114500
ref: 4
SHAFT,GEAR SHIFT FORK
2541114500
€ 14.50
5
2542114500
ref: 5
SHAFT,GEAR SHIFT FORK
2542114500
€ 13.50
6
2531014501
ref: 6
CAM,GEAR SHIFT
2531014501
€ 42.50
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
0926105003
€ 1.50
11
0944004003
ref: 11
SPRING
0944004003
€ 1.50
12
2533111001
ref: 12
LIFTER,GEAR SHIFT PAWL
2533111001
€ 2.50
13
0212206128
ref: 13
SCREW
0212206128
€ 3.00
14
2534114500
ref: 14
GUIDE,GEAR SHIFT CAM
2534114500
€ 8.50
15
0212206128
ref: 15
SCREW
0212206128
€ 3.00
16-1
2538114310
ref: 16-1
MODEL G/H, 25381-00B
PLATE,GEAR SHIFT CAM STOPPER
2538114310
€ 10.00
16-2
2538100B00
ref: 16-2
MODEL J
PLATE,GEAR SHIFT CAM STOPPER
2538100B00
€ 10.50
17
0422104089
ref: 17
PIN
0422104089
€ 1.50
18
2535014501
ref: 18
STOPPER,GEAR SHIFTING
2535014501
€ 7.50
19
0944308036
ref: 19
SPRING
0944308036
€ 4.00
20
0922304001
ref: 20
RIVET
0922304001
€ 1.50
21
0926341001
ref: 21
BEARING
0926341001
€ 32.50
22
0811369030
ref: 22
BEARING
0811369030
€ 14.00
23
2551001B00
ref: 23
SHAFT COMP,GEAR SHIFTING
€ 73.50
24
0918012083
ref: 24
SPACER(12X20X15.3)
0918012083
€ 2.50
25
0944426017
ref: 25
SPRING
0944426017
€ 5.00
26
0928512002
ref: 26
OIL SEAL
0928512002
€ 7.00
27
2567101000
ref: 27
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
28
2560014500
ref: 28
LEVER ASSY,GEAR SHIFT
2560014500
€ 69.50
29
0151706307
ref: 29
BOLT
0151706307
€ 2.00
30
0918012115
ref: 30
CUSHION
0918012115
€ 8.50
