TRANSMISSION

RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

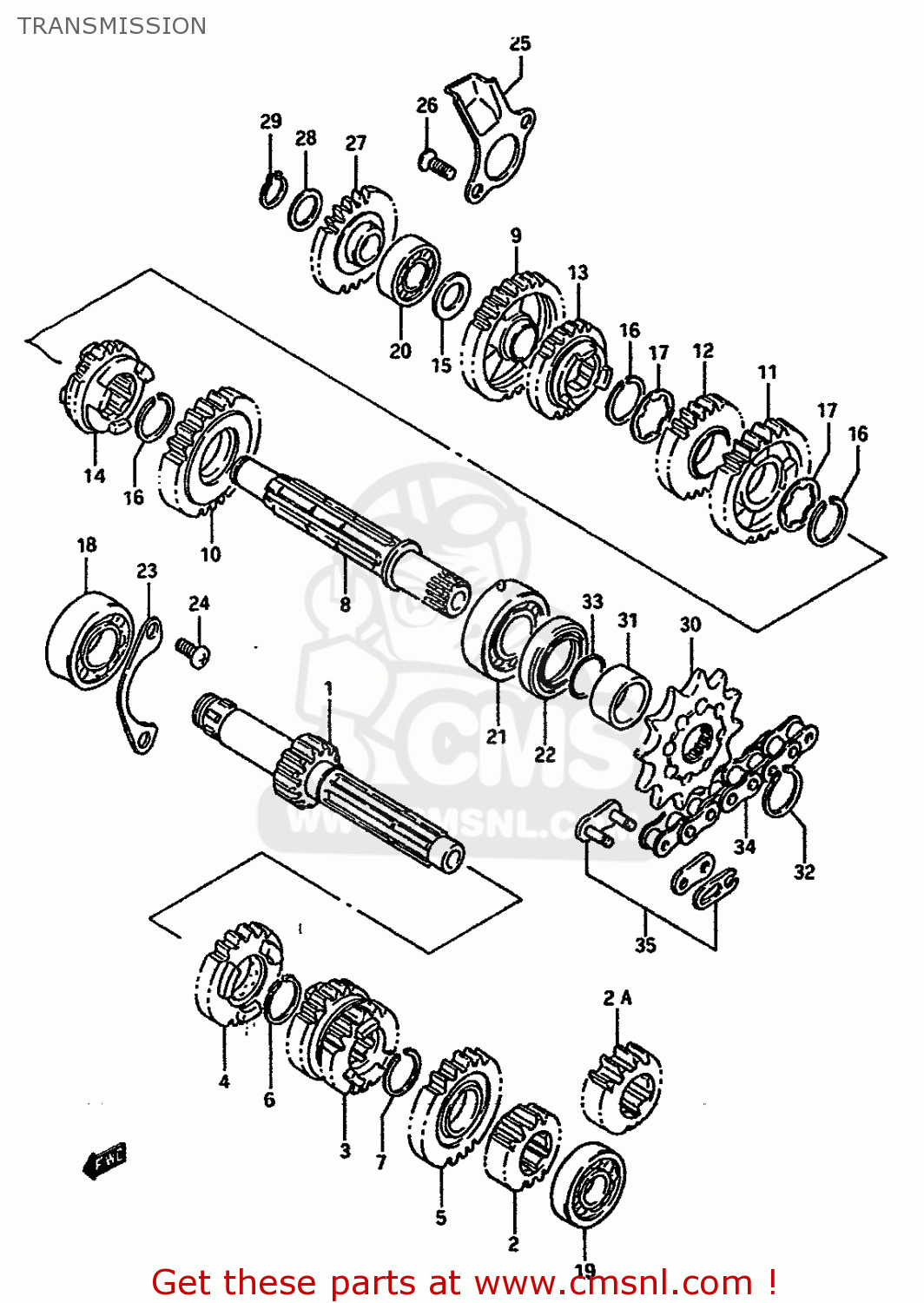

Transmission diagram RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

TRANSMISSION RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)
TRANSMISSION RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)
TRANSMISSION RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)
prices are in EUR
ref
part #
description
quantity
1-1
2412101B01
ref: 1-1
MODEL G
SHAFT,COUNTER
2412101B01
€ 82.50
1-2
2412101B02
ref: 1-2
MODEL H
SHAFT,COUNTER
€ 82.50
1-3
2412101B41
ref: 1-3
MODEL J
SHAFT,COUNTER
€ 173.00
2
2422101B01
ref: 2
MODEL G/H
GEAR,SECOND DRIVE (NT:13)
2422101B01
€ 24.00
2A
2422101B40
ref: 2A
MODEL J
GEAR,SECOND DRIVE
2422101B40
€ 60.00
3-1
2423101B01
ref: 3-1
MODEL G/H
GEAR,THIRD & FOURTH DRIVE,N
2423101B01
€ 56.50
3-2
2423101B41
ref: 3-2
MODEL J
GEAR,THIRD & FOURTH DRIVE
€ 83.50
4
2425001B00
ref: 4
GEAR,FIFTH DRIVE (NT:19)
2425001B00
€ 56.50
5-1
2426101B01
ref: 5-1
MODEL G/H
GEAR,SIXTH DRIVE (NT:20)
2426101B01
€ 67.50
5-2
2426101B40
ref: 5-2
MODEL J
GEAR,SIXTH DRIVE (NT:20)
€ 81.50
6
0938020007
ref: 6
CIRCLIP
0938020007
€ 3.00
7
0938020012
ref: 7
CIRCLIP
0938020012
€ 2.50
8
2413114510
ref: 8
SHAFT,DRIVE
2413114510
€ 110.00
9-1
2431101B02
ref: 9-1
MODEL G/H
GEAR,FIRST DRIVEN (NT:26)
2431101B02
€ 45.00
9-2
2431101B40
ref: 9-2
MODEL J
GEAR,FIRST DRIVEN
€ 72.00
10-1
2432101B02
ref: 10-1
MODEL G/H
GEAR,SECOND DRIVEN (NT:22)
2432101B02
€ 26.50
10-2
2432101B40
ref: 10-2
MODEL J
GEAR,SECOND DRIVEN
€ 148.00
11
2433101B02
ref: 11
GEAR,THIRD DRIVEN
€ 65.50
12
2434101B02
ref: 12
GEAR,FOURTH DRIVEN
€ 41.50
13
2435101B02
ref: 13
GEAR,FIFTH DRIVEN
€ 67.50
14
2436101B02
ref: 14
GEAR,SIXTH DRIVEN
€ 37.00
15
0821115261
ref: 15
WASHER,THRUST
0821115261
€ 2.50
16
0938022006
ref: 16
CIRCLIP
0938022006
€ 3.00
17
0916722011
ref: 17
WASHER,LOCK
0916722011
€ 3.00
18
0926220062
ref: 18
BEARING
0926220062
€ 28.00
19
0812362027
ref: 19
FROM 08113-62027
BEARING
0812362027
€ 14.50
20
0812362027
ref: 20
FROM 08113-62027
BEARING
0812362027
€ 14.50
21
0926220043
ref: 21
BEARING(20X47X14)
0926220043
€ 27.00
22
0928325035
ref: 22
SEAL,OIL(25X40X7)
0928325035
€ 6.50
23
2474101B00
ref: 23
RETAINER,CENTER SHAFT BEARING
2474101B00
€ 4.00
24
0211206128
ref: 24
SCREW 6X12
0211206128
€ 2.00
25
2475101B01
ref: 25
PLATE,DRIVESHAFT BEARING
2475101B01
€ 11.50
26
0212206128
ref: 26
SCREW
0212206128
€ 3.00
27
2626001B00
ref: 27
GEAR,KICK STARTER IDLE
2626001B00
€ 32.50
28
0821115241
ref: 28
WASHER,THRUST
€ 4.00
29
0833131159
ref: 29
CIRCLIP,15MM
0833131159
€ 2.00
30-1
2751114111
ref: 30-1
MODEL G/H
SPROCKET,ENGINE
2751114111
€ 19.00
30-2
2751114121
ref: 30-2
MODEL J
SPROCKET,ENGINE
2751114121
€ 27.50
30-3
2751114101
ref: 30-3
OPT
SPROCKET,ENGINE
2751114101
€ 23.50
30-4
2751114121
ref: 30-4
OPT
SPROCKET,ENGINE
2751114121
€ 27.50
31
0918020102
ref: 31
SPACER(20X25X12.8)
0918020102
€ 8.00
32
0938020007
ref: 32
CIRCLIP
0938020007
€ 3.00
33
0928020001
ref: 33
O RING(D:1,ID:19.5)
0928020001
€ 2.00
34
2760001B10114
ref: 34
CHAIN ASSEMBLY,DRIVE
€ 72.50
35-1
2762001B10
ref: 35-1
JOINT ASSEMBLY,CHAIN
€ 5.00
35-2
2762001B40
ref: 35-2
JOINT ASSEMBLY,CHAIN
€ 5.00
