Buy Suzuki RM Parts Online


RIGHT HANDLE SWITCH

RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

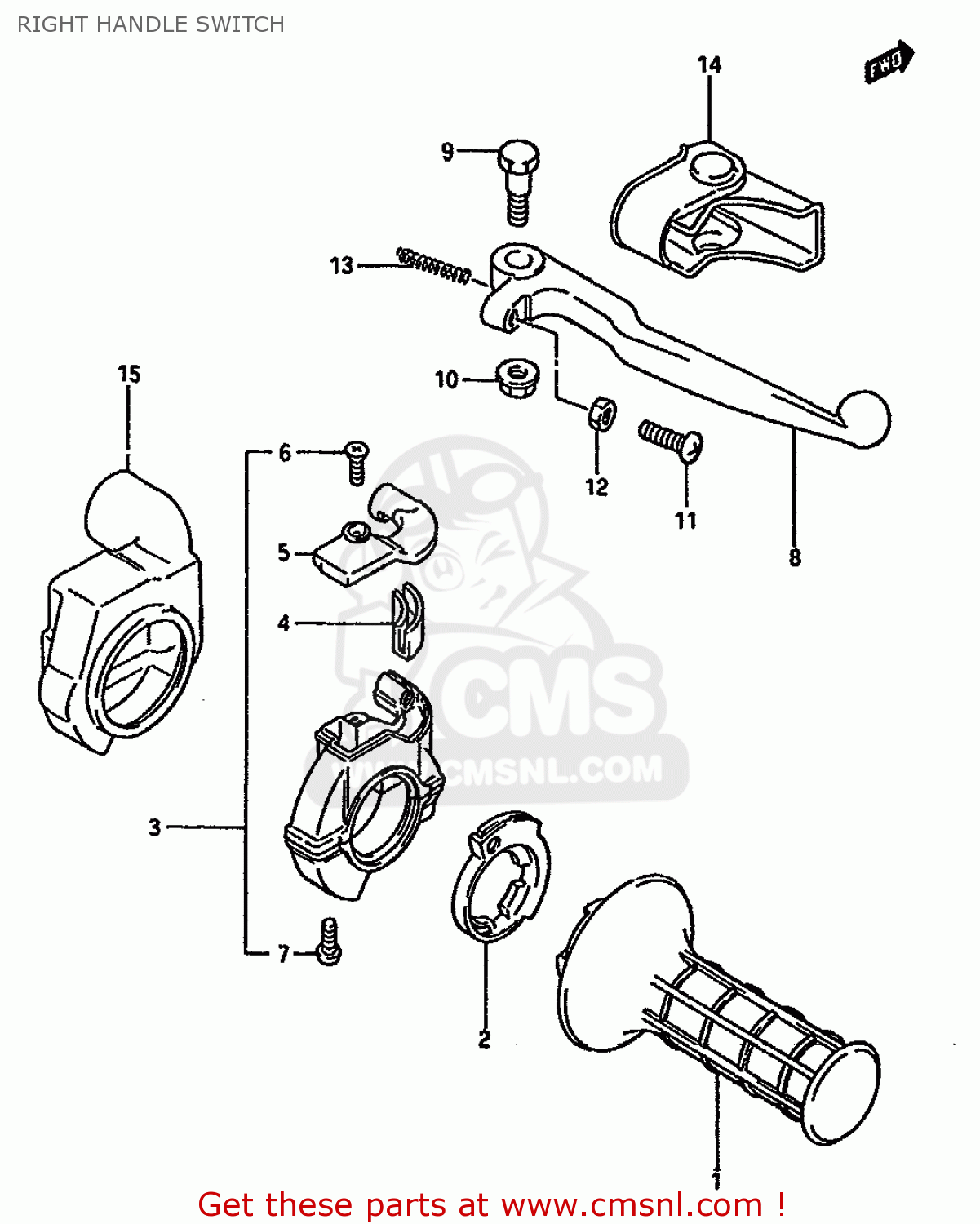

Right handle switch diagram RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

RIGHT HANDLE SWITCH RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)
RIGHT HANDLE SWITCH RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)
RIGHT HANDLE SWITCH RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
5711014300
ref: 1
GRIP,THROTTLE
5711014300
€ 25.00
2-1
5711420410
ref: 2-1
MODEL G
ROTOR,THROTTLE GRIP
5711420410
€ 6.00
2-2
5711414301
ref: 2-2
MODEL H/J
ROTOR,THROTTLE GRIP
5711414301
€ 6.50
3-1
5710020411
ref: 3-1
MODEL G
CASE ASSY,THROTTLE
5710020411
€ 53.50
3-2
5710014302
ref: 3-2
MODEL H/J
CASE ASSY,THROTTLE
5710014302
€ 57.50
4-1
5712220410
ref: 4-1
MODEL G
GUIDE PIECE,THROTTLE
5712220410
€ 4.50
4-2
5712214301
ref: 4-2
MODEL H/J
GUIDE PIECE,THROTTLE
5712214301
€ 4.00
5-1
5712920411
ref: 5-1
MODEL G
COVER,THROTTLE CASE
5712920411
€ 8.50
5-2
5712914302
ref: 5-2
MODEL H/J
COVER,THROTTLE CASE
5712914302
€ 8.50
6
0213204065
ref: 6
SCREW
0213204065
€ 2.50
7
0211205168
ref: 7
SCREW
0211205168
€ 2.50
8
5742114502
ref: 8
LEVER,BRAKE
5742114502
€ 16.00
9
5743114500
ref: 9
BOLT,BRAKE LEVER
5743114500
€ 4.00
10
5744214500
ref: 10
NUT,BRAKE LEVER
5744214500
€ 2.50
11
5743114511
ref: 11
BOLT,ADJUST
5743114511
€ 3.50
12
0831012055
ref: 12
NUT ,5MM
0831012055
€ 2.50
13
5731814501
ref: 13
SPRING,RETURN
5731814501
€ 3.00
14
5734114501
ref: 14
COVER,BRAKE LEVER
5734114501
€ 5.00
15
5712914501
ref: 15
COVER,THROTTLE CASE
5712914501
€ 7.50
