HANDLEBAR

RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

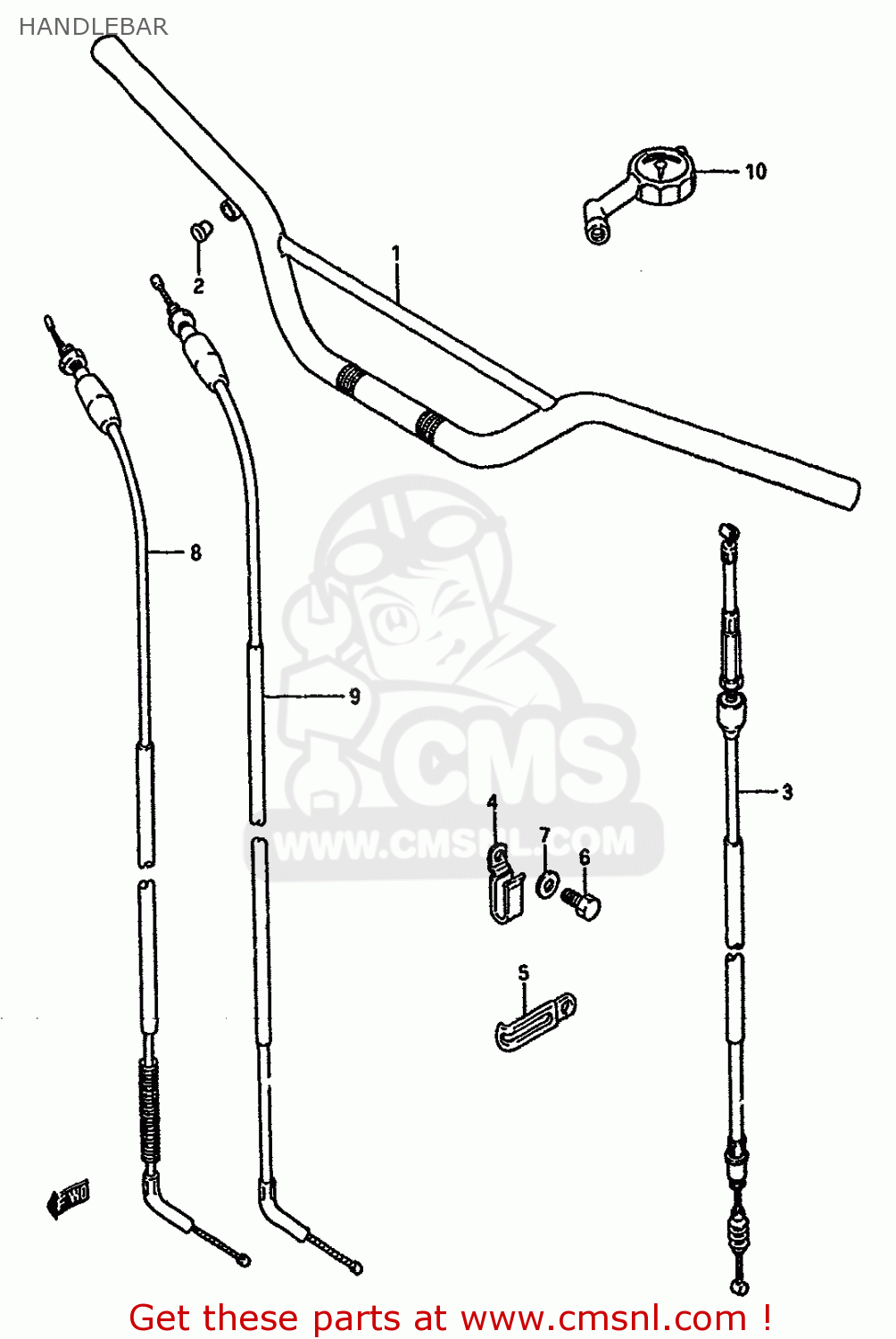

Handlebar diagram RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

HANDLEBAR RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

HANDLEBAR RM125 1986 (G) GENERAL FRANCE AUSTRALIA (E01 E04 E24)

prices are in EUR

ref

part #

description

quantity

1-1

561101461025F
ref: 1-1
MODEL G/H

HANDLEBAR

€ 82.50

1-2

5611026C00291
ref: 1-2
MODEL J

HANDLEBAR

€ 94.50

2

0925010001
ref: 2

CAP(OD:14)

€ 1.50

3-1

5821001B00
ref: 3-1
MODEL G

CABLE ASSEMBLY,CLUTCH

€ 40.00

3-2

5821001B01
ref: 3-2
MODEL H/J

CABLE ASSEMBLY,CLUTCH

€ 40.00

4

0940306307
ref: 4
MODEL G

CLAMP

€ 4.50

5

0940406417
ref: 5
MODEL H/J

CLAMP

€ 3.00

6

0110706127
ref: 6

BOLT

€ 2.00

7

0832221067
ref: 7

WASHER

€ 2.00

8

5830014500
ref: 8
MODEL G/H

CABLE ASSEMBLY,THROTTLE

€ 33.00

9

5830026C00
ref: 9
MODEL J

CABLE ASSEMBLY,THROTTLE

€ 27.00

10

9620041330
ref: 10
MODEL G

GAUGE ASSY,AIR PRESSURE

€ 77.50
