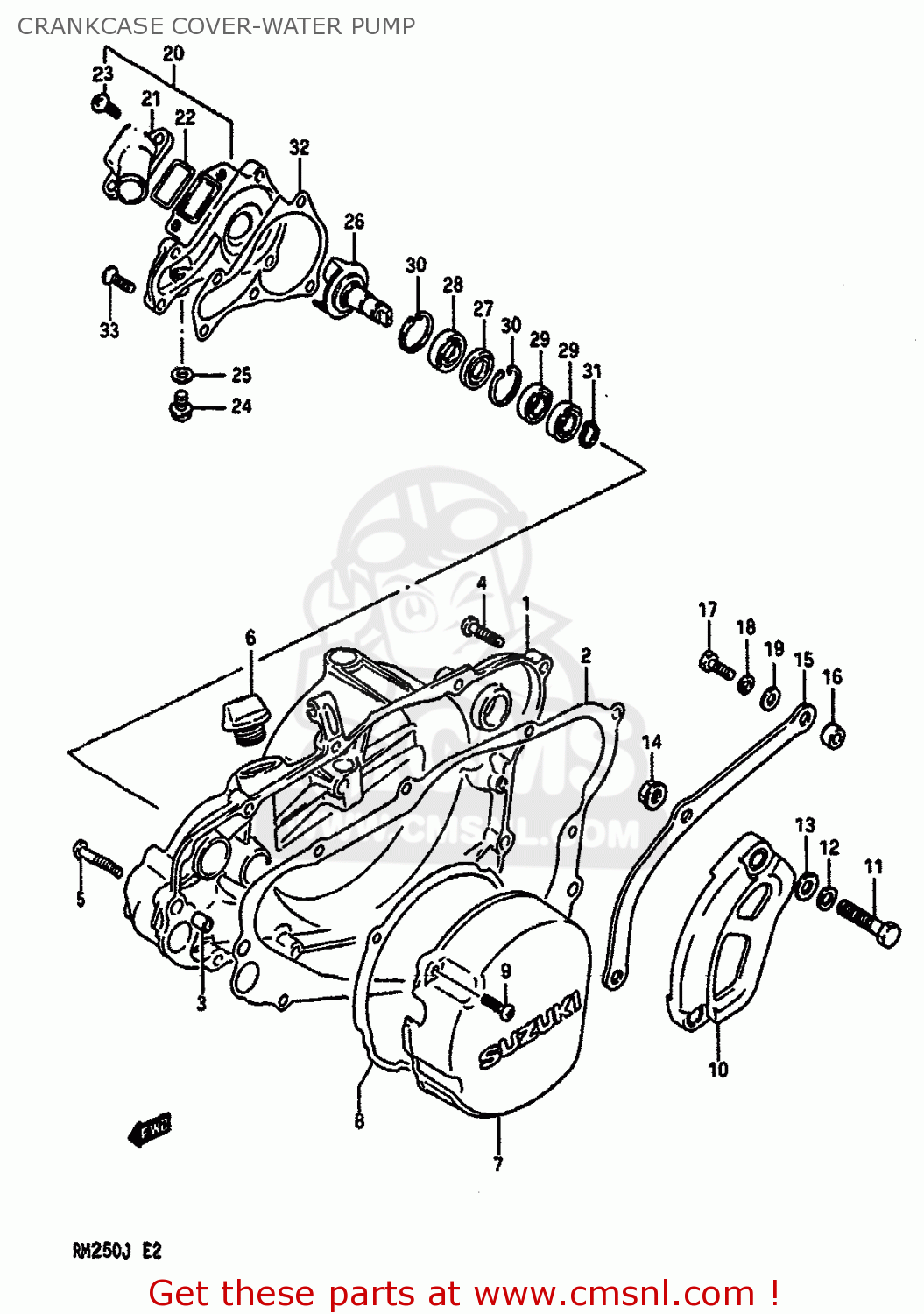

CRANKCASE COVER-WATER PUMP

ref

part #

description

quantity

1

1134126C00
ref: 1

COVER,CLUTCH

€ 208.00

2

1148200B20
ref: 2

GASKET,CLUTCH COVER

€ 28.50

3

0421109129
ref: 3

PIN

€ 2.00

4

0211206258
ref: 4

SCREW

€ 2.00

5

0211206357
ref: 5

SCREW

€ 2.50

6

0920020810
ref: 6

PLUG SET

€ 8.00

7

1135100B20
ref: 7

COVER,MAGNETO

€ 140.00

8

1148300B20
ref: 8

GASKET,MAGNETO COVER (MCA)

€ 7.50

9

0211205168
ref: 9

SCREW

€ 2.50

10

1136000B00
ref: 10

COVER,SPROCKET

€ 19.50

11

0110708307
ref: 11

BOLT

€ 2.50

12

0832121088
ref: 12

LOCK WASHER

€ 2.00

13

0832211088
ref: 13

WASHER

€ 2.00

14

0831616088
ref: 14

NUT

€ 2.50

15-1

2764100B10
ref: 15-1
FOR NT:13

PLATE,FRONT CHAIN GUIDE

€ 8.50

15-2

2764100B01
ref: 15-2
OPT FOR NT:14

PLATE,FR CHAIN GUIDE

€ 11.50

15-3

2764100B20
ref: 15-3
OPT FOR NT:15

PLATE,FRONT CHAIN GUIDE

€ 10.00

16

0918006141
ref: 16

SPACER (6.5X12X8)

€ 4.00

17

0110706205
ref: 17

BOLT

€ 2.00

18

0832121064
ref: 18

WASHER,LOCK

€ 2.00

19

0832221064
ref: 19

WASHER

€ 2.00

20

1741000B20
ref: 20

CASE ASSEMBLY,WATER PUMP

€ 107.00

21

1742100B20
ref: 21

CONNECTOR,WATER INLET

€ 32.50

22

1741414300
ref: 22

O RING,WATER PUMP CONNECTOR

€ 3.00

23

0211206167
ref: 23

SCREW

€ 2.50

24

1741520920
ref: 24

BOLT,DRAIN

€ 5.00

25

0916808008
ref: 25

GASKET 8.2X14X1 (NAS)

€ 1.00

26

1749126C00
ref: 26

IMPELLER,WATER PUMP

€ 41.50

27

0928212006
ref: 27

SEAL,OIL(12X24X3.6)

€ 7.00

28

0928912004
ref: 28

SEAL,OIL(12X24X6.4)

€ 9.00

29

0926210004
ref: 29

BEARING(10X22X6)

€ 20.50

30

0833141246
ref: 30

CIRCLIP

€ 2.50

31

0833131106
ref: 31

CIRCLIP,10MM

€ 2.00

32

1743100B30
ref: 32

GASKET,WATER PUMP CASE (MCA)

€ 8.50

33

0212206208
ref: 33

SCREW

€ 2.00
