EXHAUST VALVE

RM250 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

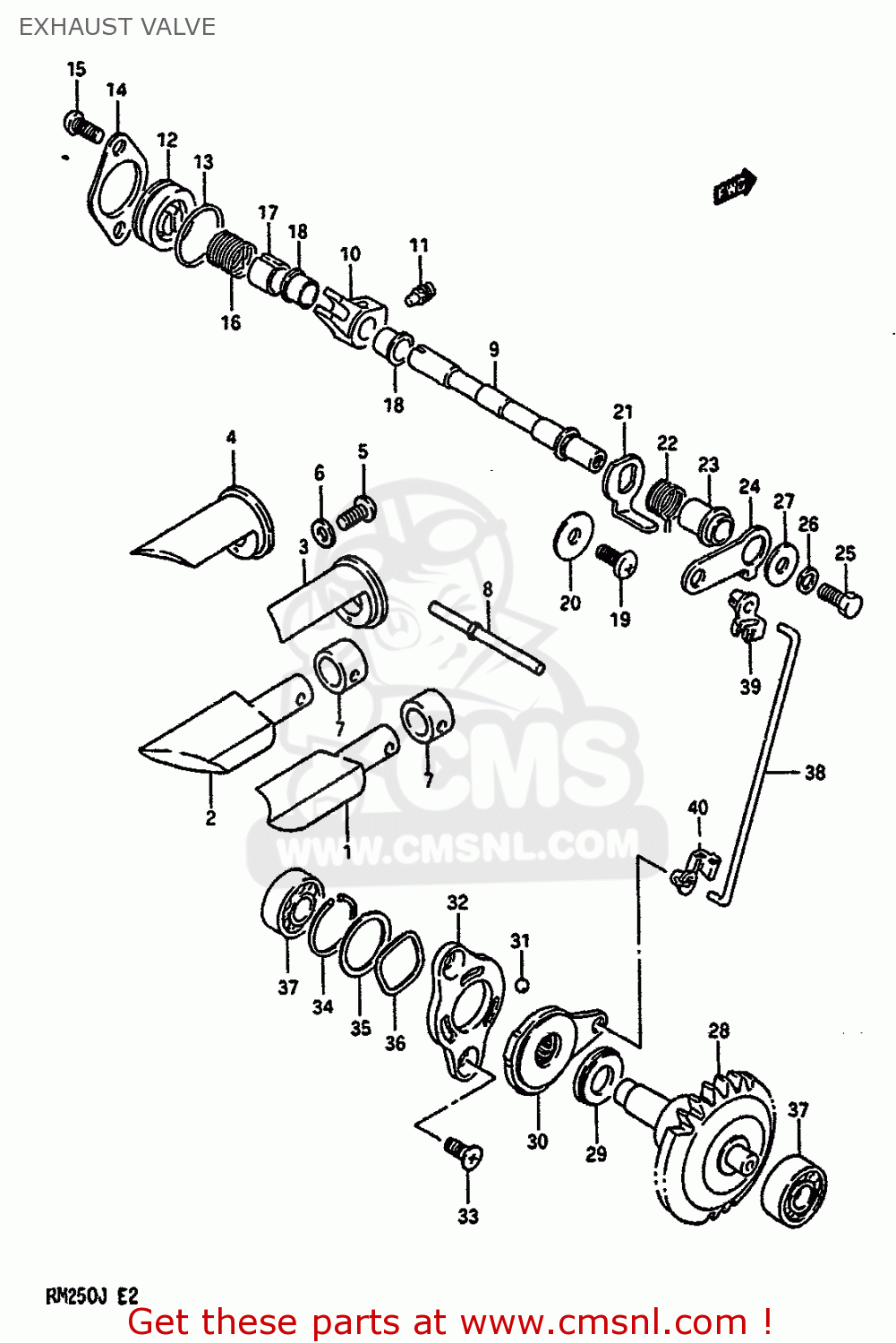

Exhaust valve diagram RM250 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

EXHAUST VALVE RM250 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
EXHAUST VALVE RM250 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
EXHAUST VALVE RM250 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
1
1125426C01
ref: 1
VALVE,EXHAUST,R
1125426C01
€ 154.50
2
1125526C01
ref: 2
VALVE,EXHAUST,L
1125526C01
€ 202.00
3
1126126C02
ref: 3
GUIDE,EXHAUST VALVE,R
1126126C02
€ 132.50
4
1126226C02
ref: 4
GUIDE,EXHAUST VALVE,L
1126226C02
€ 151.00
5
0211205128
ref: 5
SCREW
€ 2.50
6
0832221057
ref: 6
WASHER
0832221057
€ 2.50
7
1126326C00
ref: 7
HOLDER,EXHAUST VALVE
€ 13.50
8
1125301B31
ref: 8
PIN,EXHAUST VALVE 48.5MM
1125301B31
€ 20.50
9
1125900B22
ref: 9
SHAFT,EXHAUST VALVE
1125900B22
€ 52.00
10
1126400B22
ref: 10
ARM,EXHAUST VALVE SHAFT
€ 17.00
11
0913406011
ref: 11
SCREW
€ 4.50
12
1125801B00
ref: 12
CAP,EXHAUST VALVE
1125801B00
€ 52.00
13
0928023002
ref: 13
O RING(D:1.9,ID:22.6)
0928023002
€ 2.50
14
1126500B21
ref: 14
RETAINER,EXHAUST VALVE
€ 2.50
15
0211205128
ref: 15
SCREW
€ 2.50
16
0944416005
ref: 16
SPRING
0944416005
€ 4.00
17
1126900B20
ref: 17
SPACER,EXHAUST VALVE SPRING
1126900B20
€ 19.00
18
0930108008
ref: 18
BUSH
0930108008
€ 15.50
19
0211206128
ref: 19
SCREW 6X12
0211206128
€ 2.00
20
0821206201
ref: 20
WASHER
0821206201
€ 1.50
21
1126700B20
ref: 21
LEVER,EXHAUST VALVE NO
€ 5.50
22
0944415008
ref: 22
SPRING
0944415008
€ 6.00
23
1126801B00
ref: 23
SPACER,EXHAUST VALVE
1126801B00
€ 8.50
24
1126600B20
ref: 24
LEVER,EXHAUST VALVE NO
€ 3.50
25
0110405126
ref: 25
BOLT
€ 1.50
26
0832121056
ref: 26
LOCK WASHER
0832121056
€ 3.00
27
0916005017
ref: 27
WASHER (5.5X16X1.2)
0916005017
€ 2.50
28
1267000B30
ref: 28
GOVERNOR ASSEMBLY,EXHAUST
1267000B30
€ 82.50
29
0926310002
ref: 29
BEARING(10X22X2.8)
0926310002
€ 8.50
30
1268001820
ref: 30
ACTUATOR,EXHAUST VALVE
1268001820
€ 47.50
31
0611106003
ref: 31
BALL
0611106003
€ 1.50
32
1268200B20
ref: 32
STARTER,EXHAUST VALVE ACTUATOR
1268200B20
€ 25.00
33
0912005003
ref: 33
SCREW(5X10)
0912005003
€ 2.00
34
0938019003
ref: 34
CIRCLIP
0938019003
€ 2.50
35
0918119004
ref: 35
SHIM(19.1X25X0.3)
0918119004
€ 4.00
36
0916419001
ref: 36
WASHER
0916419001
€ 7.00
37
0926208005
ref: 37
BEARING(8X22X7)
0926208005
€ 12.50
38
1268500B20
ref: 38
ROD,EXHAUST VALVE
€ 4.00
39
1268601B00
ref: 39
BUSH,EXHAUST VALVE ROD NO.1
1268601B00
€ 2.00
40
1268701B00
ref: 40
BUSH,EXHAUST VALVE ROD NO.2
1268701B00
€ 2.00
