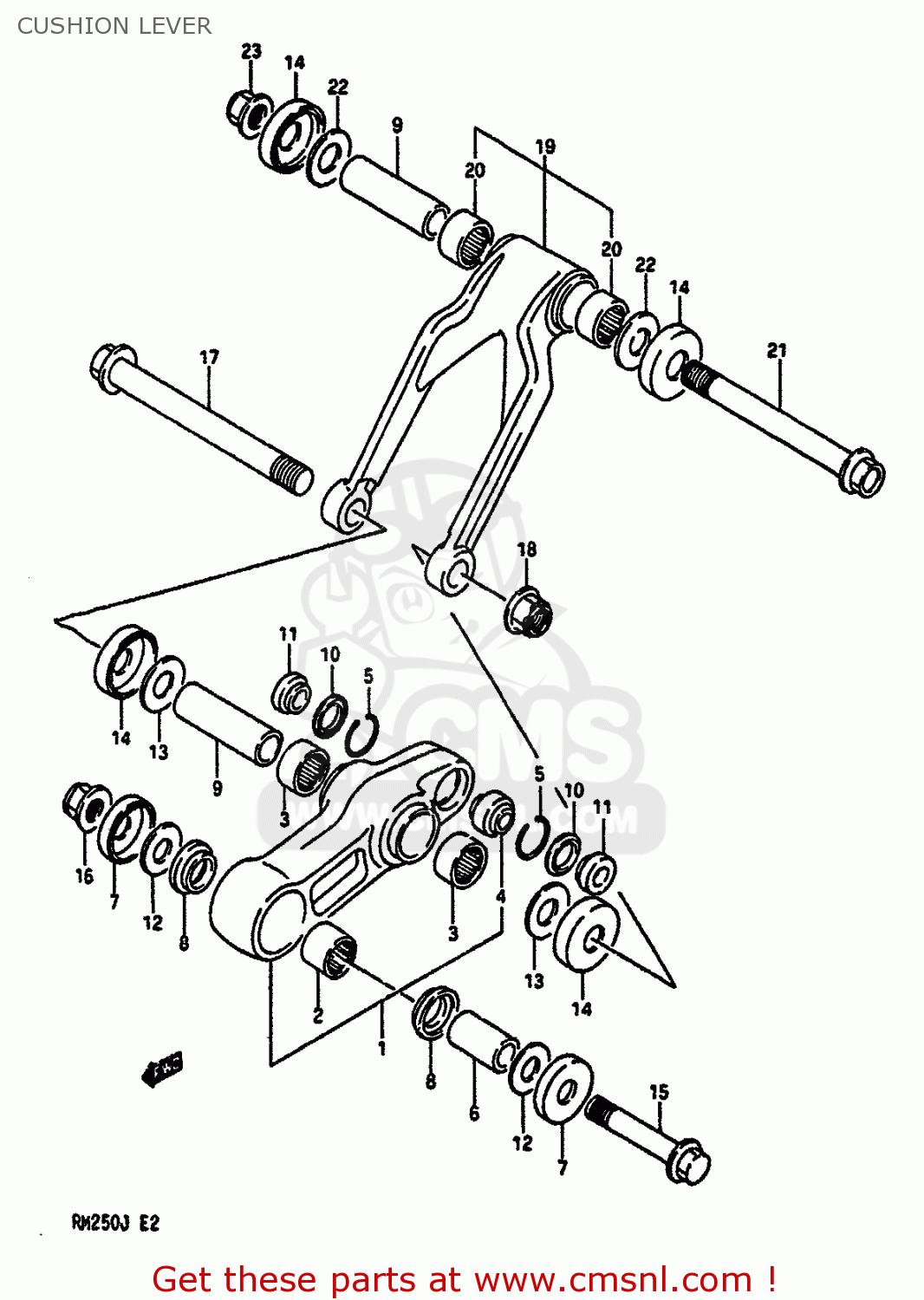

CUSHION LEVER

ref

part #

description

quantity

1

6260026830
ref: 1

LEVER SET,REAR CUSHION

€ 387.00

2

0926320053
ref: 2

BEARING(20X27X25)

€ 15.50

3

0926320063
ref: 3

BEARING(20X27X20)

€ 34.00

4

6217500B00
ref: 4

BEARING,RR CUSHION LEVER

€ 66.00

5

6227714200
ref: 5

RING

€ 1.50

6

6231700B20
ref: 6

SPACER,REAR CUSHION LEVER

€ 9.00

7

6126200B00
ref: 7

COVER,REAR SWING ARM DUST

€ 5.00

8

6231601B20
ref: 8

COLLAR,RR CUSHION LEVER FR

€ 13.50

9

6264600B20
ref: 9

SPACER,REAR CUSHION LEVER

€ 18.50

10

6222614520
ref: 10

SEAL,DUST RR SHOCK ABSORBER

€ 12.50

11

6268414520
ref: 11

COLLAR

€ 7.00

12

0821112281
ref: 12

WASHER

€ 2.00

13

0821114322
ref: 13

WASHER

€ 2.50

14

6268301B00
ref: 14

DUST SEAL,RR C

€ 7.00

15

6265800B20
ref: 15

BOLT,RR CUSHION LEVER FR

€ 8.50

16

0831931128
ref: 16

NUT 12MM

€ 4.00

17

6262101B00
ref: 17

SHAFT,RR CUSHION LEVER

€ 12.50

18

0831931148
ref: 18

NUT

€ 9.00

19

6260001890
ref: 19

LEVER SET,REAR CUSHION

€ 139.50

20

0926320063
ref: 20

BEARING(20X27X20)

€ 34.00

21

6262200B20
ref: 21

BOLT,REAR CUSHION ROD

€ 16.50

22

0821114322
ref: 22

WASHER

€ 2.50

23

0831931148
ref: 23

NUT

€ 9.00
