FRAME-SEAT

RM250 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

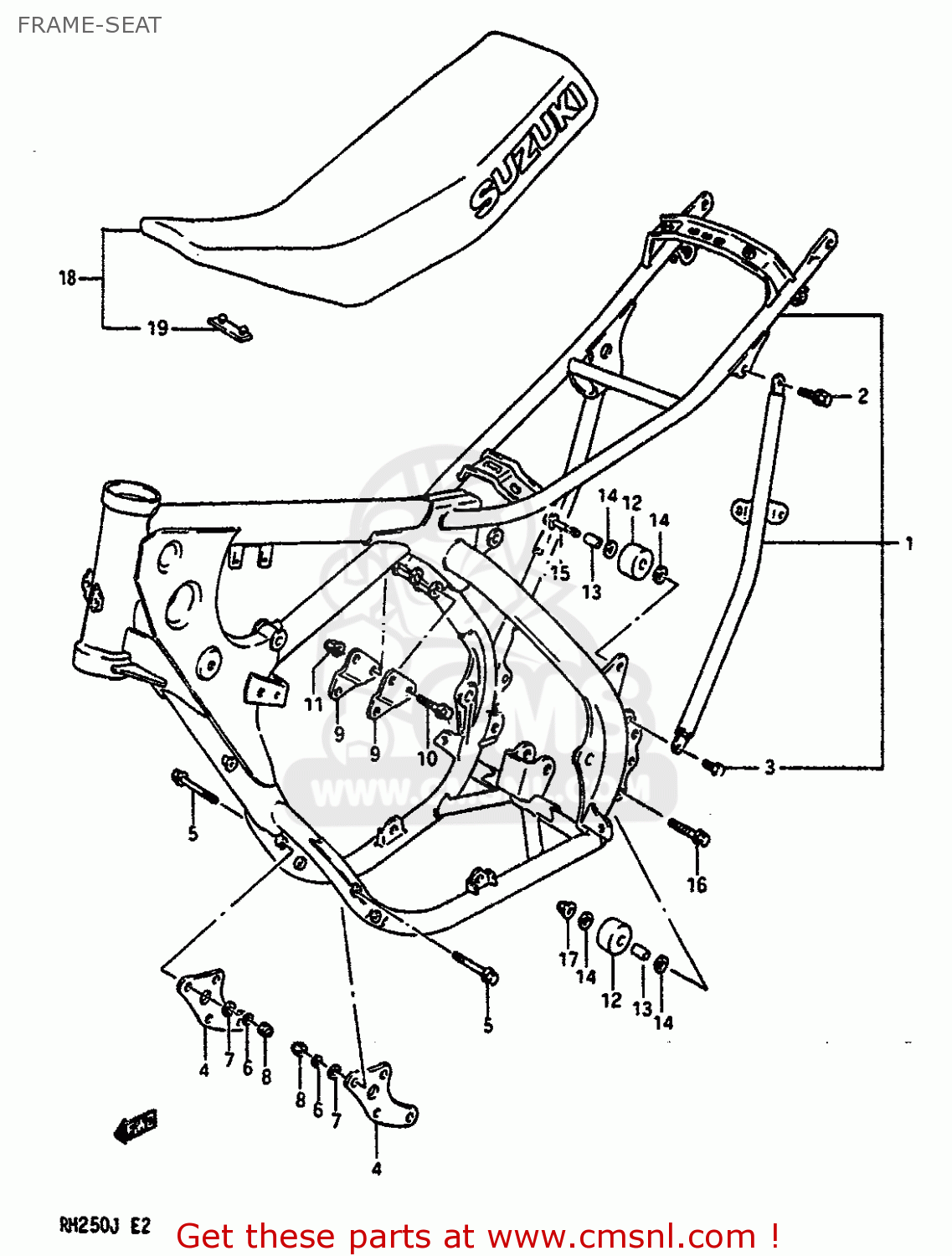

Frame-seat diagram RM250 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

411002683019F
ref: 1

FRAME

€ 768.00

0910308055
ref: 2

BOLT

€ 4.00

0910008267
ref: 3

BOLT

€ 4.00

4199126C00
ref: 4

PLATE,ENGINE MOUNTING

€ 32.50

0910308027
ref: 5

BOLT 8X55

€ 3.50

0832121088
ref: 6

LOCK WASHER

€ 2.00

0832211088
ref: 7

WASHER

€ 2.00

0831921088
ref: 8

NUT

€ 1.50

4199326C00
ref: 9

PLATE,ENGINE MOUNTING

€ 24.00

0151708457
ref: 10

BOLT 8X45

€ 4.00

0831931087
ref: 11

NUT

€ 2.50

4391101B10
ref: 12

ROLLER,CHAIN CONTROL

€ 14.50

0918008136
ref: 13

SPACER (8.6X13.8X28)

€ 9.00

0821108221
ref: 14

WASHER

€ 2.50

0910308083
ref: 15

BOLT(8X41)

€ 3.50

0910308081
ref: 16

BOLT(8X50)

€ 3.50

0831931087
ref: 17

NUT

€ 2.50

4510026C004UZ
ref: 18

SEAT SET

€ 246.00

0932108009
ref: 19

CUSHION

€ 4.00
