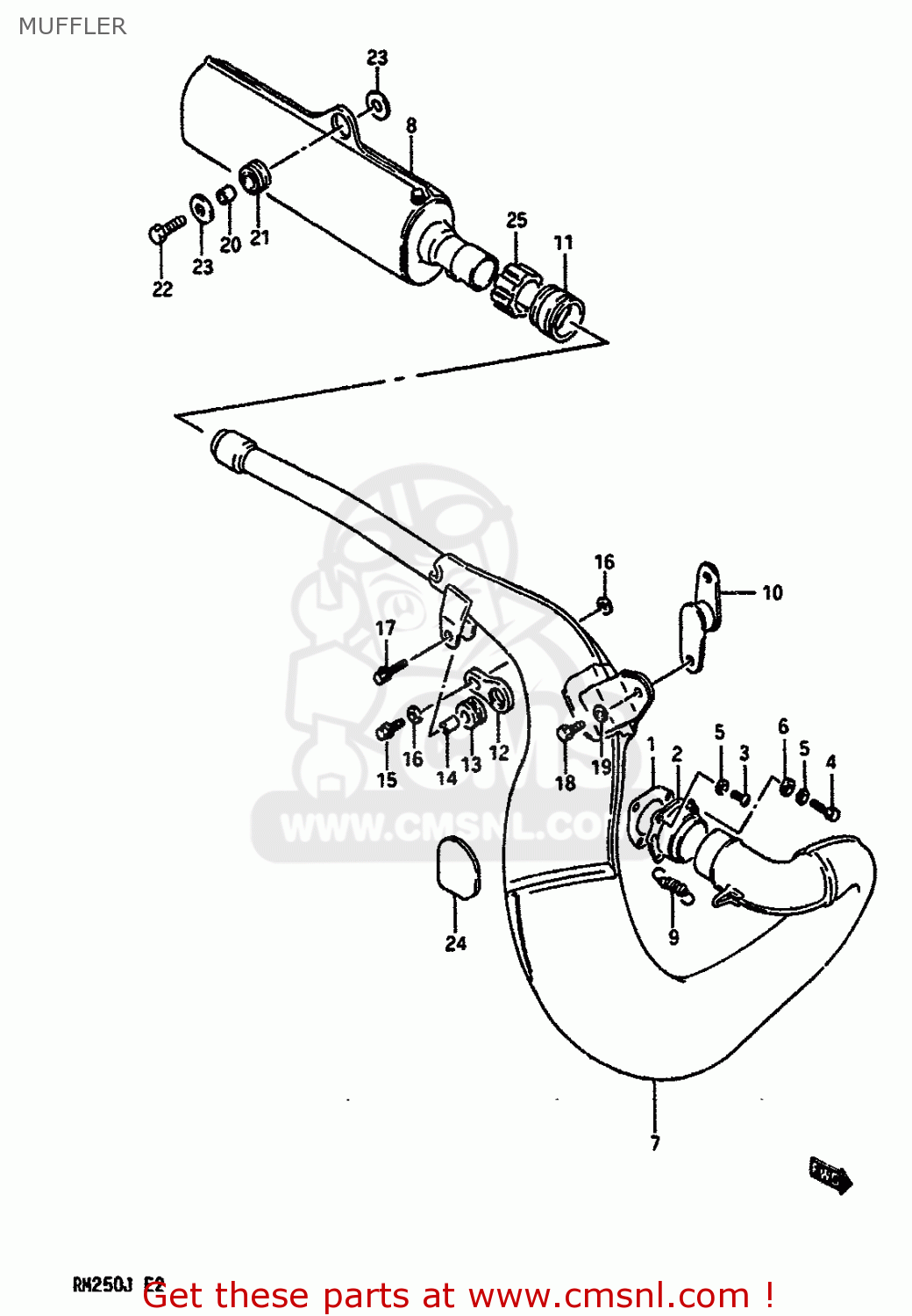

MUFFLER

ref

part #

description

quantity

1

1418116300
ref: 1

GASKET,EXHAUST PIPE (MCA)

€ 4.00

2

1417026C01
ref: 2

FLANGE,EXHAUST PIPE

€ 77.50

3

0211206167
ref: 3

SCREW

€ 2.50

4

0912806006
ref: 4

BOLT(6X20)

€ 2.00

5

0832121067
ref: 5

WASHER,LOCK

€ 2.50

6

0916006106
ref: 6

WASHER(6X10X2)

€ 1.00

7

1431026C01
ref: 7

MUFFLER,1ST

€ 329.00

8

1433026C01
ref: 8

MUFFLER,2ND

€ 281.00

9

0944311024
ref: 9

SPRING

€ 20.50

10

1477026C01
ref: 10

DAMPER,MUFFLER SUPPORT

€ 12.50

11

1477126C00
ref: 11

CONNECTOR,MUFFLER

€ 17.00

12

1476101B00
ref: 12

PLATE,MUFFLER MTG

€ 10.50

13

1476201B00
ref: 13

CUSHION,MUFFLER

€ 3.00

14

0918006062
ref: 14

SPACER (6.4X9X13.5)

€ 2.00

15

0154706167
ref: 15

BOLT

€ 2.00

16

0916006027
ref: 16

WASHER (6.5X20X1.2)

€ 2.00

17

0154706257
ref: 17

BOLT

€ 2.50

18

0110708167
ref: 18

BOLT,8X16

€ 2.00

19

0832121088
ref: 19

LOCK WASHER

€ 2.00

20

0918008001
ref: 20

SPACER (8.8X12X11)

€ 2.00

21

0932011014
ref: 21

CUSHION

€ 2.50

22

0910008129
ref: 22

BOLT

€ 2.50

23

0916008106
ref: 23

WASHER (8.1X33X1.6)

€ 3.00

24

1442400B20
ref: 24

CUSHION,SPACER

€ 5.50

25

1465200B01
ref: 25

CUSHION

€ 14.50
