REAR BRAKE

RM250 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

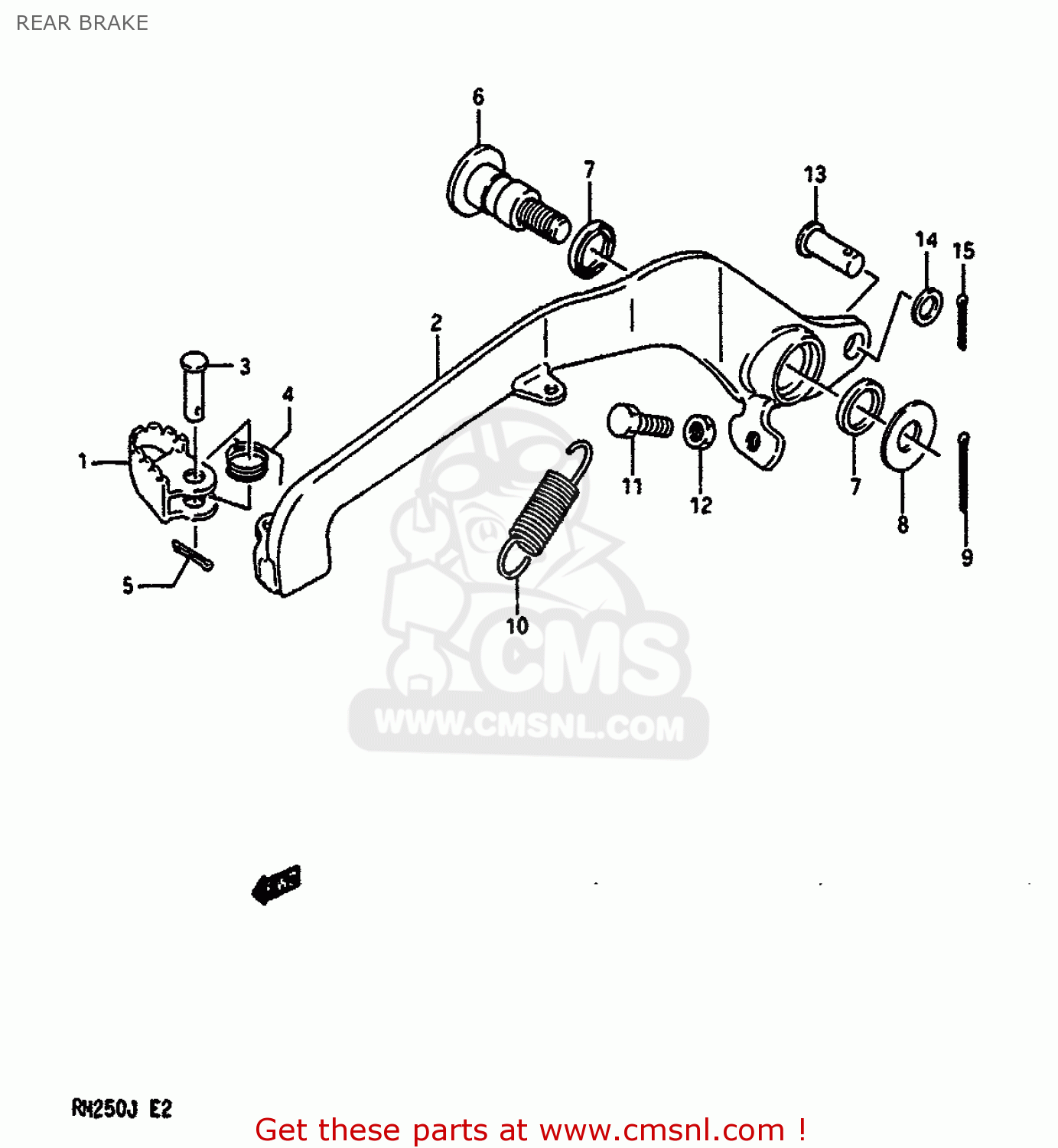

Rear brake diagram RM250 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

4311001B10
ref: 1

PEDAL,BRAKE

€ 10.00

4312026C01
ref: 2

ARM,BRAKE PEDAL

€ 43.50

0920006060
ref: 3

PIN

€ 5.50

0944411005
ref: 4

SPRING

€ 3.00

0411120158
ref: 5

PIN

€ 1.50

4314201B30
ref: 6

SHAFT,BRAKE PEDAL

€ 15.00

0928415005
ref: 7

SEAL,OIL(15X20X3)

€ 5.50

0821110261
ref: 8

WASHER

€ 2.50

0411120208
ref: 9

PIN 20X20

€ 1.50

0944311023
ref: 10

SPRING

€ 3.00

0910006009
ref: 11

BOLT(6X23)

€ 1.50

0831011067
ref: 12

NUT 6MM

€ 2.50

0920008048
ref: 13

PIN(8X20)

€ 3.00

0916008074
ref: 14

WASHER(8.5X13X1.6)

€ 2.50

0411120158
ref: 15

PIN

€ 1.50
