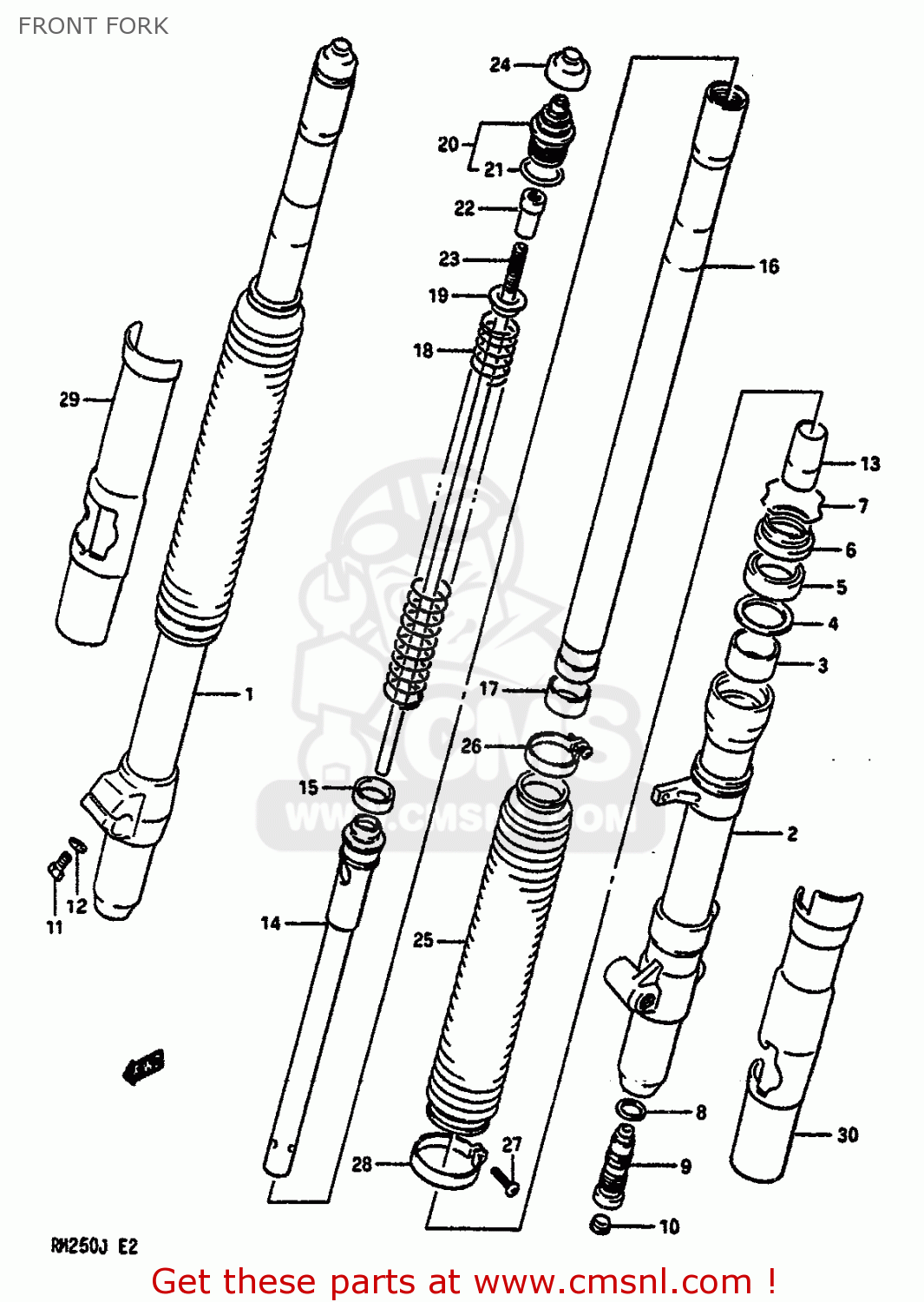

FRONT FORK

ref

part #

description

quantity

0

5110326C10
ref: 0

DAMPER ASSEMBLY,RIGHT

€ 649.50

0

5110426C10
ref: 0

DAMPER ASSEMBLY,LEFT

€ 649.50

1

5113001B40
ref: 1

TUBE,OUTER,RIGHT

€ 0.00

2

5114001B40
ref: 2

TUBE,OUTER,LEFT

€ 0.00

3

5116714200
ref: 3

METAL,SLIDE

€ 13.50

4

5115814200
ref: 4

WASHER

€ 4.00

5

5115301B40
ref: 5

OIL SEAL,FRONT FORK

€ 20.00

6

5117301B40
ref: 6

DUST SEAL,FRONT FORK

€ 7.00

7

5115614200
ref: 7

RING,STOPPER

€ 4.50

8

5114801B40
ref: 8

GASKET (NAS)

€ 4.00

9

5117026C10
ref: 9

VALVE ASSEMBLY

€ 136.00

10

5118914500
ref: 10

CAP,FRONT FORK DF

€ 5.00

11

0110708307
ref: 11

BOLT

€ 2.50

12

0832121088
ref: 12

LOCK WASHER

€ 2.00

13

5119501B40
ref: 13

PIECE,OIL LOCK

€ 0.00

14

5114601B40
ref: 14

CYLINDER,FRONT FORK

€ 0.00

15

5119600B20
ref: 15

RING,FRONT FORK PISTON

€ 5.00

16

5111001B40
ref: 16

TUBE,FORK,INNER

€ 290.00

17

5112114200
ref: 17

PISTON

€ 14.00

18

5117126C00
ref: 18

SPRING

€ 0.00

19

5117214280
ref: 19

GUIDE,FRONT FORK SPRING

€ 0.00

20

5135101840
ref: 20

CAP

€ 0.00

21

5111714200
ref: 21

O RING

€ 2.00

22

5112001840
ref: 22

NUT,PISTON ROD

€ 0.00

23

5112801840
ref: 23

ROD,PISTON

€ 0.00

24

5118801820
ref: 24

CAP

€ 0.00

25

5157100B2025Y
ref: 25

BOOT

€ 51.00

26

5157500B20
ref: 26

BAND,BOOT,UPPER

€ 9.00

27

5157701B20
ref: 27

SCREW,BAND BOOT(3.5X10)

€ 2.50

28

5157600B00
ref: 28

BAND,BOOT LWR

€ 6.50

29

5120114500163
ref: 29
OPT

PROTECTOR,RIGHT

€ 0.00

30

5120214501163
ref: 30
OPT

PROTECTOR,LEFT

€ 25.50

all assemblies
