FUEL TANK

RM250 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

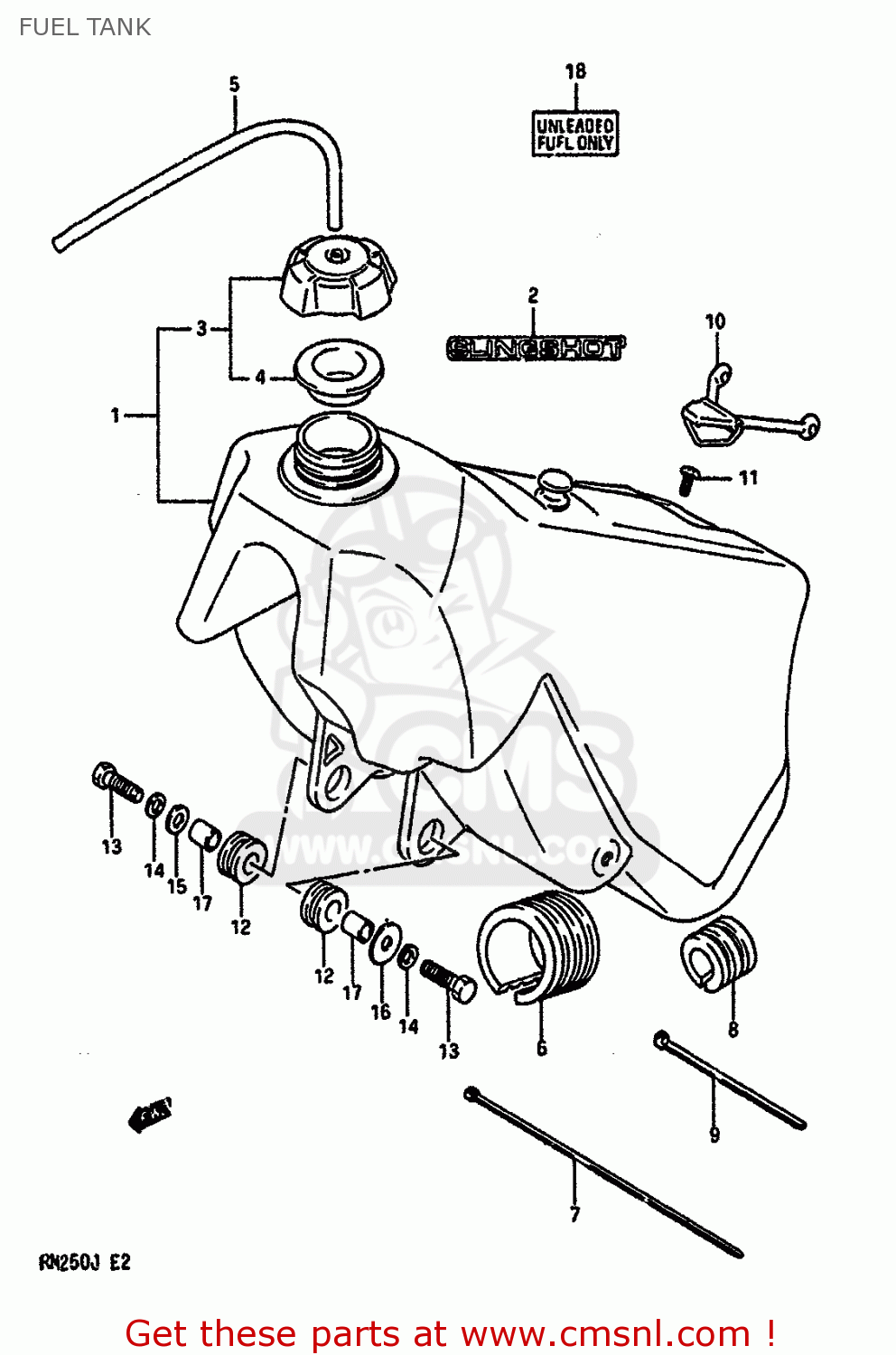

Fuel tank diagram RM250 1988 (J) UNITED KINGDOM FRANCE AUSTRALIA (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

441002687125Y
ref: 1

TANK SET,FUEL

€ 211.00

6811126C009BS
ref: 2

EMBLEM

€ 0.00

4420014820
ref: 3

CAP SET,FUEL TANK

€ 19.50

4424840400
ref: 4

GASKET,FUEL TANK CAP (NAS)

€ 4.50

0935250823280
ref: 5

HOSE

€ 13.00

4454126C00
ref: 6

CUSHION,FUEL TANK NO.1

€ 14.50

0940720402
ref: 7

CLAMP

€ 4.50

4454226C00
ref: 8

CUSHION,FUEL TANK NO.2

€ 8.00

0940714407
ref: 9

CLAMP(L:145)

€ 4.00

4456026C00
ref: 10

BAND,FUEL TANK RR

€ 9.50

0214206164
ref: 11

SCREW

€ 2.50

0932012030
ref: 12

CUSHION

€ 3.50

0110708307
ref: 13

BOLT

€ 2.50

0832121088
ref: 14

LOCK WASHER

€ 2.00

0832221088
ref: 15

WASHER

€ 2.00

0916008032
ref: 16

WASHER(8.5X26X1.2)

€ 3.50

0918008033
ref: 17

SPACER(8.4X12X12)

€ 2.50

6862301B00
ref: 18
E24

LABEL,UNLEADED FUEL

€ 3.50

FUEL TANK

all assemblies
