AIR CLEANER
RM465 1982 (Z)

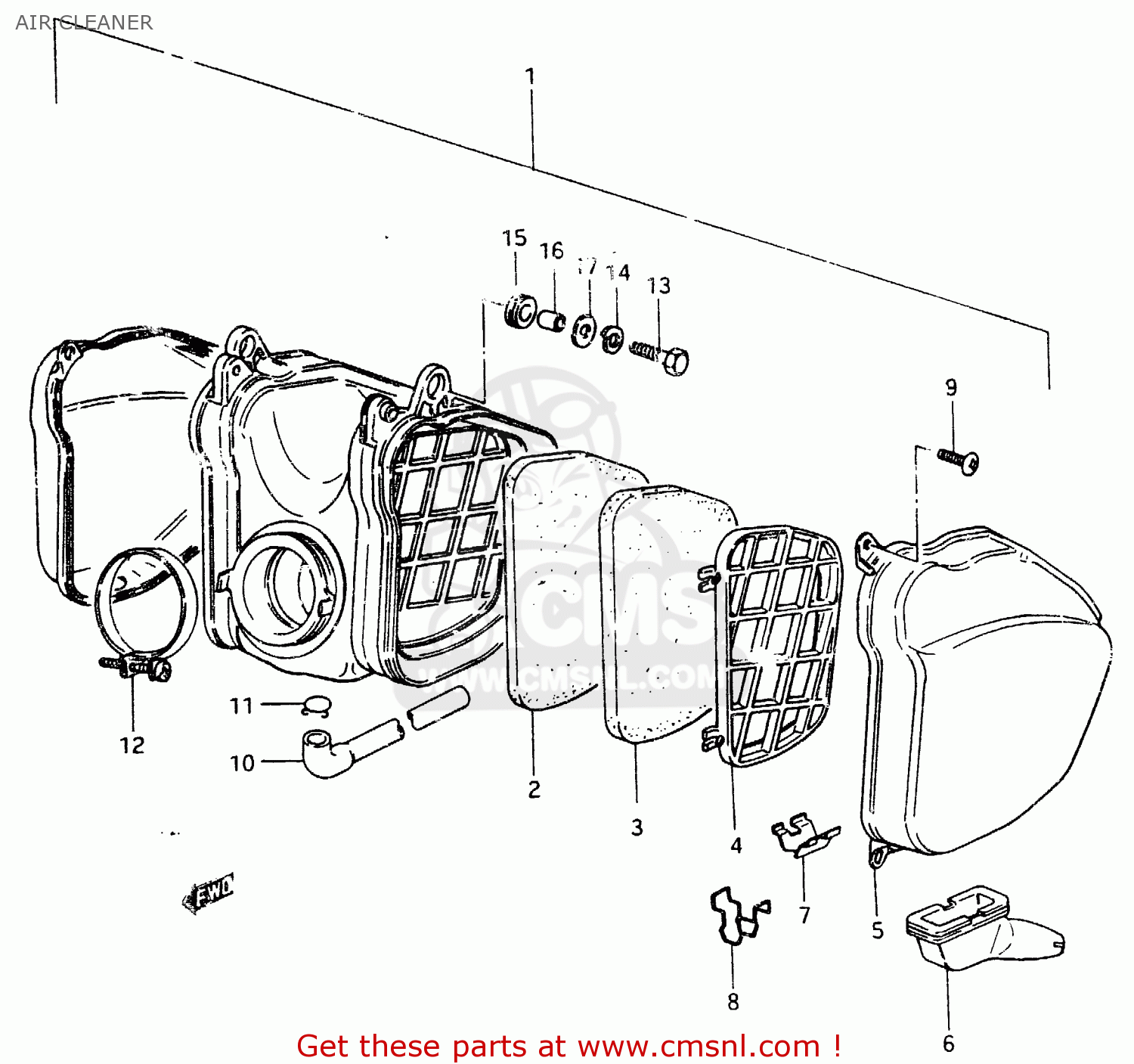

Air cleaner diagram RM465 1982 (Z)
AIR CLEANER RM465 1982 (Z)
×
prices are in EUR
ref
part #
description
quantity
1
1370014200
ref: 1
MODEL X
CLEANER ASSEMBLY,AIR
€ 0.00
1
1370014210
ref: 1
MODEL Z
CLEANER ASSEMBLY,AIR
€ 0.00
2
1378114200
ref: 2
FILTER
€ 15.00
3
1378614200
ref: 3
MODEL X
ELEMENT,AIR CLEANER
€ 11.50
3
1378614210
ref: 3
MODEL Z
FILTER,2ND
€ 11.50
4
1379114200
ref: 4
MODEL X
HOLDER,FILTER
€ 6.50
4
1379114210
ref: 4
MODEL Z
HOLDER,AIR CLEANER,RIGHT
€ 6.50
4
1379214200
ref: 4
MODEL X
HOLDER,FILTER
€ 9.00
4
1379214210
ref: 4
MODEL Z
HOLDER,AIR CLEANER,LEFT
€ 9.00
5
1374014200
ref: 5
MODEL X
CAP,AIR CLEANER
€ 0.00
5
1374014210
ref: 5
MODEL Z
CAP,AIR CLEANER,RIGHT
€ 15.00
5
1375014200
ref: 5
MODEL X
CAP,AIR CLEANER
€ 0.00
5
1375014210
ref: 5
MODEL Z
CAP,AIR CLEANER,LEFT
€ 15.00
6
1386014200
ref: 6
TUBE, DRAIN
€ 24.00
6
1387114210
ref: 6
DRAIN TUBE
€ 24.00
7
1397914100
ref: 7
MODEL X
DRAIN STOPPER
€ 4.00
8
1387714110
ref: 8
MODEL Z
DRAIN STOPPER
€ 4.00
9
0214205167
ref: 9
SCREW
€ 1.50
10
1387000150
ref: 10
MODEL X
DRAIN TUBE
€ 0.00
10
1387000170
ref: 10
MODEL Z
DRAIN TUBE
€ 13.50
11
0940114301
ref: 11
CLIP
€ 2.00
12
0940270206
ref: 12
MODEL X
CLAMP
€ 0.00
12
0940268206
ref: 12
MODEL Z
CLAMP
€ 4.00
13
0110706208
ref: 13
BOLT
€ 2.00
14
0832121068
ref: 14
LOCK WASHER
€ 2.50
15
0932008007
ref: 15
CUSHION
€ 4.00
16
0918007005
ref: 16
SPACER (7X9X7)
€ 2.50
17
0916006020
ref: 17
WASHER
€ 2.00
