FRONT FORK (MODEL Z)

RM465 1982 (Z)

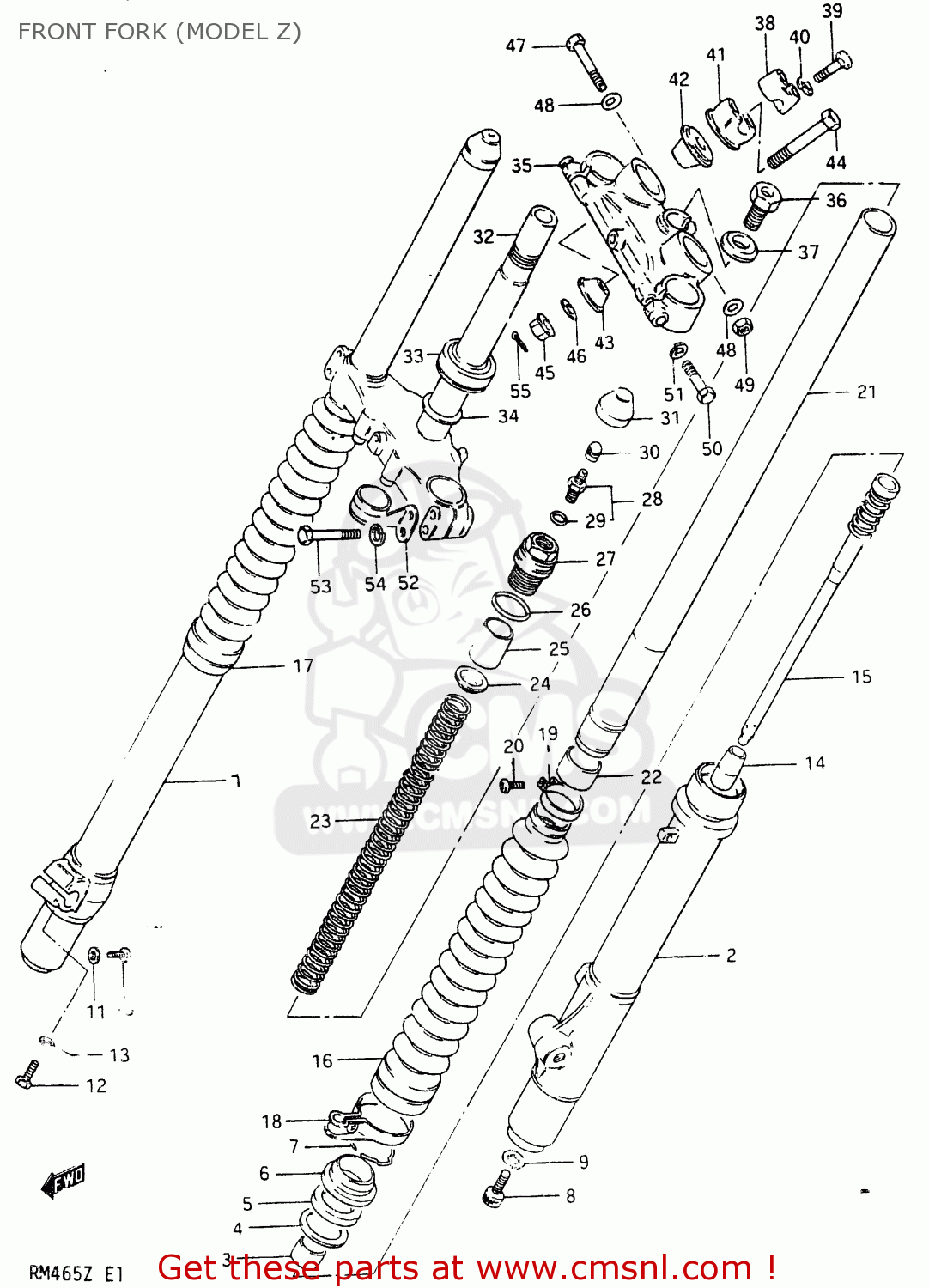

Front fork (model z) diagram RM465 1982 (Z)

FRONT FORK (MODEL Z) RM465 1982 (Z)
FRONT FORK (MODEL Z) RM465 1982 (Z)
FRONT FORK (MODEL Z) RM465 1982 (Z)
prices are in EUR
ref
part #
description
quantity
0
511001426008C
ref: 0
NIL.REF.NO.55
DAMPER SET
€ 928.00
1
5113014260
ref: 1
TUBE,OUTER,RIGHT
€ 0.00
2
5114014260
ref: 2
TUBE,OUTER,LEFT
€ 0.00
3
5116714200
ref: 3
METAL,SLIDE
5116714200
€ 13.50
4
5115814200
ref: 4
WASHER
5115814200
€ 4.00
5
5115314260
ref: 5
OIL SEAL,FRONT FORK
€ 11.00
6
5117314260
ref: 6
DUST SEAL,FRONT FORK
€ 11.50
7
5115614200
ref: 7
RING,STOPPER
5115614200
€ 4.50
8
5114714200
ref: 8
BOLT(14X25)
5114714200
€ 5.50
9
5114814200
ref: 9
GASKET (NAS)
5114814200
€ 2.00
10
0211204088
ref: 10
SCREW
€ 1.50
11
5118303010
ref: 11
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
12
0110708308
ref: 12
BOLT (8X30)
0110708308
€ 2.50
13
0832131088
ref: 13
WASHER,LOCK,8.
€ 2.00
14
5119514200
ref: 14
PIECE,OIL LOCK
€ 0.00
15
5114614200
ref: 15
CYLINDER,FRONT FORK
€ 0.00
16
5157114200
ref: 16
BOOT,FRONT FORK COVER
€ 44.00
17
5157314200
ref: 17
BAND,FRONT FORK COVER
€ 0.00
18
5157214200
ref: 18
BAND,FRONT FORK COVER
5157214200
€ 12.00
19
5157514200
ref: 19
BAND,FRONT FORK BOOT
5157514200
€ 5.50
20
0211204108
ref: 20
SCREW 4X10
€ 2.00
21
5111014200
ref: 21
TUBE,FORK,INNER
€ 196.00
22
5112114200
ref: 22
PISTON
5112114200
€ 14.00
23
5117114200
ref: 23
SPRING,FRONT FORK
€ 0.00
24
5117214200
ref: 24
GUIDE,SPRING
€ 5.00
25
5117614260
ref: 25
SPACER,FRONT FORK SPRING
5117614260
€ 4.50
26
5111714200
ref: 26
O RING
5111714200
€ 2.00
27
5135114200
ref: 27
CAP,FORK INNER TUBE
€ 29.00
28
5129314200
ref: 28
VALVE,FRONT FORK AIR
€ 15.50
29
5111714210
ref: 29
O-RING
5111714210
€ 2.50
30
5129440400
ref: 30
CAP,VALVE AIR
5129440400
€ 4.00
31
5118941220
ref: 31
CAP
5118941220
€ 6.00
32
514101426008C
ref: 32
STEM,STEERING
€ 0.00
33
0926530005
ref: 33
BEARING
0926530005
€ 49.50
34
0821130402
ref: 34
WASHER,THRUST
0821130402
€ 4.00
35
513111420008C
ref: 35
HEAD,STEERING STEM
€ 0.00
36
5135141320
ref: 36
BOLT
5135141320
€ 8.50
37
5135641310
ref: 37
WASHER
5135641310
€ 6.00
38
562114030008C
ref: 38
HOLDER,HANDLEBAR
562114030008C
€ 7.00
39
0110708358
ref: 39
BOLT
0110708358
€ 3.50
40
0832131088
ref: 40
WASHER,LOCK,8.
€ 2.00
41
562211420008C
ref: 41
HOLDER,HANDLEBAR
€ 105.50
42
5624114200
ref: 42
DAMPER,UPR
5624114200
€ 32.00
43
5624214200
ref: 43
DAMPER,LWR
5624214200
€ 21.50
44
5132114200
ref: 44
BOLT,HANDLE HOLDER
5132114200
€ 6.50
45
0831931108
ref: 45
NUT
0831931108
€ 3.00
46
5135640400
ref: 46
WASHER,HANDLEBAR HOLDER
€ 2.00
47
0110708508
ref: 47
BOLT 8X50
€ 3.00
48
0832221088
ref: 48
WASHER
0832221088
€ 2.00
49
0831012088
ref: 49
NUT
0831012088
€ 2.00
50
0110710458
ref: 50
BOLT
€ 2.00
51
0832131088
ref: 51
WASHER,LOCK,8.
€ 2.00
52
5862114200
ref: 52
GUIDE,CABLE
€ 4.00
53
0110708408
ref: 53
BOLT 8X40
0110708408
€ 3.00
54
0832131088
ref: 54
WASHER,LOCK,8.
€ 2.00
55
0411120208
ref: 55
PIN 20X20
0411120208
€ 1.50
