Buy Suzuki RM Parts Online
home
HANDLEBAR
RM465 1982 (Z)

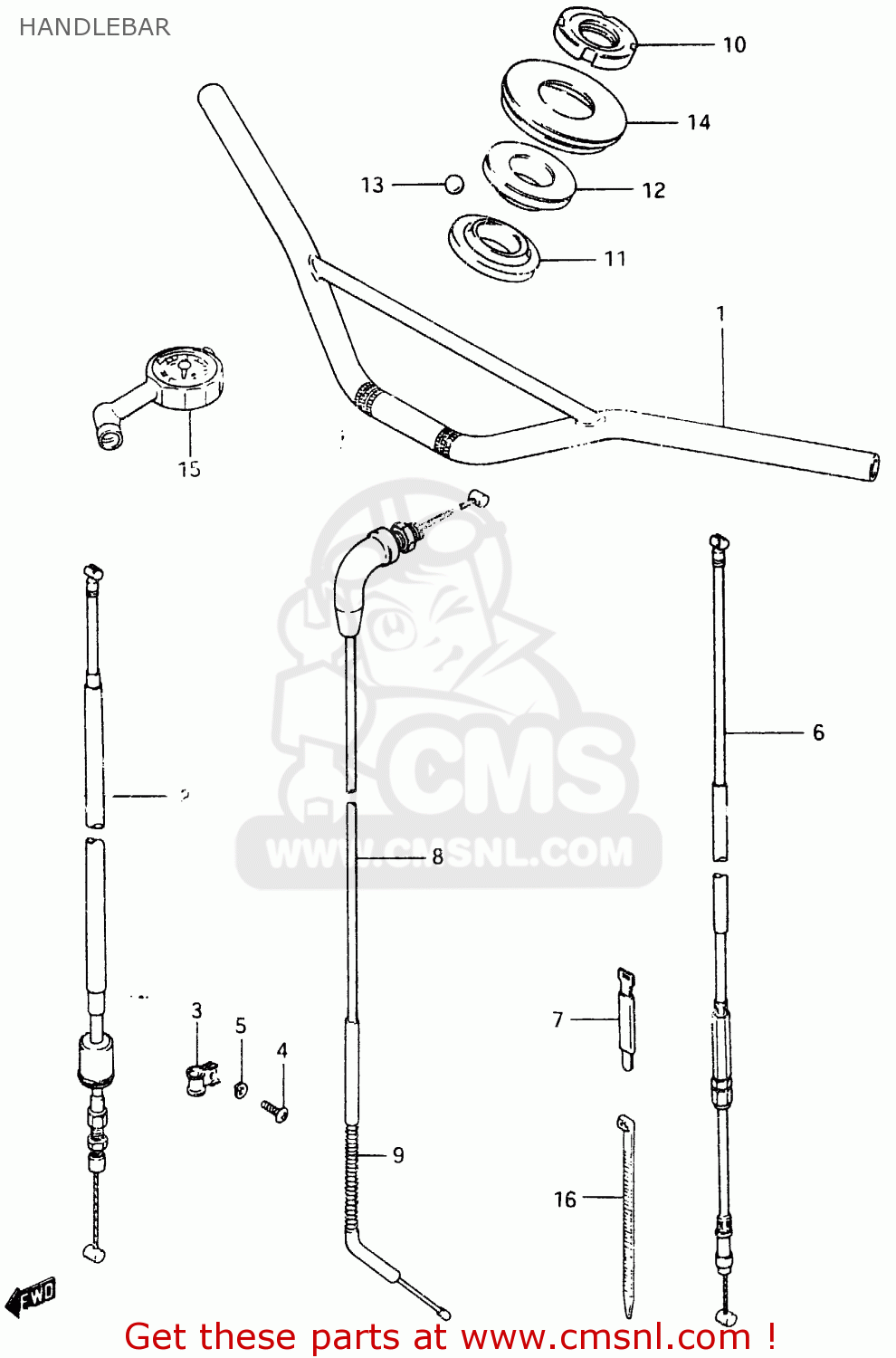

Handlebar diagram RM465 1982 (Z)
HANDLEBAR RM465 1982 (Z)
×
prices are in EUR
ref
part #
description
quantity
1
561101421108C
ref: 1
HANDLEBAR
€ 76.50
2
5810014201
ref: 2
CABLE ASSEMBLY,FRONT BRAKE
€ 34.00
3
5862114200
ref: 3
MODEL X
GUIDE,CABLE
€ 4.00
3
5862014200
ref: 3
MODEL Z
GUIDE,CABLE
€ 6.50
4
0211206208
ref: 4
SCREW
€ 2.00
5
0832121068
ref: 5
LOCK WASHER
€ 2.50
6
5820014211
ref: 6
CABLE ASSEMBLY,CLUTCH
€ 29.00
7
0940718301
ref: 7
CLAMP
€ 6.00
8
5830014201
ref: 8
MODEL X
CABLE ASSEMBLY,THROTTLE
€ 30.50
8
5830014300
ref: 8
MODEL Z
CABLE ASSEMBLY,THROTTLE
€ 30.50
9
5839927100
ref: 9
MODEL X
PROTECTOR,CABLE
€ 10.50
10
5163140200
ref: 10
NUT,STEERING STEM
€ 12.00
11
5161140200
ref: 11
RACE,STEERING,INNER,UPPER
€ 8.50
12
5162140200
ref: 12
RACE,STEERING,OUTER,UPPER
€ 17.00
13
0611108003
ref: 13
BALL
€ 1.50
14
5164340200
ref: 14
SEAL,STEERING UPR DUST
€ 7.50
15
9620041330
ref: 15
GAUGE ASSY,AIR PRESSURE
€ 77.50
16
0940720401
ref: 16
CLAMP
€ 4.50
up
