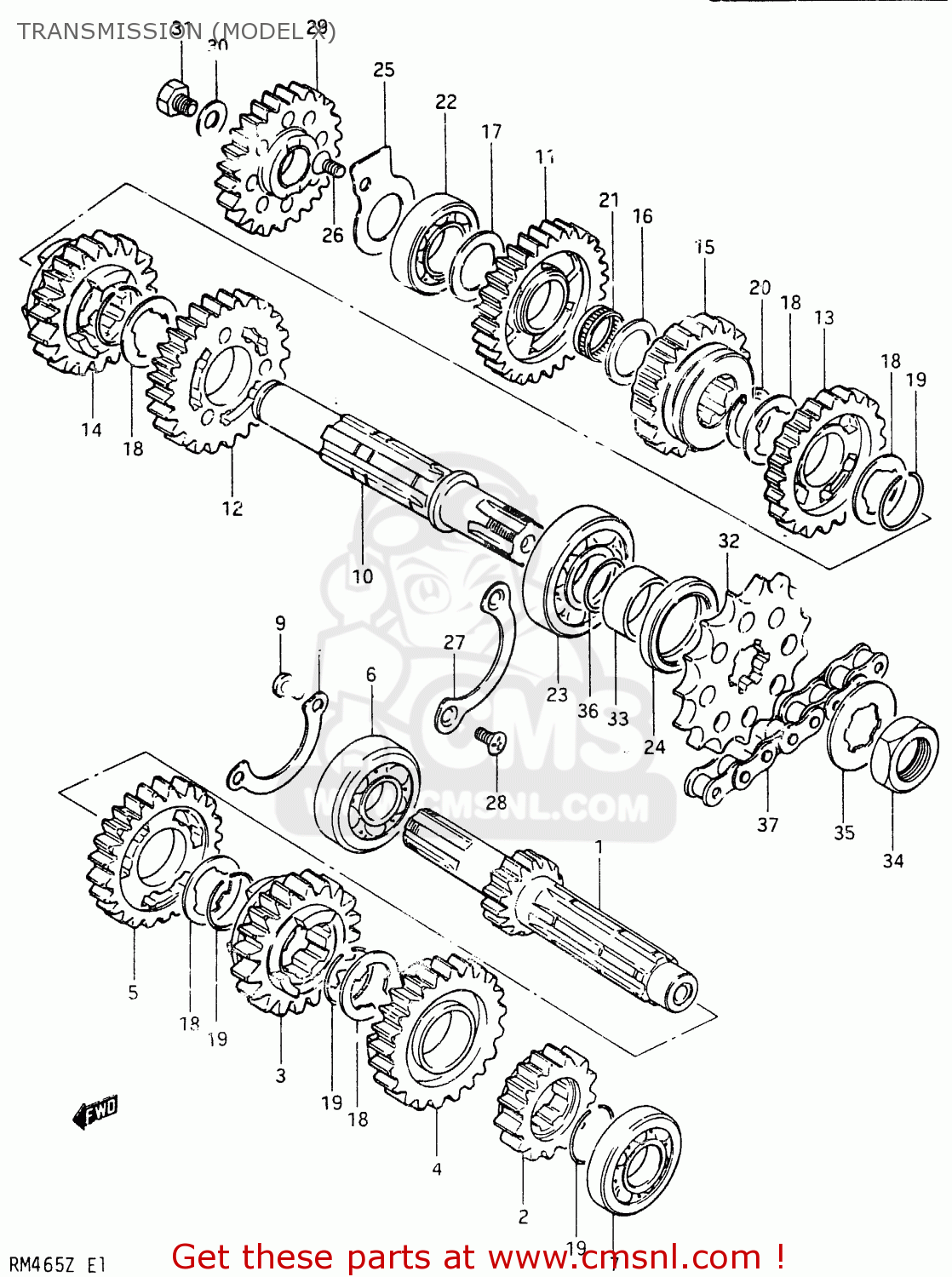

TRANSMISSION (MODEL X)

ref

part #

description

quantity

1

2412014211
ref: 1

SHAFT,COUNTER

€ 95.00

2

2422114211
ref: 2

GEAR,SECOND DRIVE

€ 68.00

3

2423114990
ref: 3

GEAR,THIRD DRIVE

€ 65.00

4

2424014211
ref: 4

GEAR,FOURTH DRIVE

€ 76.00

5

2425114211
ref: 5

GEAR,FIFTH DRIVE

€ 76.00

6

0926222006
ref: 6

BEARING

€ 63.50

7

0811360040
ref: 7

BEARING, LH

€ 20.50

8

2474114210
ref: 8

RETAINER,BEARING

€ 0.00

9

0211206128
ref: 9

SCREW 6X12

€ 2.00

10

2413114990
ref: 10

SHAFT,DRIVE

€ 156.50

11

2431114210
ref: 11

GEAR,FIRST DRIVEN

€ 76.00

12

2432014211
ref: 12

GEAR,SECOND DRIVEN

€ 76.00

13

2433114211
ref: 13

GEAR,THIRD DRIVEN

€ 61.50

14

2434114212
ref: 14

GEAR,FOURTH DRIVEN

€ 59.00

15

2435114211
ref: 15

GEAR,FIFTH DRIVEN

€ 76.00

16

0821120301
ref: 16

WASHER

€ 3.00

17

0821120363
ref: 17

WASHER

€ 3.50

18

0916725012
ref: 18

WASHER,LOCK

€ 3.50

19

0938025006
ref: 19

RING,SNAP

€ 2.00

20

0938025010
ref: 20

CIRCLIP

€ 3.00

21

0926320018
ref: 21

BEARING(20X24X10).8

€ 14.00

22

0926420002
ref: 22

BEARING

€ 25.50

23

0926222013
ref: 23

BEARING(22X56X16)

€ 58.00

24

0928332003
ref: 24

SEAL,OIL(32X42X6)

€ 3.50

25

2475114211
ref: 25

RETAINER,DRIVESHAFT

€ 0.00

26

0212206128
ref: 26

SCREW

€ 3.00

27

2475214210
ref: 27

PLATE,DRIVESHAFT BEARING

€ 3.50

28

0212206128
ref: 28

SCREW

€ 3.00

29

2626014200
ref: 29

GEAR,KICK STARTER IDLE

€ 41.00

30

0821120281
ref: 30

WASHER,THRUST

€ 2.50

31

0110708168
ref: 31

BOLT

€ 2.00

32

2751114210
ref: 32

SPROCKET,ENGINE (NT:14)

€ 24.50

32

2751141110
ref: 32
OPT

SPROCKET,ENGINE

€ 25.00

32

2751141130
ref: 32
OPT

SPROCKET,ENGINE

€ 17.50

33

0918022007
ref: 33

SPACER(22X32X11.5)

€ 10.00

34

0914022006
ref: 34

NUT

€ 6.00

35

0916722005
ref: 35

WASHER,LOCK

€ 2.50

36

0928022003
ref: 36

O RING(D:1.7,ID:22)

€ 2.50

37

2760014250
ref: 37

CHAIN ASSEMBLY,DRIVE

€ 80.00

all assemblies
