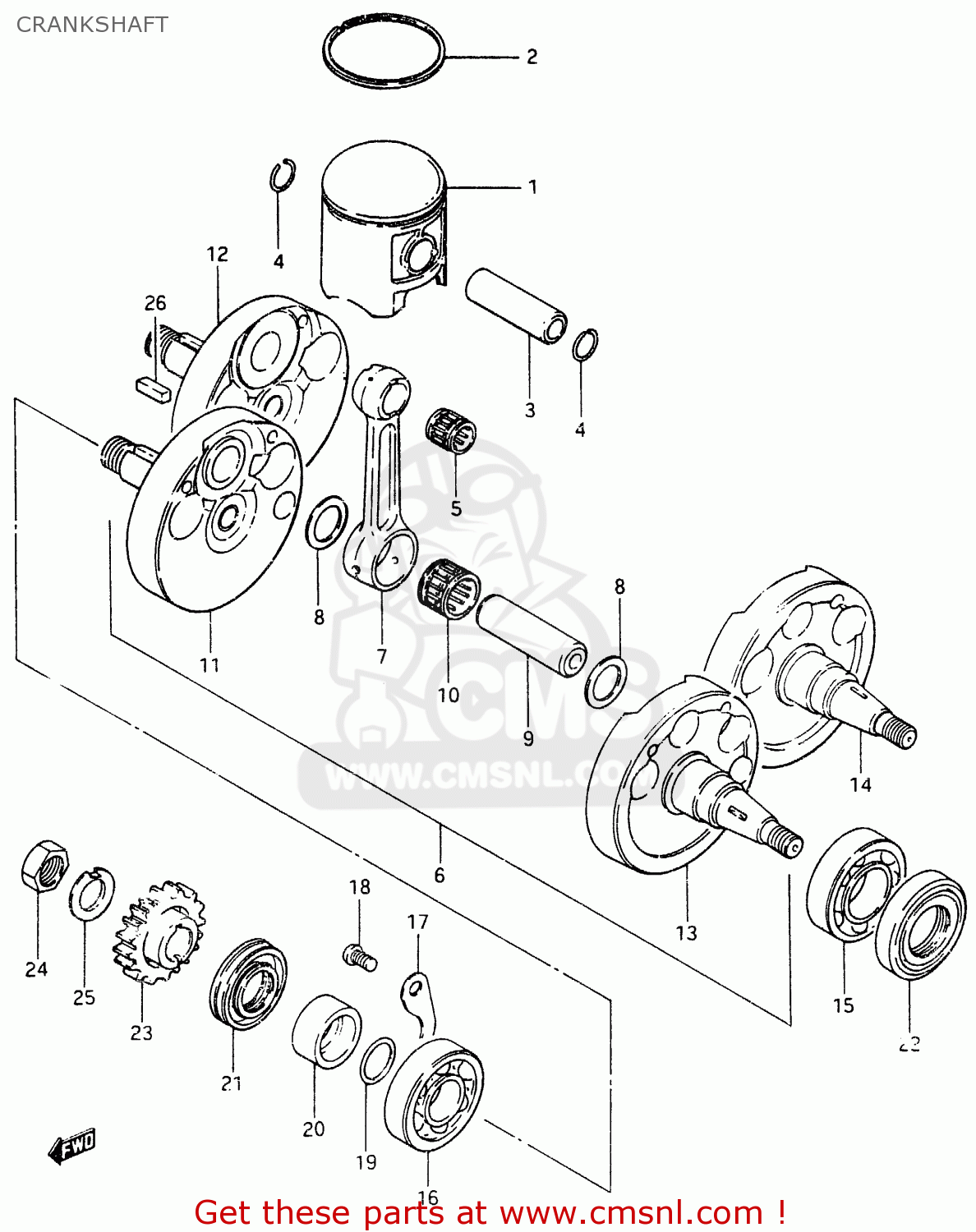

CRANKSHAFT

ref

part #

description

quantity

1

1211014210
ref: 1

PISTON (86.00MM)

€ 64.00

1

1211014210025
ref: 1

PISTON (86.25MM)

€ 82.00

1

1211014210050
ref: 1

PISTON (86.50MM)

€ 73.00

2

1214114210
ref: 2

RING,PISTON

€ 22.50

2

1214114210025
ref: 2

RING,PISTON

€ 40.00

2

1214114210050
ref: 2

RING,PISTON

€ 22.00

3

1215115002
ref: 3

PIN,PISTON (18MM)

€ 14.50

4

0938118002A
ref: 4

CIRCLIP,PISTON PIN

€ 1.50

5

0926318016
ref: 5

BEARING(18X23X22)

€ 14.00

6

1220014212
ref: 6
MODEL X

CRANKSHAFT ASSEMBLY

€ 0.00

6

1220014220
ref: 6
MODEL Z

CRANKSHAFT ASSEMBLY

€ 0.00

7

1216114211
ref: 7

ROD,CONNECTING

€ 107.50

8

0916025031
ref: 8

WASHER (25X30X1.5)

€ 3.00

9

1221114210
ref: 9

PIN,CRANK

€ 30.50

10

0926325032
ref: 10

ROLLER BEARING (25X31X2

€ 39.00

11

1222114212
ref: 11
MODEL X

CRANKSHAFT,RIGHT

€ 218.50

12

1222114220
ref: 12
MODEL Z

CRANKSHAFT,RIGHT

€ 203.00

13

1226114212
ref: 13
MODEL X

CRANKSHAFT,LEFT

€ 202.50

14

1226114220
ref: 14
MODEL Z

CRANKSHAFT,LEFT

€ 193.00

15

0926235010
ref: 15

BEARING,LEFT

€ 38.00

16

0811363060
ref: 16

BEARING

€ 47.50

17

1254114210
ref: 17

PLATE,CRANKSHAFT OIL S

€ 0.00

18

0211206108
ref: 18

SCREW

€ 1.50

19

0928024002
ref: 19

O-RING (D:3 ID:23.5)

€ 2.00

20

1235914212
ref: 20

SPACER,PRIMARY DRIVE GEAR

€ 14.00

21

0928937001
ref: 21

SEAL,OIL(37X62X9)

€ 26.50

22

0928320034
ref: 22

SEAL,OIL(19.6X37X8)

€ 6.00

23

2111140401
ref: 23
MODEL X

GEAR,PRIMARY DRIVE

€ 33.50

23

2111140402
ref: 23
MODEL Z

GEAR,PRIMARY DRIVE

€ 33.50

24

0914014017
ref: 24

NUT

€ 4.00

25

0916614010
ref: 25

WASHER

€ 2.00

26

0942107001
ref: 26

KEY

€ 2.50

all assemblies
