CRANKCASE
RM465 1982 (Z)

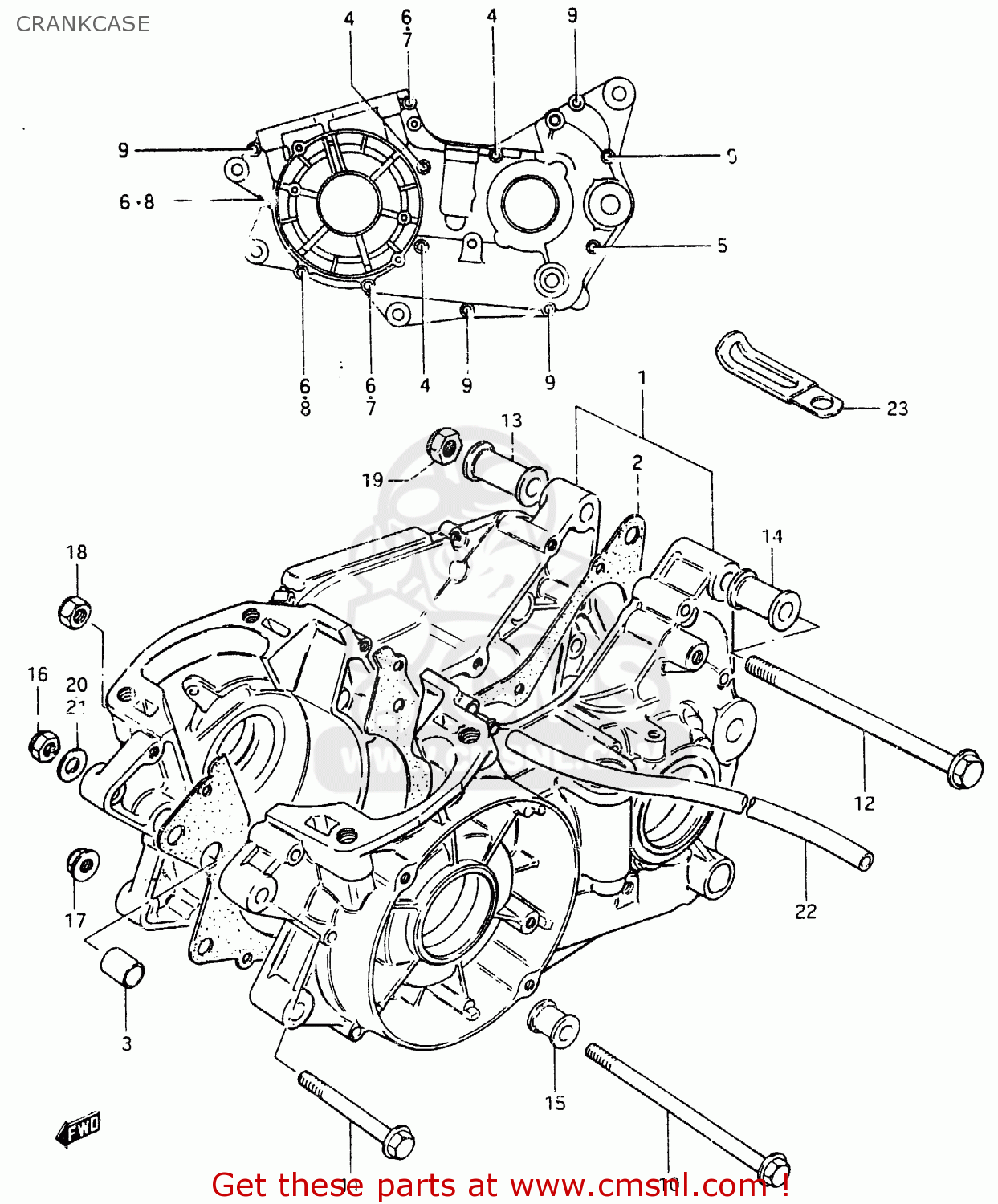

Crankcase diagram RM465 1982 (Z)
CRANKCASE RM465 1982 (Z)
×
prices are in EUR
ref
part #
description
quantity
1
1130014840
ref: 1
MODEL X
CRANKCASE SET
€ 0.00
1
1130014861
ref: 1
MODEL Z
CRANKCASE ASSEMBLY (ASB)
€ 925.50
2
1148114210
ref: 2
GASKET,CRANKCASE (MCA)
€ 26.50
3
0920613001
ref: 3
PIN
€ 2.50
4
0211206658
ref: 4
SCREW 6X65
€ 2.00
5
0211206557
ref: 5
SCREW
€ 2.50
6
0211206458
ref: 6
MODEL X
SCREW (6X45)
€ 2.00
7
0211206458
ref: 7
MODEL Z
SCREW (6X45)
€ 2.00
8
0211206408
ref: 8
MODEL Z
SCREW
€ 2.00
9
0211206358
ref: 9
SCREW (6X35)
€ 2.50
10
0910308064
ref: 10
MODEL X
BOLT
€ 12.50
10
0910008191
ref: 10
MODEL Z
BOLT 8X200
€ 9.00
11
0910308063
ref: 11
BOLT(8X75)
€ 79.50
12
0910310041
ref: 12
BOLT 10X215
€ 9.00
13
1161114210
ref: 13
SPACER,ENGINE MOUNT
€ 33.50
14
1161114220
ref: 14
SPACER,ENGINE MOUNT
€ 9.00
15
1161114230
ref: 15
SPACER,ENGINE MOUNT
€ 7.50
16
0831931088
ref: 16
MODEL X
NUT
€ 2.50
17
0831931088
ref: 17
MODEL Z
NUT
€ 2.50
18
0831921088
ref: 18
MODEL Z
NUT
€ 1.50
19
0831931108
ref: 19
NUT
€ 3.00
20
0916910011
ref: 20
WASHER
€ 1.00
21
0916910012
ref: 21
WASHER
€ 1.00
22
0934305021
ref: 22
MODEL X
HOSE
€ 13.00
22
0934304046
ref: 22
MODEL Z
HOSE
€ 3.00
23
0940408402
ref: 23
CLAMP
€ 3.50
