CLUTCH
RM465 1982 (Z)

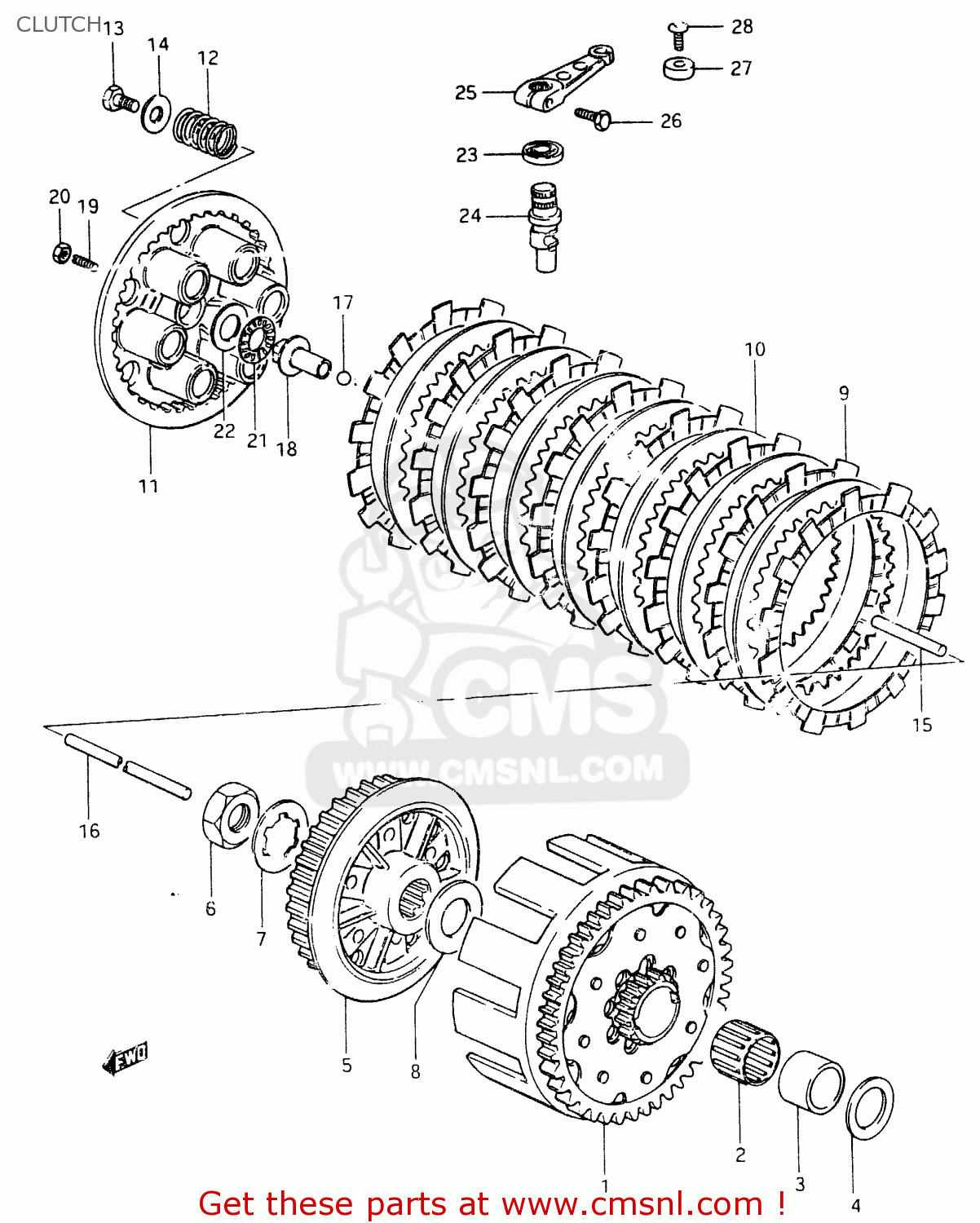

Clutch diagram RM465 1982 (Z)
CLUTCH RM465 1982 (Z)
×
prices are in EUR
ref
part #
description
quantity
1
2120014211
ref: 1
NT:18/62
GEAR ASSEMBLY,PRIMARY DRIVE
€ 190.00
2
0926328002
ref: 2
BEARING(28X33X27)
€ 21.00
3
0918022021
ref: 3
SPACER(22X28X27)
€ 16.00
4
0821122403
ref: 4
WASHER
€ 4.00
5
2141114211
ref: 5
HUB,CLUTCH SLEEVE
€ 69.00
6
0914022005
ref: 6
NUT
€ 4.00
7
0916722005
ref: 7
WASHER,LOCK
€ 2.50
8
0821122403
ref: 8
WASHER
€ 4.00
9
2144140402
ref: 9
PLATE,CLUTCH DRIVE (MCA)
€ 20.50
10
2145145000
ref: 10
PLATE,CLUTCH DRIVEN (NAS)
€ 10.50
11
2146245102
ref: 11
DISC,CLUTCH PRESSURE
€ 146.50
12
0944019007
ref: 12
SPRING
€ 3.00
13
0110706168
ref: 13
BOLT, UPPER
€ 3.00
14
0916006020
ref: 14
WASHER
€ 2.00
15
2311110200
ref: 15
MODEL X
ROD,CLUTCH PUSH NO.2
€ 9.00
16
2311139101
ref: 16
MODEL X
ROD,CLUTCH PUSH
€ 11.50
16
2311114220
ref: 16
MODEL Z
ROD,CLUTCH PUSH
€ 13.50
17
0611108003
ref: 17
MODEL Z
BALL
€ 1.50
18
2312140301
ref: 18
MODEL X
PIECE,CLUTCH PUSH
€ 17.00
18
2312114300
ref: 18
MODEL Z
PIECE,CLUTCH PUSH
€ 17.50
19
0913406001
ref: 19
MODEL X
SCREW
€ 3.00
20
0831022068
ref: 20
MODEL X
NUT 6MM
€ 2.50
21
0926315003
ref: 21
BEARING(15X28X2)
€ 7.00
22
0916015015
ref: 22
WASHER
€ 4.00
23
0928512004
ref: 23
SEAL,OIL(12X19X5)
€ 9.00
24
2312240901
ref: 24
MODEL X
SHAFT,CLUTCH RELEASE C
€ 39.00
24
2312240902
ref: 24
MODEL Z
SHAFT,CLUTCH RELEASE C
€ 39.00
25
2327114200
ref: 25
ARM,CLUTCH RELEASE
€ 39.50
26
0110706208
ref: 26
BOLT
€ 2.00
27
2328140300
ref: 27
MODEL X
GUIDE,CLUTCH CABLE
€ 4.50
28
0215206168
ref: 28
MODEL X
SCREW
€ 2.00
