CRANKSHAFT
RM500 1983 (D)

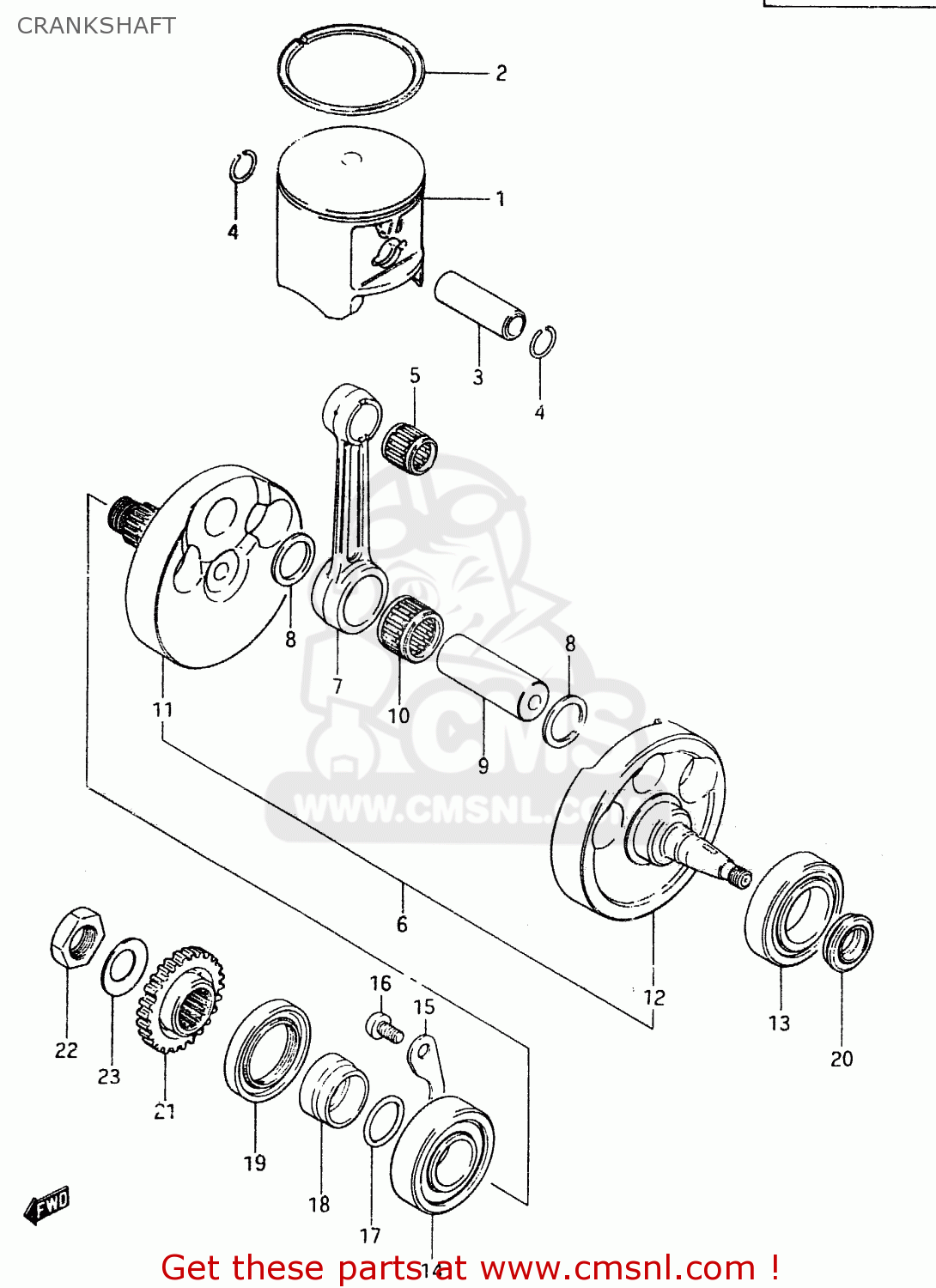

Crankshaft diagram RM500 1983 (D)
CRANKSHAFT RM500 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
1211014221
ref: 1
PISTON (88.5MM)
€ 528.50
1
1211014221025
ref: 1
OPT
PISTON
€ 71.00
1
1211014221050
ref: 1
OPT
PISTON
€ 529.50
2
1214114240
ref: 2
RING,PISTON
€ 34.50
2
1214114240025
ref: 2
OPT
RING,PISTON (OS:0.25)
€ 16.50
2
1214114240050
ref: 2
OPT
RING,PISTON (OS:0.5)
€ 18.50
3
1215115002
ref: 3
PIN,PISTON (18MM)
€ 14.50
4
0938118002A
ref: 4
CIRCLIP,PISTON PIN
€ 1.50
5
0926318016
ref: 5
BEARING(18X23X22)
€ 14.00
6
1220014230
ref: 6
CRANKSHAFT ASSEMBLY
€ 713.00
7
1216114220
ref: 7
ROD,CONNECTING
€ 74.50
8
0916026004
ref: 8
WASHER(26X32X1.5)
€ 4.50
9
1221114220
ref: 9
PIN,CRANK
€ 23.50
10
0926326014
ref: 10
ROLLER BEARING (26X33X2
€ 26.00
11
1222114230
ref: 11
CRANKSHAFT,RIGHT
€ 195.50
12
1226114230
ref: 12
CRANKSHAFT,LEFT
€ 138.50
13
0926235010
ref: 13
MODEL D
BEARING,LEFT
€ 38.00
13
0926235026
ref: 13
MODEL E
BEARING
€ 38.00
14
0811363060
ref: 14
BEARING
€ 47.50
15
1254114210
ref: 15
PLATE,CRANKSHAFT OIL S
€ 0.00
16
0211206108
ref: 16
SCREW
€ 1.50
17
0928028005
ref: 17
O RING(D:2.4,ID:27.7)
€ 2.00
18
1235914220
ref: 18
SPACER,PRIMARY DRIVE GEAR
€ 20.00
19
0928937001
ref: 19
SEAL,OIL(37X62X9)
€ 26.50
20
0928320034
ref: 20
SEAL,OIL(19.6X37X8)
€ 6.00
21
2111114210
ref: 21
GEAR,PRIMARY DRIVE
€ 35.00
22
0914020008
ref: 22
NUT (20MM)
€ 4.00
23
0916420003
ref: 23
WASHER
€ 2.50
