CUSHION LEVER (MODEL D)
RM500 1983 (D)

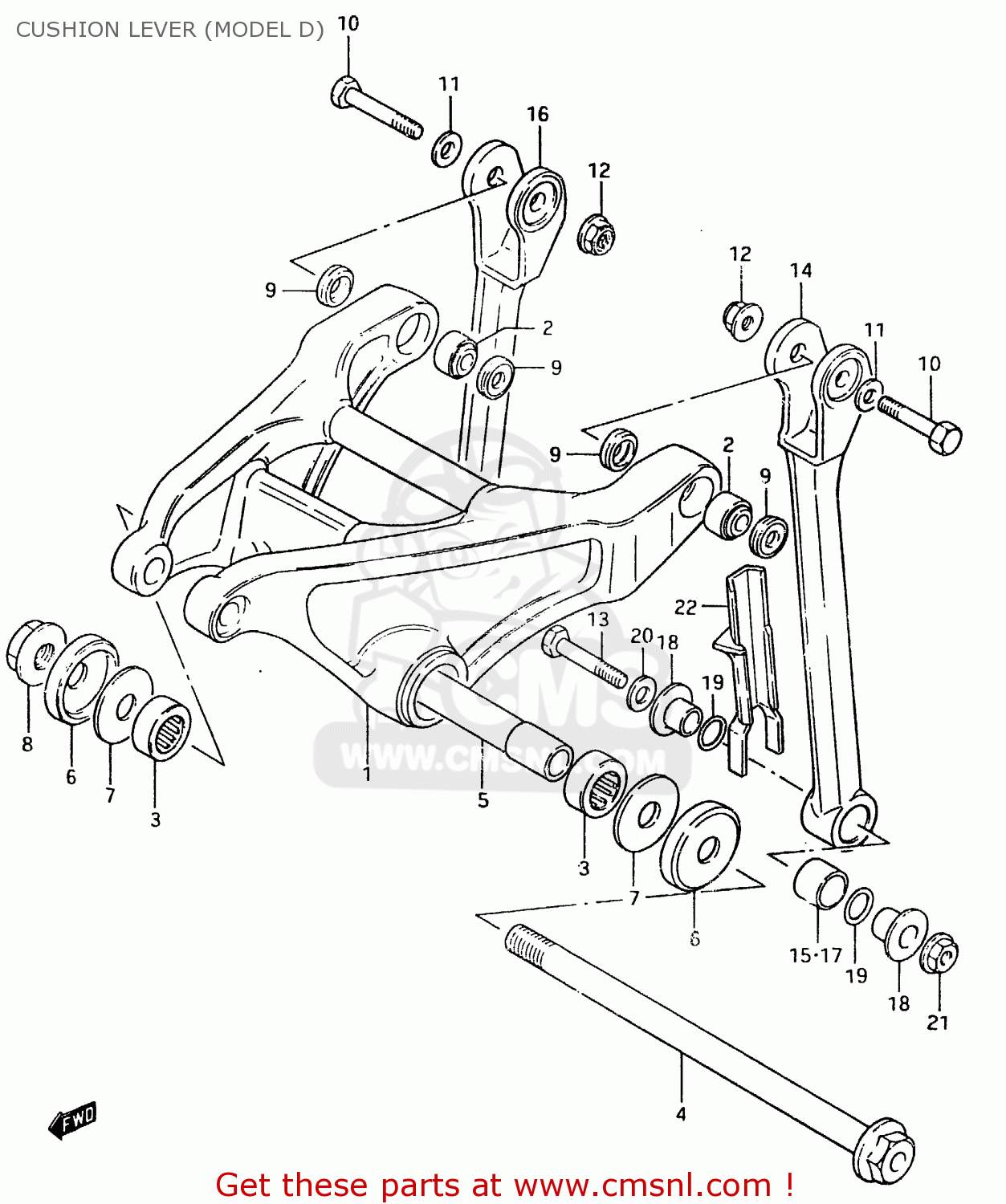

Cushion lever (model d) diagram RM500 1983 (D)
CUSHION LEVER (MODEL D) RM500 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
6260014830
ref: 1
LEVER SET,REAR CUSHION
€ 0.00
2
0926908001
ref: 2
BEARING(8X18X11)
€ 155.50
3
0926317019
ref: 3
BEARING(17X26X20)
€ 33.00
4
6262114104
ref: 4
SHAFT,REAR CUSHION LEVER
€ 16.50
5
6262314204
ref: 5
SPACER,REAR CUSHION LEVER
€ 53.00
6
6262414202
ref: 6
DUST SEAL
€ 5.00
7
0916012045
ref: 7
WASHER(12X35X2)
€ 3.50
8
0831931128
ref: 8
NUT 12MM
€ 4.00
9
6433914300
ref: 9
DUST SEAL,RR CUSHION LOD UPR
€ 7.00
10
6231314100
ref: 10
BOLT,REAR CUSHION LEVER
€ 2.00
11
0832211088
ref: 11
WASHER
€ 2.00
12
0831931088
ref: 12
NUT
€ 2.50
13
6231314110
ref: 13
BOLT,REAR CUSHION LEVER
€ 3.50
14
6260014880
ref: 14
LEVER SET,REAR CUSHION
€ 126.00
15
6264214110
ref: 15
BUSHING
€ 9.50
16
6260014890
ref: 16
LEVER SET,REAR CUSHION
€ 104.00
17
6264214110
ref: 17
BUSHING
€ 9.50
18
6231614110
ref: 18
SPACER,RR CUSHION ROD LWR
€ 8.50
19
6264714300
ref: 19
DUST SEAL,REAR CUSHION
€ 1.50
20
0832211088
ref: 20
WASHER
€ 2.00
21
0831931088
ref: 21
NUT
€ 2.50
22
6268114110
ref: 22
PROTECTOR,REAR CUSHION R
€ 10.00
