ELECTRICAL

RM500 1983 (D)

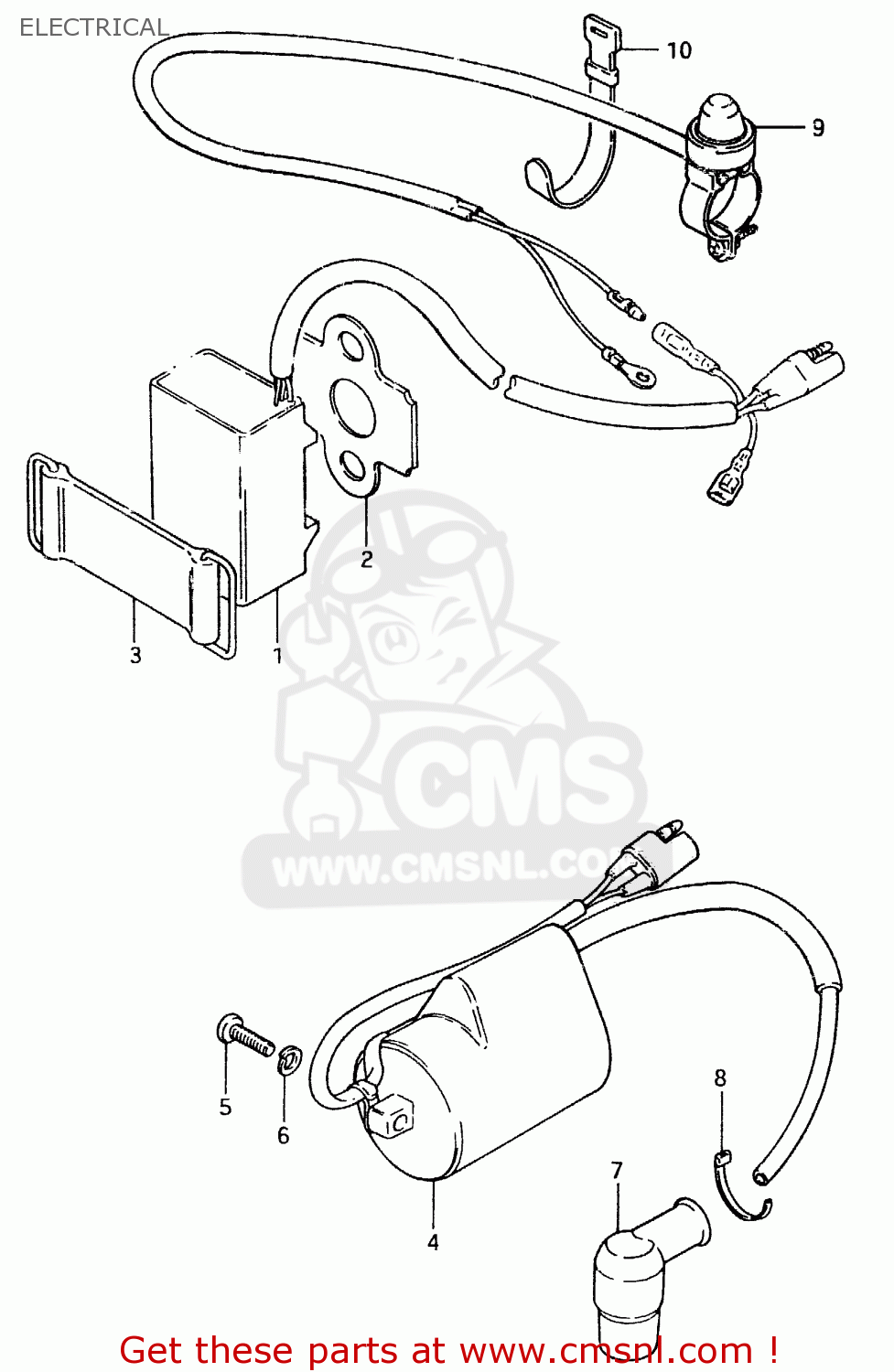

Electrical diagram RM500 1983 (D)

ELECTRICAL RM500 1983 (D)
ELECTRICAL RM500 1983 (D)
ELECTRICAL RM500 1983 (D)
prices are in EUR
ref
part #
description
quantity
1
3290014220
ref: 1
CDI UNIT
€ 351.50
2
3294114300
ref: 2
PROTECTOR,CDI UNIT
3294114300
€ 4.00
3
3294214110
ref: 3
BAND
3294214110
€ 8.00
4
3341014120
ref: 4
COIL ASSY,IGNITION
3341014120
€ 100.00
5
0211205208
ref: 5
SCREW 5X20
0211205208
€ 3.00
6
0832121058
ref: 6
LOCK WASHER
0832121058
€ 2.00
7
3351004410
ref: 7
CAP, SPARK PLUG
€ 40.00
8
0940709402
ref: 8
CLAMP
0940709402
€ 3.00
9
3782040400
ref: 9
SWITCH ASSEMBLY
€ 24.50
10
0940712402
ref: 10
CLAMP(L:120)
0940712402
€ 3.00
