REAR BRAKE
RM500 1983 (D)

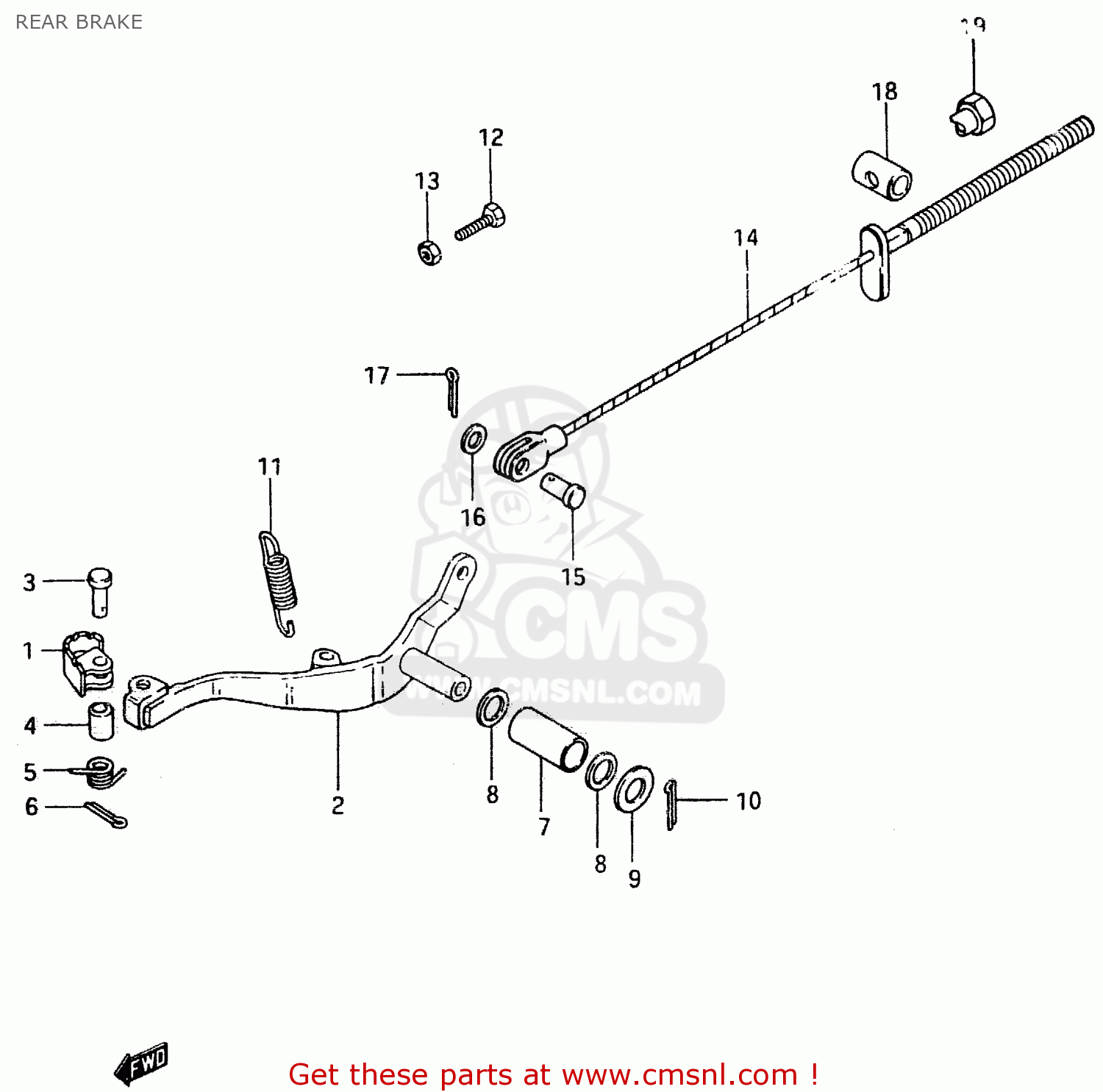

Rear brake diagram RM500 1983 (D)
REAR BRAKE RM500 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
4311014130
ref: 1
PEDAL,BRAKE
€ 6.00
2
4312014230
ref: 2
ARM,BRAKE PEDAL
€ 28.00
3
0920006038
ref: 3
PIN
€ 2.00
4
0918006082
ref: 4
MODEL E
SPACER(6.5X10.5X6.5)
€ 2.50
5
0944411003
ref: 5
MODEL D
SPRING
€ 3.00
5
0944411004
ref: 5
MODEL E
SPRING
€ 3.00
6
0411120158
ref: 6
PIN
€ 1.50
7
0931912022
ref: 7
BUSHING
€ 19.50
8
0928012006
ref: 8
O RING(D:2.2,ID:11.8)
€ 2.50
9
0821112223
ref: 9
WASHER
€ 2.50
10
0411130208
ref: 10
PIN 30X20
€ 1.50
11
0944831024
ref: 11
SPRING
€ 9.00
12
0912806028
ref: 12
SCREW(6X23)
€ 2.00
13
0831011068
ref: 13
NUT
€ 2.50
14
5851014130
ref: 14
MODEL D
CABLE,RR BRAKE
€ 19.00
14
5851014210
ref: 14
MODEL E
CABLE ASSEMBLY,REAR BRAKE
€ 12.00
15
0920005001
ref: 15
PIN(L:17.5)
€ 1.50
16
0832221068
ref: 16
WASHER
€ 2.00
17
0411120208
ref: 17
PIN 20X20
€ 1.50
18
0920913004
ref: 18
PIN
€ 7.50
19
0915006009
ref: 19
NUT (6MM)
€ 3.50
