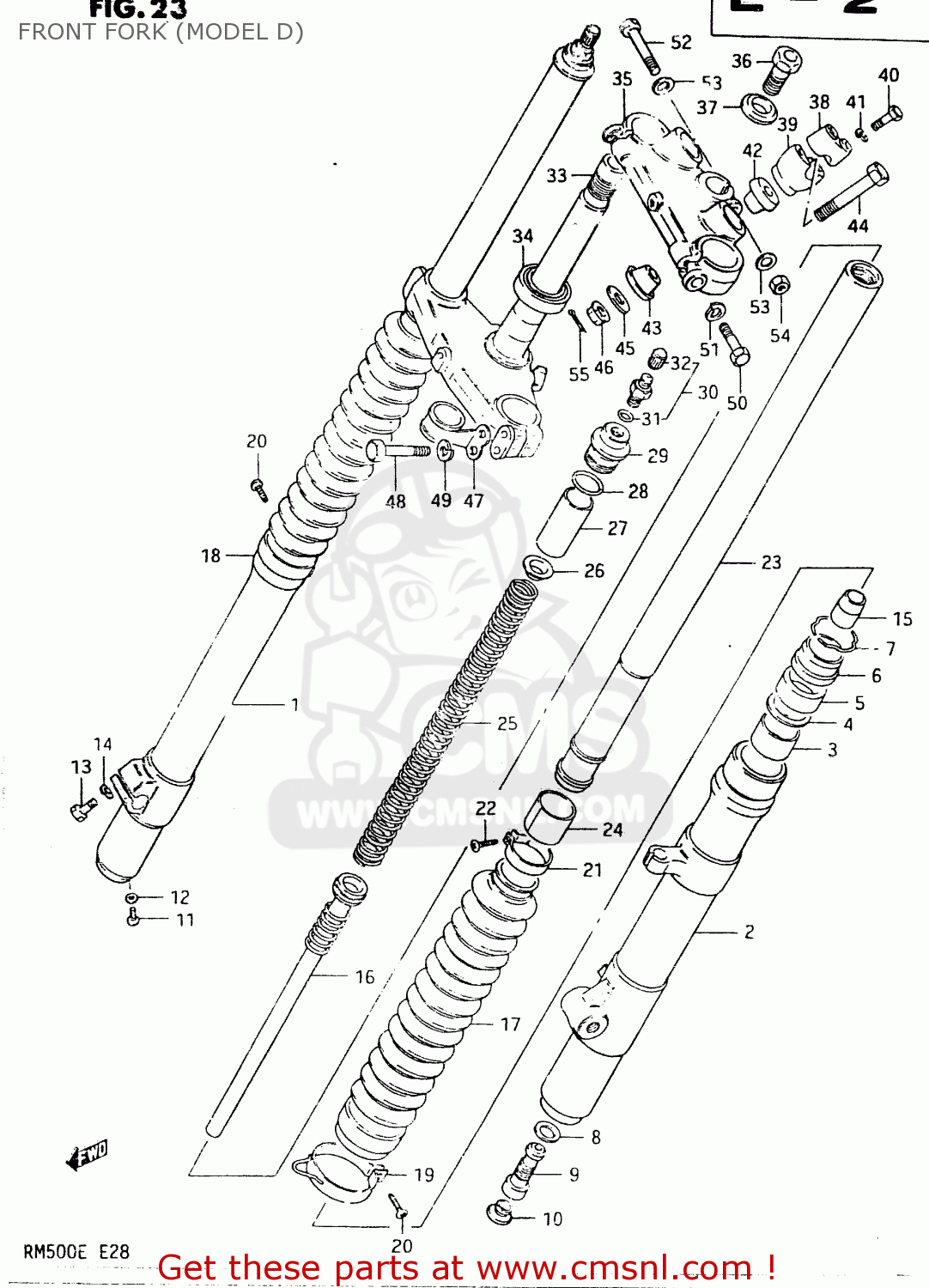

FRONT FORK (MODEL D)

ref

part #

description

quantity

0

5110014330163
ref: 0

DAMPER SET

€ 0.00

1

5113014330163
ref: 1

TUBE,OUTER,RIGHT

€ 0.00

2

5114014330163
ref: 2

TUBE,OUTER,LEFT

€ 230.00

3

5116714200
ref: 3

METAL,SLIDE

€ 13.50

4

5115814200
ref: 4

WASHER

€ 4.00

5

5115314330
ref: 5

SEAL,OIL

€ 11.00

6

5117314330
ref: 6

SEAL,DUST

€ 9.50

7

5115614200
ref: 7

RING,STOPPER

€ 4.50

8

5114814330
ref: 8

GASKET,FORK CYLINDER

€ 2.50

9

5177014330
ref: 9

VALVE,DF

€ 28.50

10

5118914330
ref: 10

CAP,FRONT FORK DF

€ 9.00

11

0211204068
ref: 11

SCREW 4X6

€ 2.00

12

5118303010
ref: 12

GASKET,DRAIN,PLUG (NAS)

€ 3.00

13

0110708308
ref: 13

BOLT (8X30)

€ 2.50

14

0832131088
ref: 14

WASHER,LOCK,8.

€ 2.00

15

5119514330
ref: 15

PIECE,FRONT FORK OIL LOCK

€ 10.50

16

5114614330
ref: 16

CYLINDER,FRONT FORK

€ 70.00

17

5157114200
ref: 17

BOOT,FRONT FORK COVER

€ 44.00

18

5157514330
ref: 18

BAND,BOOT,UPPER

€ 13.50

19

5157414330
ref: 19

BAND,FRONT FORK BOOT

€ 13.50

20

0211204168
ref: 20

SCREW

€ 1.00

21

5157514200
ref: 21

BAND,FRONT FORK BOOT

€ 5.50

22

0211204108
ref: 22

SCREW 4X10

€ 2.00

23

5111014330
ref: 23

TUBE,INNER

€ 225.50

24

5112114200
ref: 24

PISTON

€ 14.00

25

5117114330
ref: 25

SPRING,FRONT FORK

€ 0.00

26

5117214200
ref: 26

GUIDE,SPRING

€ 5.00

27

5117614260
ref: 27

SPACER,FRONT FORK SPRING

€ 4.50

28

5111714200
ref: 28

O RING

€ 2.00

29

5135114330
ref: 29

CAP,FORK INNER TUBE

€ 28.00

30

5116914140
ref: 30

VALVE,FRONT FORK AIR

€ 12.00

31

5111714210
ref: 31

O-RING

€ 2.50

32

5129440400
ref: 32

CAP,VALVE AIR

€ 4.00

33

5141014330291
ref: 33

STEM,STEERING

€ 0.00

34

0926530005
ref: 34

BEARING

€ 49.50

35

5131114330291
ref: 35

HEAD,STEERING STEM

€ 106.50

36

5135141320
ref: 36

BOLT

€ 8.50

37

5135641310
ref: 37

WASHER

€ 6.00

38

5621127200291
ref: 38

HOLDER,HANDLE UPR

€ 13.50

39

5622114330291
ref: 39

HOLDER,HANDLE LWR

€ 25.50

40

0110708358
ref: 40

BOLT

€ 3.50

41

0832131088
ref: 41

WASHER,LOCK,8.

€ 2.00

42

5624114200
ref: 42

DAMPER,UPR

€ 32.00

43

5624214200
ref: 43

DAMPER,LWR

€ 21.50

44

5132114200
ref: 44

BOLT,HANDLE HOLDER

€ 6.50

45

5135640400
ref: 45

WASHER,HANDLEBAR HOLDER

€ 2.00

46

0831921108
ref: 46

NUT

€ 3.00

47

5862114200
ref: 47

GUIDE,CABLE

€ 4.00

48

0110708408
ref: 48

BOLT 8X40

€ 3.00

49

0832131088
ref: 49

WASHER,LOCK,8.

€ 2.00

50

0110710458
ref: 50

BOLT

€ 2.00

51

0832131088
ref: 51

WASHER,LOCK,8.

€ 2.00

52

0110708508
ref: 52

BOLT 8X50

€ 3.00

53

0832221088
ref: 53

WASHER

€ 2.00

54

0831012088
ref: 54

NUT

€ 2.00

55

0411120208
ref: 55

PIN 20X20

€ 1.50
