FRAME COVER
RM500 1983 (D)

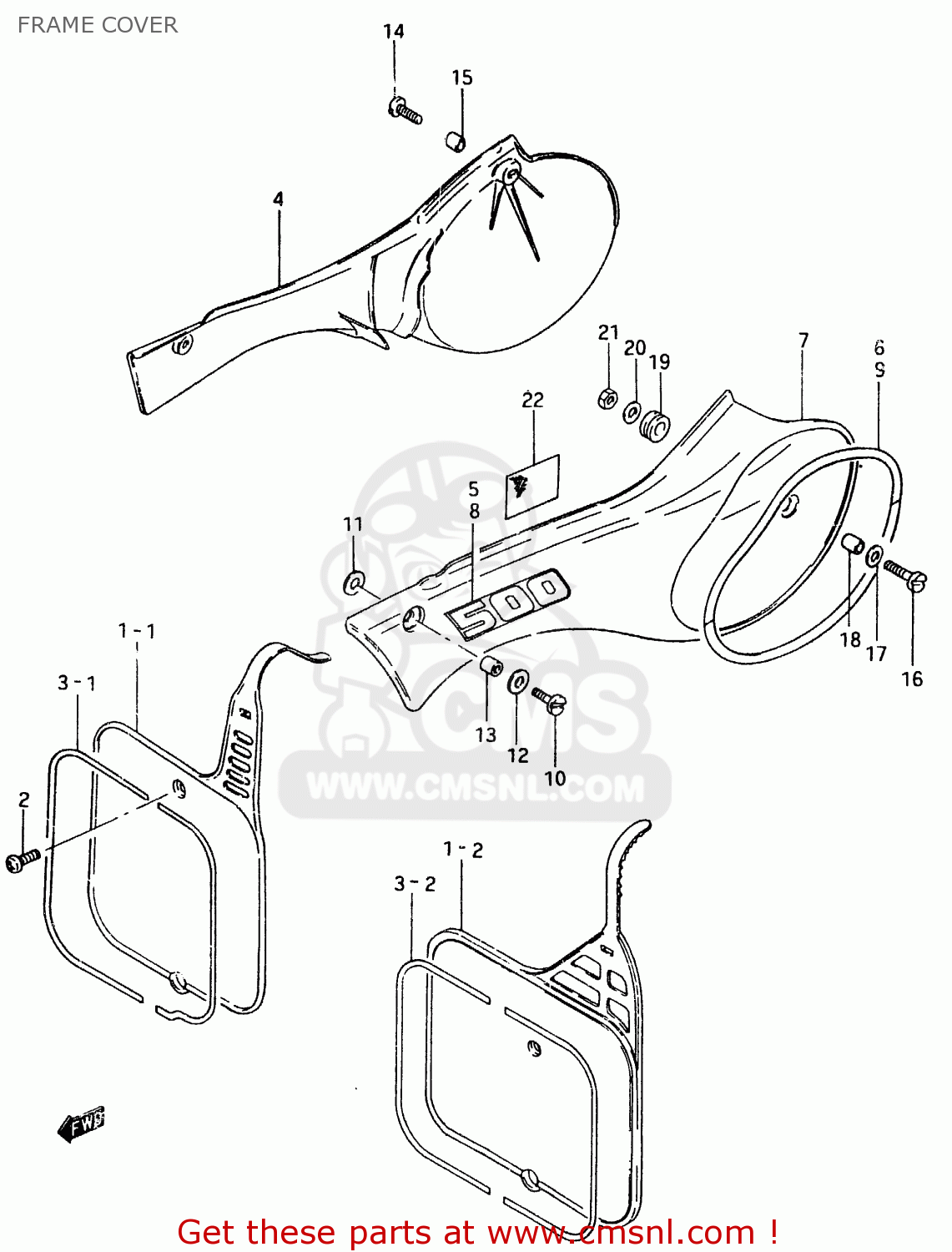

Frame cover diagram RM500 1983 (D)
FRAME COVER RM500 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
9491114300
ref: 1
MODEL D
PLATE,NUMBER,FRONT
€ 45.00
2
9491114501163
ref: 2
MODEL E
PLATE,NUMBER,FRONT
€ 45.00
3
0214205167
ref: 3
SCREW
€ 1.50
4
6825014200
ref: 4
MODEL D
TAPE,SET
€ 0.00
5
6825014210291
ref: 5
MODEL E
TAPE,SET
€ 0.00
6
4711114120163
ref: 6
COVER,FRAME,R(YELLOW)
€ 83.50
7
681311423074H
ref: 7
EMBLEM
€ 5.00
8
6813014220
ref: 8
TAPE SET,FRAME COVER
€ 7.50
9
4721114120163
ref: 9
COVER,FRAME,L(YELLOW)
€ 52.00
10
681411423074H
ref: 10
MODEL D
EMBLEM,FRAME COVER
€ 4.00
11
6814014220
ref: 11
TAPE SET,FRAME COVER,RIGHT
€ 0.00
12
0912306026
ref: 12
SCREW(6X14)
€ 4.50
13
9492714110
ref: 13
WASHER, REAR
€ 2.00
14
0918006098
ref: 14
SPACER (6.1X8X3.5)
€ 3.00
15
0912306026
ref: 15
SCREW(6X14)
€ 4.50
16
0918006098
ref: 16
SPACER (6.1X8X3.5)
€ 3.00
17
0912306027
ref: 17
SCREW(6X20)
€ 2.00
18
0916006004
ref: 18
WASHER (6.5X24X1.6)
€ 1.50
19
0918006011
ref: 19
SPACER (6.1X9X9)
€ 2.00
20
0932008018
ref: 20
CUSHION
€ 4.00
21
9492714110
ref: 21
WASHER, REAR
€ 2.00
22
0831022068
ref: 22
NUT 6MM
€ 2.50
23
4712214201
ref: 23
HEAT SHIELD,FRAME COVER
€ 12.50
