CUSHION LEVER (MODEL E)
RM500 1983 (D)

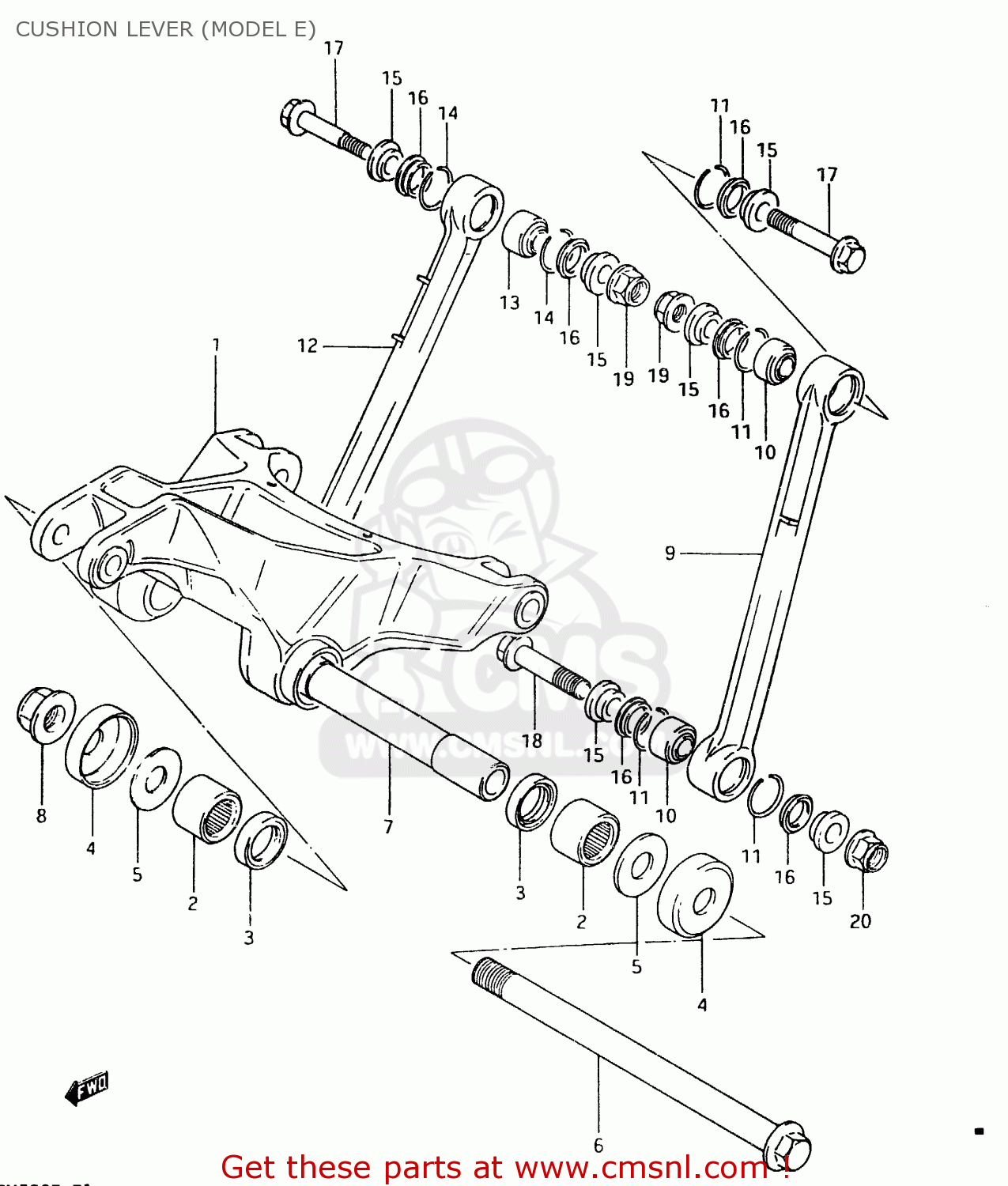

Cushion lever (model e) diagram RM500 1983 (D)
CUSHION LEVER (MODEL E) RM500 1983 (D)
×
prices are in EUR
ref
part #
description
quantity
1
6260114870
ref: 1
LEVER SET,REAR CUSHION
€ 221.50
2
0926320053
ref: 2
BEARING(20X27X25)
€ 15.50
3
6262414500
ref: 3
SEAL,CUSHION LEVER DUST
€ 3.50
4
6126245002
ref: 4
CVR,RR SWGARM DUST SEAL(OD:40)
€ 4.50
5
0821114343
ref: 5
WASHER
€ 3.00
6
6262114600
ref: 6
SHAFT,REAR CUSHION LEVER
€ 19.50
7
6262314600
ref: 7
SPACER,REAR CUSHION LEVER
€ 31.50
8
0915914017
ref: 8
NUT
€ 9.00
9
6260114880
ref: 9
LEVER SET,REAR CUSHION
€ 87.00
10
0926910005
ref: 10
BEARING(10X21X13)
€ 54.00
11
6265714500
ref: 11
RING,BEARING STOPPER
€ 1.00
12
6260114890
ref: 12
LEVER SET,REAR CUSHION
€ 87.00
13
0926910005
ref: 13
BEARING(10X21X13)
€ 54.00
14
6265714500
ref: 14
RING,BEARING STOPPER
€ 1.00
15
6231614501
ref: 15
SPACER,REAR CUSHION ROD
€ 7.50
16
6264714500
ref: 16
SEAL,RR CUSHION ROD DUST
€ 2.50
17
6264814200
ref: 17
BOLT,REAR CUSHION ROD
€ 3.00
18
6265814500
ref: 18
BOLT,RR CUSHION ROD LWR
€ 3.50
19
0831931088
ref: 19
NUT
€ 2.50
20
0831931108
ref: 20
NUT
€ 3.00
