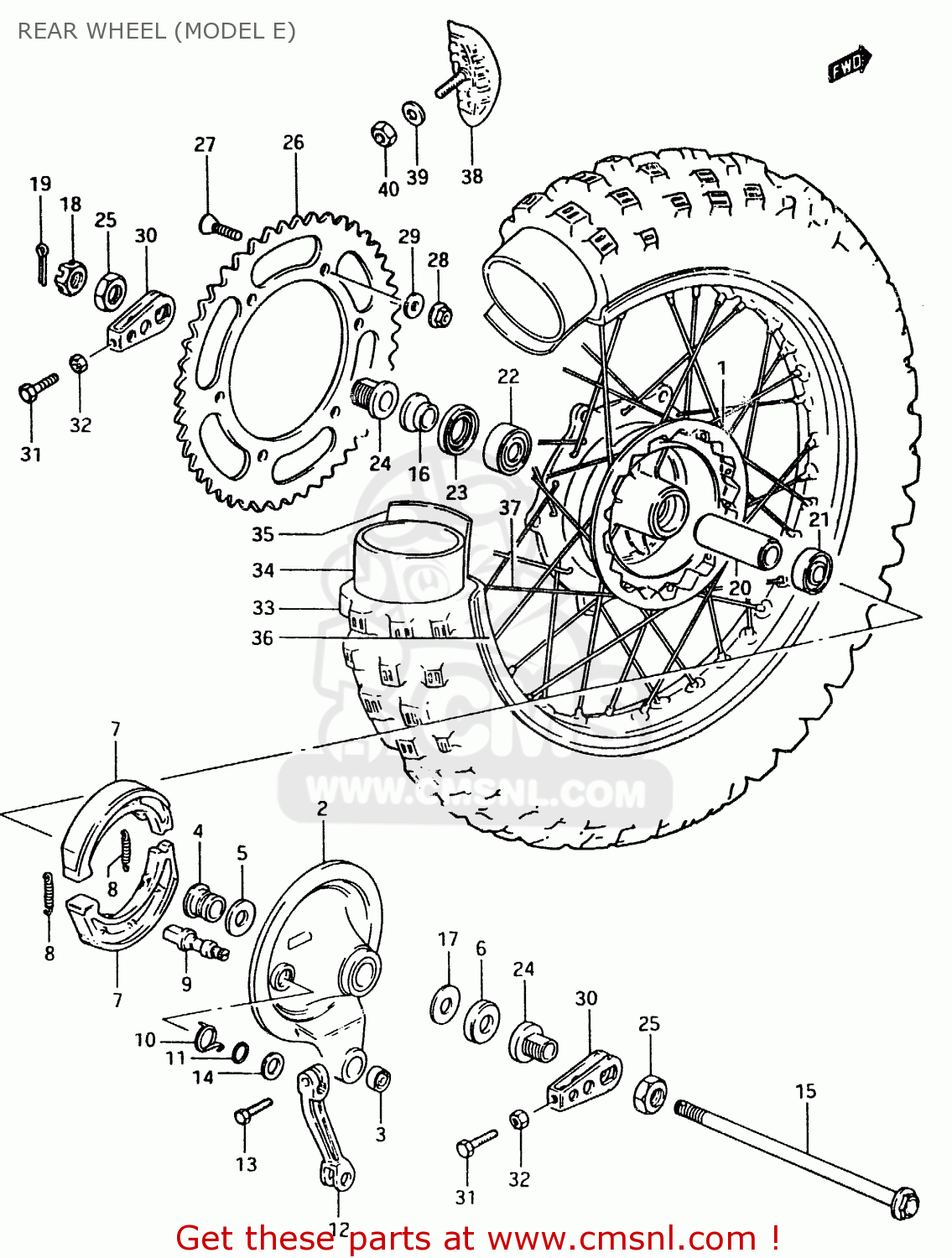

REAR WHEEL (MODEL E)

ref

part #

description

quantity

1

6411014240
ref: 1

DRUM,REAR HUB

€ 0.00

2

6420014860
ref: 2

PANEL SET

€ 211.00

3

6435240401
ref: 3

SPHERICAL BRNG,TORQUE LINK

€ 69.50

4

6421314600
ref: 4

SPACER,REAR HUB PANEL

€ 28.50

5

0928524001
ref: 5

SEAL,OIL(24X31X5)

€ 4.50

6

6484537200
ref: 6

CVR,RR BRAKE AHR PNL DUST SEAL

€ 12.00

7

5441014100
ref: 7

SHOE,BRAKE

€ 21.50

8

6443014600
ref: 8

SPRING,BRAKE SHOE

€ 4.00

9

5444114101
ref: 9

CAM,FR BRAKE

€ 16.00

10

0944830007
ref: 10

SPRING

€ 19.00

11

0928012001
ref: 11

O RING(D:2.5,ID:11.4)

€ 2.50

12

6445114240
ref: 12

LEVER,REAR BRAKE CAM

€ 62.50

13

0110706258
ref: 13

BOLT

€ 2.00

14

0916012011
ref: 14

WASHER(12.5X20X1)

€ 1.50

15

6471114600
ref: 15

AXLE,REAR

€ 47.00

16

6475114240
ref: 16

SPACER,REAR AXLE,LEFT

€ 8.00

17

0821117361
ref: 17

WASHER

€ 2.00

18

0831441168
ref: 18

NUT

€ 4.50

19

0411140308
ref: 19

PIN,COTTER

€ 1.50

20

6473014240
ref: 20

SPACER,REAR HUB BEARING

€ 13.50

21

0812362037
ref: 21

BEARING

€ 24.50

22

0926717001
ref: 22

BALL BEARING 17X47X22

€ 47.50

23

0928425003
ref: 23

OIL SEAL (25X47X7.5)

€ 8.00

24

6478140600
ref: 24

SPACER,CHAIN ADJUSTER

€ 18.50

25

0914024007
ref: 25

NUT

€ 4.50

26

6451114220
ref: 26

SPROCKET,REAR (NT:46)(AL)

€ 126.00

27

0912008009
ref: 27

SCREW(8X40)

€ 3.00

28

0831931088
ref: 28

NUT

€ 2.50

29

0832211088
ref: 29

WASHER

€ 2.00

30

6141040600
ref: 30

ADJUSTER,CHAIN

€ 18.00

31

0910408006
ref: 31

BOLT

€ 3.00

32

0831012088
ref: 32

NUT

€ 2.00

33

6510014300
ref: 33
IRC

TIRE 140/80-18

€ 0.00

34

6520014600
ref: 34

TUBE ASSEMBLY,WHEEL,INNER

€ 0.00

35

6526133030
ref: 35

PROTECTOR,INNER TUBE

€ 5.50

36

6531114240
ref: 36

RIM,REAR WHEEL (2.50X18)(

€ 276.00

37

6532014230
ref: 37

SPOKE SET,REAR WHEEL

€ 41.00

38

6527040420
ref: 38

STOPPER,BEAD

€ 70.50

39

0832211088
ref: 39

WASHER

€ 2.00

40

0831012088
ref: 40

NUT

€ 2.00
