CAM SHAFT - VALVE
SP250 1983 (D) USA (E03)

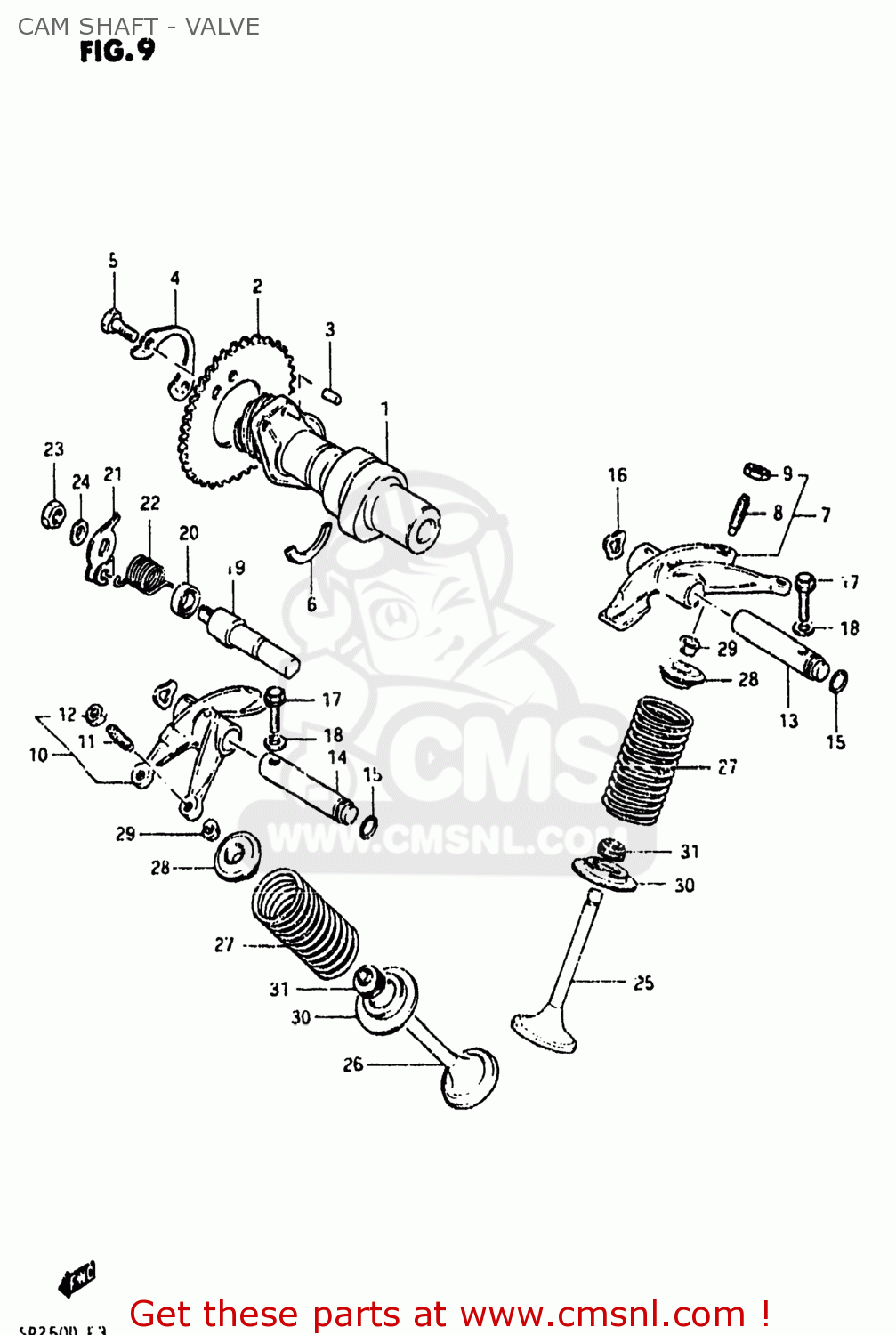

Cam shaft - valve diagram SP250 1983 (D) USA (E03)
CAM SHAFT - VALVE SP250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1271138200
ref: 1
12711-38212
CAMSHAFT
€ 440.50
2
1274137400
ref: 2
SPROCKET,CAMSHAFT(NT:42)
€ 34.50
3
0621105103
ref: 3
04221-05109
PIN
€ 1.50
4
1274744000
ref: 4
12747-44001
WASHER,CAM CHAIN SPROCKET
€ 2.00
5
0911106027
ref: 5
BOLT(6X12.5)
€ 1.50
6
0939025003
ref: 6
C RING
€ 2.50
7
1284038200
ref: 7
12840-38201
ARM,VALVE ROCKER
€ 117.00
8
1284249210
ref: 8
12842-49201
SCREW,TAPPET ADJUSTING
€ 5.50
9
1284349210
ref: 9
12843-27A00
NUT,ADJUSTING
€ 3.00
10
1285038200
ref: 10
12850-38201
ARM,VALVE ROCKER,EXHAUST
€ 117.00
11
1284249210
ref: 11
12842-49201
SCREW,TAPPET ADJUSTING
€ 5.50
12
1284349210
ref: 12
12843-27A00
NUT,ADJUSTING
€ 3.00
13
1286138200
ref: 13
SHAFT,VLV ROCKER ARM IN(L:91.5
€ 26.50
14
1287138200
ref: 14
SHAFT,VLV ROCKER ARM EXH(L:76)
€ 26.50
15
0928009004
ref: 15
09280-09005
O-RING
€ 4.00
16
0916412018
ref: 16
WASHER
€ 1.50
17-1
0151706308
ref: 17-1
01550-06307
BOLT
€ 2.00
17-2
0151706305
ref: 17-2
01550-0630A
BOLT 6X30
€ 2.50
18
0916806009
ref: 18
09168-06023
GASKET (NAS)
€ 2.00
19
1294137100
ref: 19
12941-37103
SHAFT,DECOMPRESSION
€ 63.00
20
0928410005
ref: 20
09282-10014
OIL SEAL
€ 6.50
21-1
1294237110
ref: 21-1
LEVER,DECOMPRESSION SHAFT
€ 3.00
21-2
1294237100
ref: 21-2
12942-37101
LEVER,DECOMPRESSION SHAFT
€ 4.50
22-1
0944817015
ref: 22-1
09448-17014
SPRING
€ 21.50
22-2
0944817014
ref: 22-2
SPRING
€ 21.50
23-1
0831022088
ref: 23-1
08310-00087
NUT 8MM
€ 2.00
23-2
0831022085
ref: 23-2
09140-08021
NUT 8MM
€ 2.00
24-1
0832211088
ref: 24-1
08322-01087
WASHER
€ 2.00
24-2
0832211085
ref: 24-2
08322-0108A
WASHER,8.5X16X
€ 1.50
25
1291138200
ref: 25
VALVE,INTAKE
€ 81.00
26
1291238200
ref: 26
12912-38201
VALVE,EXHAUST
€ 85.50
27-1
1292138210
ref: 27-1
12921-38211
SPRING,VALVE
€ 9.00
27-2
1292138211
ref: 27-2
SPRING,VALVE
€ 9.00
28
1293149200
ref: 28
12931-49201
RETAINER,VALVE SPRING
€ 5.50
29
1293249200
ref: 29
COTTER VALVE
€ 2.50
30
1293338200
ref: 30
SEAT,VALVE SPRING
€ 5.50
31
0928905003
ref: 31
09289-05015
OIL SEAL
€ 6.50
