WIRING HARNESS
SP250 1983 (D) USA (E03)

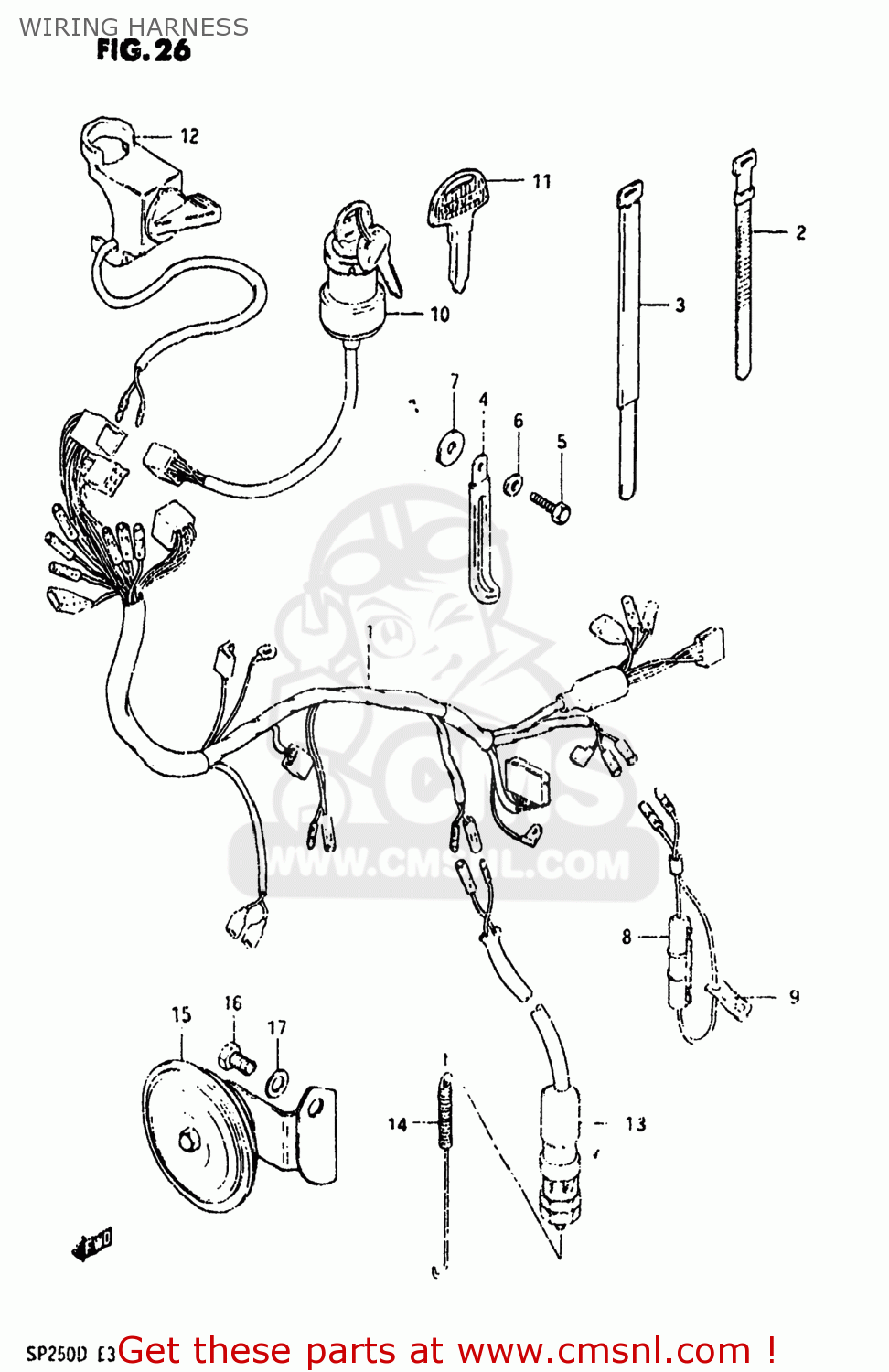

Wiring harness diagram SP250 1983 (D) USA (E03)
WIRING HARNESS SP250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661038210
ref: 1
36610-38211
HARNESS,WIRING
€ 0.00
2
0940712402
ref: 2
CLAMP(L:120)
€ 3.00
3-1
0940711301
ref: 3-1
09407-18301
CLAMP L:110
€ 6.00
3-2
0940718301
ref: 3-2
CLAMP
€ 6.00
3-3
0940725301
ref: 3-3
CLAMP(L:250)
€ 4.50
4-1
0940406401
ref: 4-1
09404-06432
CLAMP L:35
€ 2.50
4-2
0940406412
ref: 4-2
09404-06432
CLAMP
€ 2.50
4-3
0940408414
ref: 4-3
09404-08420
CLAMP
€ 3.50
5
0110706168
ref: 5
01500-06167
BOLT, UPPER
€ 3.00
6
0832221068
ref: 6
08322-01067
WASHER
€ 2.00
7
0916006007
ref: 7
09160-06084
WASHER
€ 2.00
8
3674015010
ref: 8
36740-15011
BOX ASSEMBLY,FUSE
€ 11.00
9
0948115001
ref: 9
FUSE(15A)
€ 3.00
10
3711037171
ref: 10
37110-37172
SWITCH ASSEMBLY,IGNITION
€ 81.00
11
3714519710
ref: 11
37146-49300
KEY,BLANK
€ 13.00
12
3783038200
ref: 12
SWITCH ASSY,ENGINE STOP
€ 72.00
13
3774004571
ref: 13
37740-48071
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
14
0944306019
ref: 14
SPRING
€ 3.50
15
3850038211
ref: 15
HORN ASSEMBLY
€ 0.00
16
0110706108
ref: 16
01500-06107
BOLT
€ 2.00
17
0832221068
ref: 17
08322-01067
WASHER
€ 2.00
